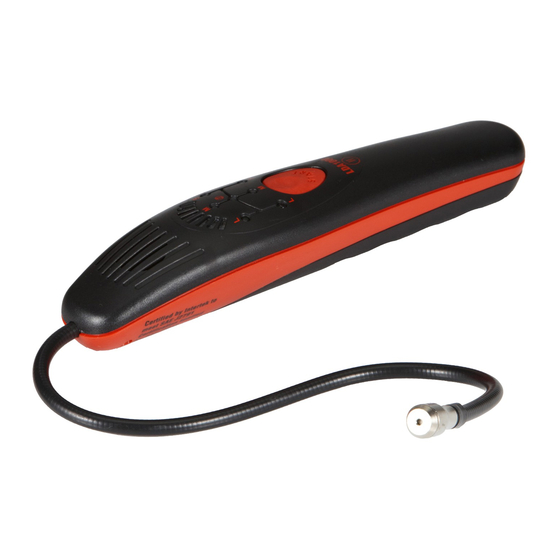

CPS Pro-Set ® LDA1000H Operation Manual

CPS Pro-Set ® LDA1000H Operation Manual

Refrigerant leak detector
Hide thumbs Also See for Pro-Set ® LDA1000H:

Advertisement

Pro-Set
LDA1000H
®
Refrigerant Leak Detector
Patent Pending
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro-Set ® LDA1000H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CPS Pro-Set ® LDA1000H

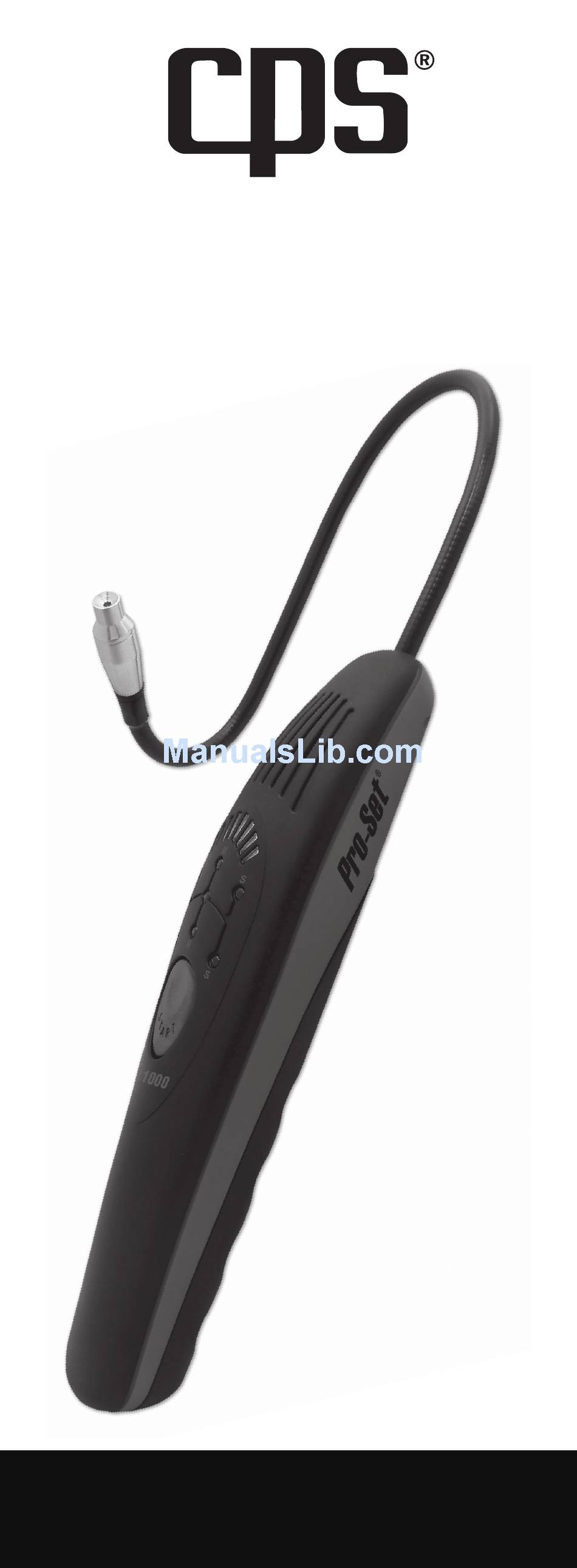

  • Page 1 Pro-Set LDA1000H ® Refrigerant Leak Detector Patent Pending OPERATION MANUAL...
  • Page 2: Product View

    GENERAL INFORMATION Table of Contents General Information › Introduction › LDA1000H Specifications › LDA1000H Overview Operation › Using the LDA1000H › Searching for Leaks › Automotive Chemical Sensitivity Chart › Maintenance › Sensor Replacement Diagram Warranty Introduction Flexible metal probe: 15" (380mm) long, .25"...
  • Page 3 GENERAL INFORMATION LDA1000H Specifications Sensor: State of the art E_MOS™ technology. Gases: Sensitive to all types of refrigerants: HFC’s, CFC’s, HCFC’s as well as all halogenated vapors and gases such as SF6. Instrument factory calibrated to meet the requirements of SAEJ2791 and J2913 Calibration: While moving 3"/sec.
  • Page 4 GENERAL INFORMATION LDA1000H Overview The LDA1000H is the first automotive electronic leak detector utilizing E_MOS™ sensor technology. Following the guidelines of the latest SAE standard specifications for leak detectors, the LDA1000H offers the user two detection modes: one optimized for R-134a and the other for HFO-1234yf. Each mode has three sensitivity settings according to the requirements of the SAE standards.
  • Page 5 OPERATION Using the LDA1000H Turning the instrument ON: Press the red START button once to turn the unit ON. The instrument initiates a sensor self-cleaning and conditioning cycle which lasts for 35 seconds. During that time, the bar graph indicator lights scan from left to right. When the audible alarm turns on the instrument is ready to use.
  • Page 6 OPERATION Searching For Leaks The LDA1000H features automatic tuning out of background contamination and needs only to be turned on to begin leak searching. All necessary sensitivity and calibration settings are selected by the unit’s advanced control software providing optimal leak finding performance under any condition. It is recommended to follow the guidelines stated in SAE J1628 latest release.
  • Page 7 OPERATION 8. When testing for a leak at the compressor, move the probe along the compressor body joints, along the pressure relief valve and any switches, the all around the compressor shaft seal area. Shaft seal normally leak during compressor operation so it may be very difficult to ascertain if a leak exists because the testing with an electronic leak detector is performed with the system off.
  • Page 8 OPERATION Maintenance With a sensor life of more than 500 hours and a battery life of over 50 hours, very little maintenance is required to keep the LDA1000H in top operating conditions. Below are the proper procedures to follow when changing batteries and sensors. Low battery indication: When the batteries reach approximately 10% of capacity, the green LED next to the symbol (...
  • Page 9 OPERATION Sensor Replacement Diagram Tip Housing Sensor Filter E_MOS Sensor Recommended Sensor Tab Use: tweezers or needle nose pilers to extract the sensor. Housing Slot Sensor Housing...
  • Page 10 All products being returned for warranty repair must be accompanied by an original bill of sale and customer contact information. CPS Products, Inc. HEADQUARTERS 1010 East 31st Street, Hialeah, Florida 33013, USA Tel: 305-687-4121, 1-800-277-3808, Fax: 305-687-3743 e-mail: info@cpsproducts.com...
  • Page 11 NOTES...
  • Page 12 www.cpsproducts.com #73-358...
