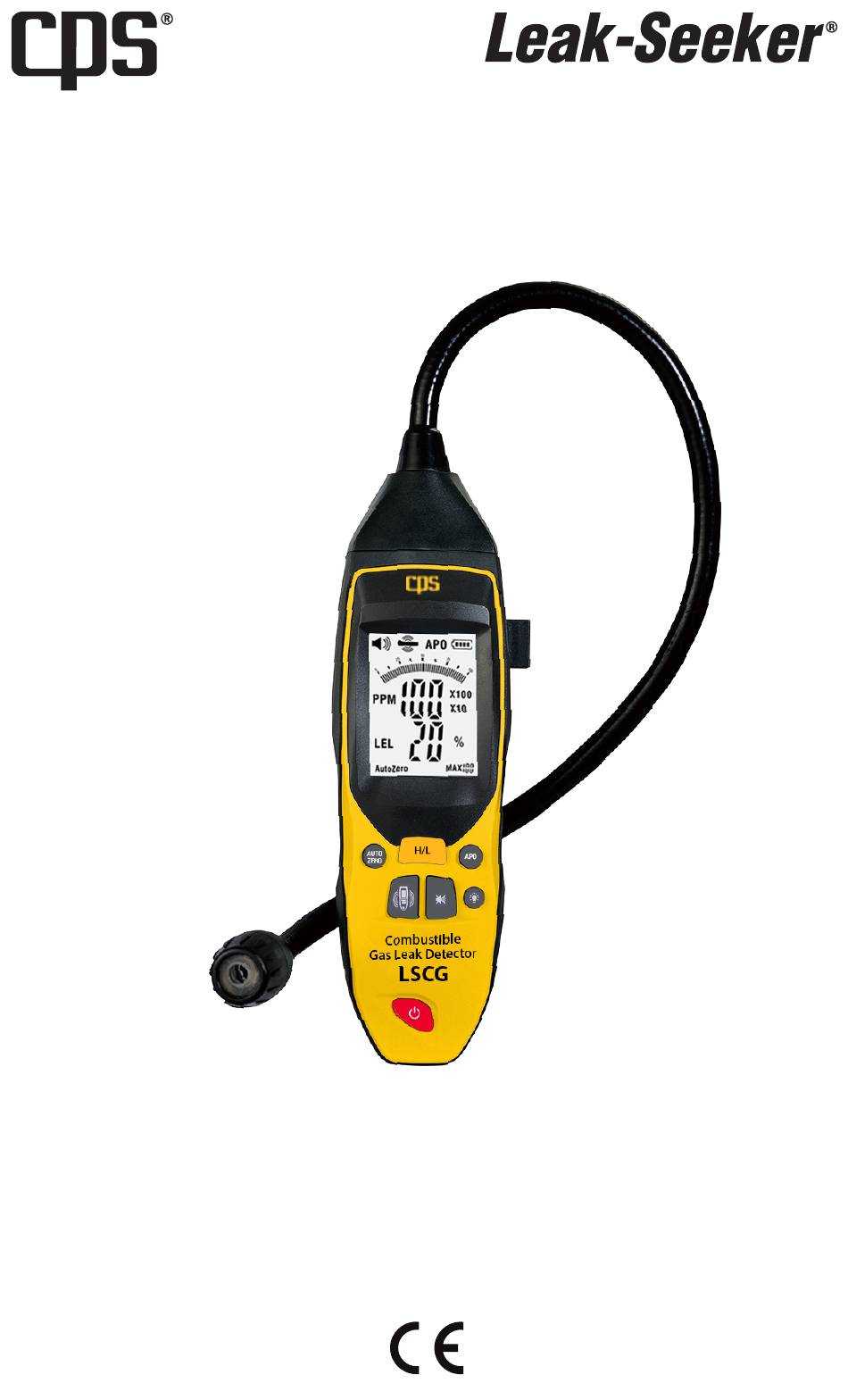

Combustible Gas Leak Detector
Model: LSCG
QUICK START GUIDE (English)
Latest updates: www.cpsproducts.com
Please Read & Understand This Guide Before Use
Important Safety Information Inside.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leak-Seeker LSCG and is the answer not in the manual?

Questions and answers

Summary of Contents for CPS Leak-Seeker LSCG

  • Page 1 Combustible Gas Leak Detector Model: LSCG QUICK START GUIDE (English) Latest updates: www.cpsproducts.com Please Read & Understand This Guide Before Use Important Safety Information Inside.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 8. LSCG LAYOUT 1. SAFETY SYMBOLS 9. LCD DISPLAY 2. GENERAL SAFETY RULES Personal Safety 10. CHARGING THE Work Area Safety LITHIUM-ION BATTERY Electrical Safety 11. INITIAL PREPARATION Equipment Use & Care 12. QUICK START GUIDE 11-13 3.
  • Page 3: Safety Symbols

    1. SAFETY SYMBOLS In this Quick Start Guide and on the Combustible Gas Leak Detector, safety symbols and signal words are used to communicate important safety information. WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 4: General Safety Rules

    2. GENERAL SAFETY RULES Personal Safety DANGER 1. Stay Alert. Do not use equipment when tired or under the influence of drugs, alcohol, or medication. Inattention while operating equipment may result in serious personal injury. 2. Do NOT overreach. Always maintain proper footing and balance. 3.
  • Page 5: Specific Safety Information Combustible Gas Leak

    NOT be replaced with a disposable or any other type of battery. 6. Use only the provided, original equipment battery charging plug and cord with this device. Accessories suitable for one device may become hazardous if used with other equipment. 7.
  • Page 6: Agency Approvals

    WARNING WARNING: This section contains important safety information specific to this device. To reduce the risk of fire, explosion, or other serious personal injury, please read, follow, and understand these precautions before using this LSCG Combustible Gas Leak Detector. WARNING: Start-up of this device in an area containing combustible gas could result in incorrect calibration and lower than actual readings.
  • Page 7: Combustible Gases

    Maintenance, Factory Technicians, and other Professional Trades that require ease-of-use features such as a large lighted display with digital information to more quickly pinpoint combustible gas leaks, and at lower concentrations vs. conventional analog (“Lighted LED”) leak detectors. The LSCG is for use in residential, commercial, and light industrial environments to quickly identify the presence of and isolate the location of at least 30 different combustible gases (see list on page 8-9) that have methane as a component.
  • Page 8: Included Items

    where the audible alarm might be difficult to hear. Vibration frequency increases as gas concentrations increase. 3. “PPM SPEEDOMETER” (ON THE DISPLAY) At the top of the LCD display, there is an innovative analog “speedometer” display. If no gas is detected, only a “0” will appear at the top LEFT of the speedometer.
  • Page 9: Lscg Layout

    Hexane, Hydrogen, Isopropanol, Kerosene, Sulfide, Isobutane, Isopropyl Alcohol, MEK, Methanol, Mineral Spirits, Naptha, Paint Thinners, Pa- raxylene, Toluene, Xylene. 8. LSCG LAYOUT 9. LCD DISPLAY...
  • Page 10: Charging The Lithium-Ion Battery

    10. CHARGING THE LITHIUM-ION BATTERY WARNING DO NOT CHARGE THE ENCLOSED LITHIUM BATTERY IN THE PRESENCE OF COMBUSTIBLE GAS. Set up and operate the gas detector according to these procedures to reduce the risk of fire, explosions and serious injury and incorrect measurements.
  • Page 11: Quick Start Guide

    3. If replacing the sensor, ensure the LSCG is turned OFF. This preventive safety measure can reduce personal injury and instrument damage problems. 4. Use only accessories recommended or supplied by CPS Products, Inc. for this device. Accessories suitable for one brand of equipment may become hazardous when used with other equipment.
  • Page 12 a. The LSCG will beep and vibrate once. 3. LSCG WILL AUTOMATICALLY CALIBRATE & START UP a. Display will Count Backwards From 40 Seconds- During this time, the gas sensor will heat up and the device will automatically calibrate. b. After 40 Seconds- LSCG will beep and vibrate once. The display will show: i.
  • Page 13: Appendix

    ii. “X100” (High Concentration Scale (100 To 10,000 PPM))-To change to this scale, press the YELLOW “H/L Key”. Any value shown should be multiplied by 100. 6. TEST THE LSCG a. In an area known free of combustible gas, test the LSCG to confirm it is working properly.
  • Page 14: Non Explosive / Explosive

    its combustion in air is its LOWER EXPLOSIVE LIMIT (or “LEL”). And, an LEL varies from gas to gas, but most flammable gases are usually less than 5% by volume (but nearly never greater than 20%). See the full LSCG Owner’s Manual at cpsproducts.com for more information. 2 .
  • Page 15: Explosive Range (Defined)

    “rich” to burn. 6. TROUBLESHOOTING GUIDE, REPLACEMENT PARTS, WARRANTY Please see the LSCG Owner’s Manual on the CPS website at cpsproducts.com 7. REGISTRATION To register this device, please go to www.cpsproducts.com/hvac-warranty- registration/. Please contact us if you have any technical issues during...
  • Page 16 CPS LOCATIONS CPS PRODUCTS, INC. U.S.A. (World Headquarters) CPS PRODUCTS N.V 3600 Enterprise Way, Miramar, Florida 33025, USA Krijgsbaan 241, 2070 Zwijndrecht, Belgium Tel: 305.687.4121 Toll Free: Tel / 1.800.277.3808 Tel: 323.281.3040 Fax: 305.687.3743 E-mail: info@cpsproducts.be E-mail: info@cpsproducts.com CPS PRODUCTS CANADA LTD.
