Summary of Contents for CPS TEMP-SEEKER TM360A

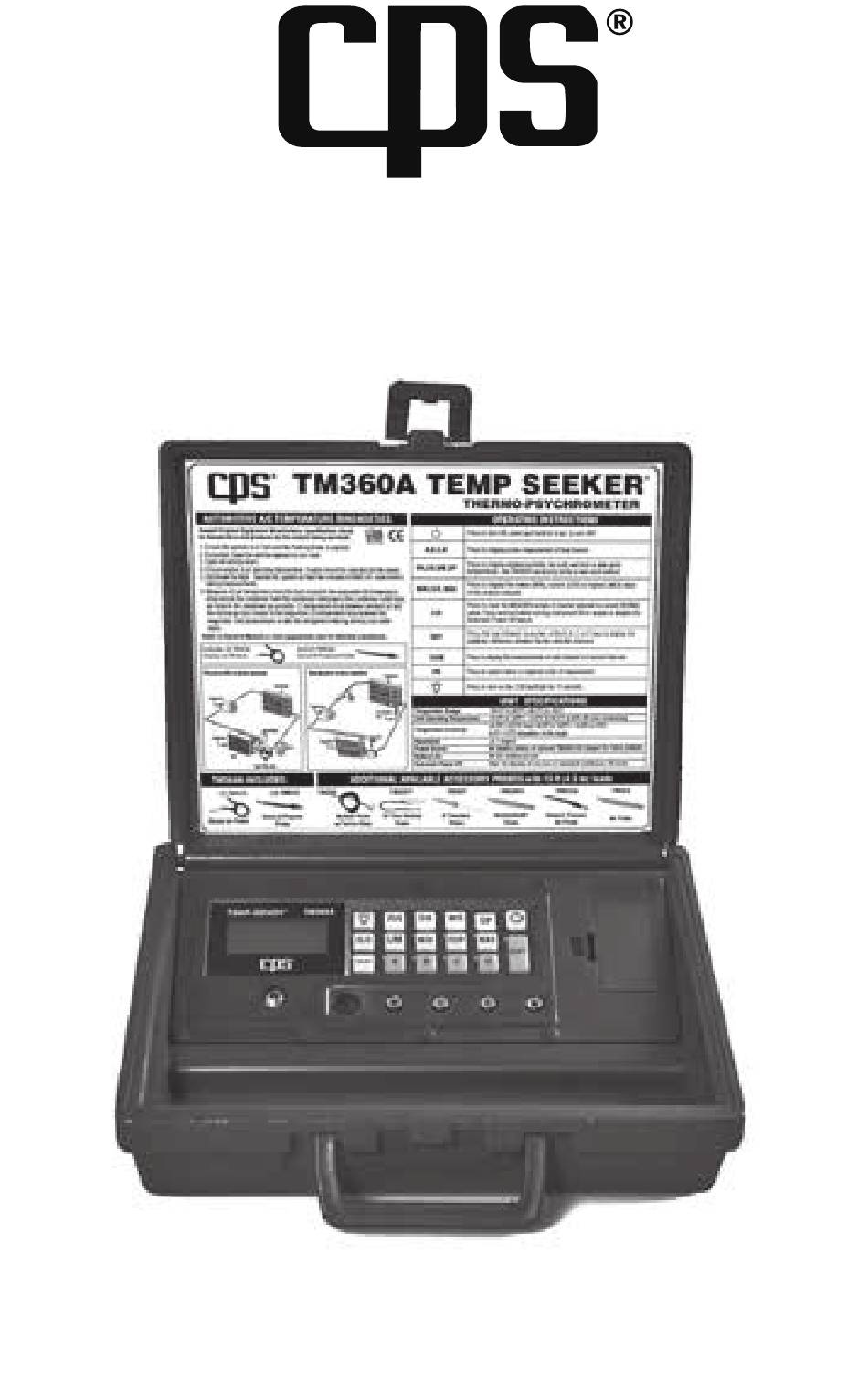

- Page 1 TM360A AUTOMOTIVE TEMP-SEEKER ® Precision Thermo-Psychrometer Multi-Channel Air Conditioning Humidity and Temperature Drop Tester OWNER’S MANUAL (English) cpsproducts.com...
-
Page 2: Table Of Contents
Warranty ..........20 OVERVIEW Congratulations on your purchase of one of the best precision automotive AC diagnosis, testing and repair tools available! CPS Products TM360A TEMP-SEEKER is a high resolution thermo- ® psychrometer adaptable to accommodate all your temperature, humidity, dry/wet bulb and dew point measurements. -
Page 3: Specifications
SPECIFICATIONS Resolution ±0.1˚F or ˚C ±0.4˚F / ±0.2˚C from 14.0 to 158˚F / -10.0 to 70˚C; 0.6˚F / 0.3˚C Temperature Accuracy elsewhere in the range RH Range 0 to 100%RH RH Accuracy (TMX3RH) ±1.8%RH from 10 to 90%RH; ± 3% elsewhere in the range ±1.2% of reading ±... -
Page 4: Operation
OPERATION... - Page 5 OPERATION FUNCTION Press to turn ON, press and hold for 3 sec. to turn OFF A, B, C, D Press to display probe measurement of that channel Press to display relative humidity, dry bulb, wet bulb or dew RH,DB,WB,DP point temperatures. Use TMX3RH accessory probe or wet-sock method Press to display the lowest (MIN), current (CUR) or highest MIN,CUR,MAX...
- Page 6 Turning the instrument ON and Off: Press the key to turn the instrument on; the LCD will initially display all characters, the software version used (CPS 110 or similar) and whether the automatic power off feature is enabled or not (APO ON or APO OFF). The instrument will then default to displaying the measurement read in channel A.
-
Page 7: Tmx3Rh Method
TMX3RH METHOD The TMX3RH is a high accuracy silicon device for the measurement of relative humidity and dry bulb temperature. Both sensors are integrated in one small silicon chip, factory calibrated and conditioned to give accurate and fast response. The TM360A uses this accurate data to compute the wet bulb and the dew point temperatures using the latest software algorithms. -
Page 8: Psychrometric Chart
PSYCHROMETRIC CHART Psychrometry is the science which studies the properties of moist air. A psychrometric chart graphically illustrates the relationship between air temperature and relative humidity as well as other properties. Air Temperature is a measure of the heat content of air. Three different temperature measurements are used in the psychrometric chart. -
Page 9: Automotive Overview
• DIAGNOSTIC FLOW CHARTS (DFCs) CPS has designed this manual to allow you, a professional repair technician, to use the above mentioned DTRVWs along with various DFCs presented herein, to achieve the highest level of automotive AC repair success possible. Use of this manual together with your TM360A TEMP-SEEKER®... -
Page 10: Automotive Ac Temperature Diagnostic
AUTOMOTIVE AIR CONDITIONING TEMPERATURE DIAGNOSTICS When using the diagnostic flow charts (DFC) follow these procedures: • Ensure the vehicle is properly secured in “Park” and the “Parking Brake” is properly applied. • If possible, have the vehicle exposed to sun-load. •... -
Page 11: Technician Operating Tips
TECHNICIAN OPERATING TIPS Experience has shown that accurate temperature readings can be affected by several factors. Listed below are some of the conditions you may encounter when performing temperature drop tests. The pressure that you apply to a temperature probe can affect the reading by as much as 20°F (-6°C). -
Page 12: Sample Performance Charts
SAMPLE PERFORMANCE CHARTS Temperature/Humidity Pressure Chart Temperature Humidity Low Pressure High Pressure 55-65°F 0-100% 151-220 kPa (22-32 psi) 537-937 kPa (78-136 psi) (13-18°C) Below 40% 151-248 kPa (22-36 psi) 689-1109 kPa (100-161 psi) 66-75°F (19-24°C) Above 40% 151-282 kPa (22-41 psi) 757-1178 kPa (110-171 psi) Below 35% 186-289 kPa (27-42 psi) -
Page 13: Standard Orifice Tube System Test
STANDARD OT & TXV SYSTEM TEST Refer to figure D-1, Below • Hook up TMX3C Clamp-on probe or TMX2S Velcro Strap-On temp probes as follows: Channel A to inlet and channel B to outlet of evaporator*/condenser (*use optional TMX2FP Flex Surface Probe on evaporator inlet for vehicles like GM S-10 and Ford Trucks where orifice tubes are mounted at the evaporator inlet). -
Page 14: Accessory Probes / Accessories
ACCESSORY PROBES / ACCESSORIES Models TM360 Includes: TMX2A (1) TMX2G (1) TMX2S (1) TM360A Includes: TMX3C (1) TMX2GA (1) TMX2FP (1) TM360C Includes: TMX2A (1) TMX3C (1) TMX2S (1) Accessories TMX3PS Optional A/C power supply (100-240V) TMX3WB 6pk of 2" cotton socks for use with the Wet Sock Method (pg.8) TMX2A Moving Air Probe All probes have 15ft / 4.5m leads Probe Type... - Page 15 ACCESSORY PROBES / ACCESSORIES TMX2G General Purpose Probe All probes have 15ft / 4.5m leads Probe Type Surface / Air / Liquids Common Uses Copper pipe / Ambient Air / RH wet-sock method Response Time 6 seconds Range -40˚F to 257˚F / -40˚C TO +125˚C TMX2GA General Purpose Air Probe All probes have 15ft / 4.5m leads Probe Type...
- Page 16 ACCESSORY PROBES / ACCESSORIES TMX3RH RH/DB/WB/DP Probe (TM360) All probes have 15ft / 4.5m leads Probe Type Specialty RH probe Common Uses Measuring indoor air quality, setting/troubleshooting humidity devices Response Time 10 seconds in moving air, 20 seconds in still air Temperature -40˚F to 194˚F / -40˚C TO +90˚C Range...
-
Page 17: Condenser Flow Chart A
CONDENSER FLOW CHART A Measure condenser inlet and outlet temperature within 4” of condenser of the condenser. Temperature drop (difference) should be between 20°F and 50°F (-6°C and 10°C) in a properly performing system. Between 20°F and 50°F Less than 20°F (-6°C) More than 50°F (10°C) (-6°C and 10°C) CHECK CONDENSER FOR AIR... -
Page 18: Air Efficiency Flow Chart B
AIR EFFICIENCY FLOW CHART B Measure ambient air temperature 16-18” in front of the condenser. Measure air temperature of the AC duct closest to the evaporator using the vent probe. The temperature difference between ambient and duct air should be approximately 30°F (-1°C) in a properly performing system. -
Page 19: Evaporator Flow Chart C
EVAPORATOR FLOW CHART C Measure the evaporator inlet and outlet temperatures as close to the evaporator core as possible. The ideal temperature difference between the inlet and outlet is 0°F (-18°C). The acceptable temperature range for the outlet tube is from 5°F (-15°C) colder to 5°F (-15°C) warmer than the inlet tube. -
Page 20: Warranty
WARRANTY CPS Products, Inc. guarantees that all products are free of manufacturing and material defects to the original owner for one year from the date of purchase. If the equipment should fail during the guarantee period it will be repaired or replaced (at our option) at no charge.
