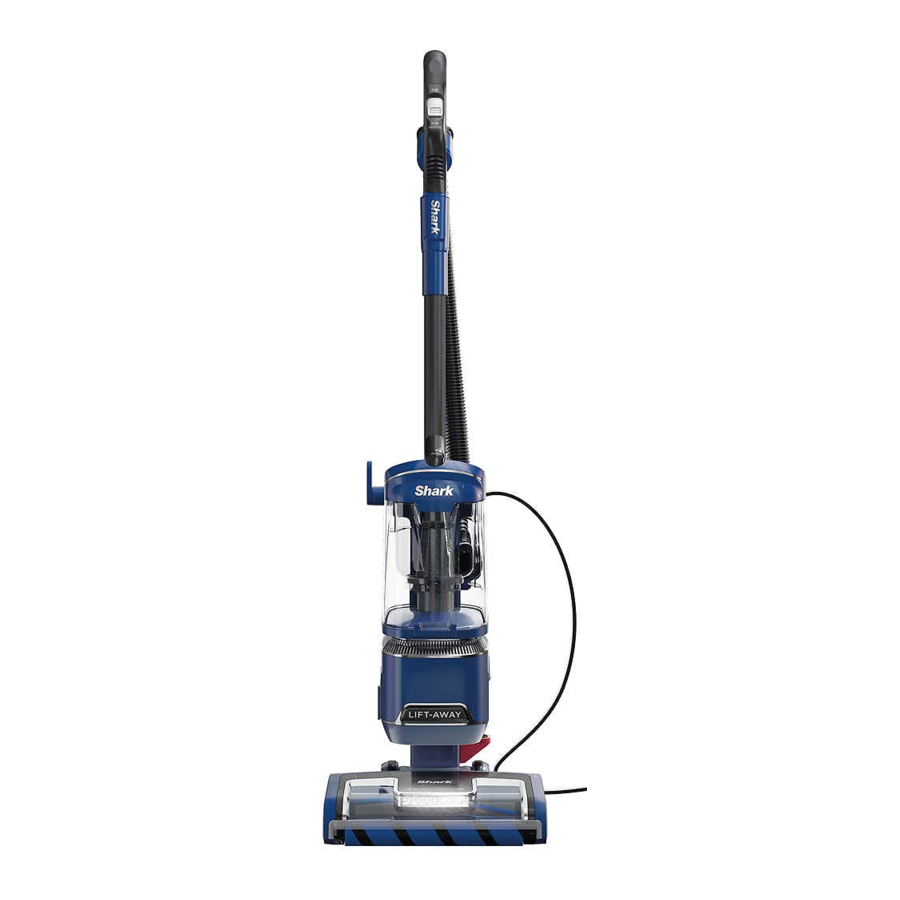

Shark DuoClean POWERFINS, Performance Lift-Away ADV, UV850 B Series Manual

ASSEMBLY

1. Place Pod down onto Nozzle.
2. Insert Wand into Pod.
3. Insert Handle into wand.
4. Attach Hose to back of pod.

For proper operation, ensure all parts are firmly clicked into place.
NOTE: Your Quick Guide shows the accesso ries that are included with your model.
* Accessories may vary depending on the model.

POWER CORD

UPPER CORD HOOK
For cord access, rotate upper hook down and remove cord.

CORD HOLDER
Use cord holder on the side of wand to hold cord in place while vacuuming.

WHOLE-HOME CLEANING

SETTINGS

POWER/SURFACE SWITCH

Select surface setting:

NOTE: The brushrolls spin in all modes

SUCTION CONTROL
The Suction Control Slider located on the handle allows you to adjust the suction depending on the floor type.
MIN: to reduce suction and increase maneuverability on carpets.
MAX: to increase suction on hard floors.

BRUSHROLL INDICATOR LIGHT

NOTE: For deep carpet cleaning per ASTMF608, use setting II (Carpet) with MAX suction.

INDICATOR LIGHT

WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?
Solid Green: The brush rolls are spinning and working as intended.
Solid Red: There is a jam in the brush roll area. Turn off and unplug the vacuum and remove any blockages in the nozzle.
Flashing Green: The vacuum is operating in an environment that is either too hot or too cold. This vacuum will only function properly in temperatures ranging from 32°F to 104°F. Turn the vacuum off and adjust the room temperature. Once the temperature has reached the operating range, turn the vacuum back on.
Flashing Red: The motorized floor nozzle is overheating. Turn off the vacuum, unplug it, and remove any blockages. Let the vacuum cool down for at least 60 minutes before restarting. See Troubleshooting section for more information.

WHOLE-HOME CLEANING

CLEANING MODES

UPRIGHT MODE
To engage Brushrolls, select a surface setting, step on floor nozzle and tilt handle back firmly.

LIFT-AWAY MODE
Step on the pedal on the floor nozzle to lift off the pod.

ABOVE-FLOOR - HANDLE
Press the Handle Release button and pull up on the handle to detach it from the wand.

ABOVE-FLOOR - WAND
Press the Wand Release button and pull up on the wand to detach it from the pod.

ACCESSORIES - HANDLE
Attach an optional cleaning accessory to handle or wand.

ACCESSORIES - WAND

NOTE: All accessories are compatible with both the wand and the handle. Included accessories will vary by model.
NOTE: Your Quick Guide shows the accessories that are included with your model.
* Accessories may vary depending on the model.

EMPTYING THE DUST CUP

Unplug the power cord before performing any maintenance.

Empty the dust cup each time you vacuum and periodically during cleaning, when debris in the dust cup reaches the MAX fill line.

To remove the Dust Cup, slide up on the release button located on the side of dust cup handle. Tilt dust cup forward, then lift to remove.

Clear debris from the Lint Screen in the dust cup. Lift the upper release tab at the top of the dust cup and open the lid. Gently brush the lint screen to remove debris.

To empty debris into the trash, press the lower release button and the bottom of the dust cup will drop open.

To reinstall, place the bottom of the dust cup onto the pod and then tilt until it clicks into place.

CLEANING THE FILTERS

Regularly rinse the filters to maintain your vacuum's suction power.
Rinse filters with cold water only. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electronic parts.

DO NOT use soap when cleaning the filters.

RINSE PRE-MOTOR FILTERS EVERY MONTH
Remove the Dust Cup, t hen lift out Filters.

RINSE HEPA FILTER EVERY YEAR
To remove the HEPA Filter, first pull the tab on the bottom of the filter door, then Iift off the door. Press the tab on the side of the HEPA filter and pull out the filter.
To reinstall the door, align the t op first, then press in the bottom until it clicks into place.

MAINTENANCE

NOZZLE MAINTENANCE

SELF-CLEANING BRUSHROLL
If any hair is wrapped around the brushroll, continue vacuuming, using Carpet/Low Pile mode on a bare floor surface, a low-pile carpet, or a small area rug. This will allow the self-cleaning brushroll to remove the hair wrap and send it to the dust cup.
If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or object s caught in the brushroll.
If some fibers remain wrapped around the brushroll after continued use, carefully remove them.

CLEANING THE SOFT ROLLER

Slide the Soft Roller access button forward to release the Soft Roller.

Hand wash the Soft Roller as needed. Use only water, and allow it to air-dry completely for at least 24 hours. Reinsert the Soft Roller in the front of the nozzle until it clicks into place.

CORD MAINTENANCE

To minimize the risk of power cord damage, DO NOT run the vacuum over the power cord. If this occurs, immediately shut off power to the vacuum and remove the cord from the brushrolls or nozzle.

1. DO NOT pull or carry vacuum cleaner by the cord or use cord as a handle.
2. DO NOT unplug by pulling on the cord. Grasp the plug, not the cord.
3. DO NOT close the door on the cord.
4. DO NOT pull the cord around sharp corners.
5. DO NOT leave the cord near heated surfaces.

CHECKING FOR BLOCKAGES

DUST CUP BLOCKAGES
Detach dust cup from vacuum pod. Empty dust cup and remove debris from lint screen in the top of the dust cup.

HOSE BLOCKAGES
Detach hose from handle by pressing on the release button at the top of the hose. Detach the hose from the pod, and check openings for blockages.

WAND BLOCKAGES
Detach wand from pod and handle, and check both ends for blockages.

HANDLE BLOCKAGES
Detach handle from wand and check openings for blockages.

TROUBLESHOOTING

Power cord caught in brushrolls or floor nozzle.

• To minimize the risk of power cord damage, DO NOT run the vacuum over the power cord. If this occurs, immediately shut off power to the vacuum and remove the cord from the brushrolls or nozzle.
• Inspect power cord and plug for any damage before use. DO NOT use vacuum cleaner with a damaged cord or plug. Turn off all controls before plugging in or unplugging the vacuum cleaner. Store your vacuum cleaner with t he power cord secured around the two cord hooks.

Vacuum Is not picking up debris. No suction or light suction.

• Check filters to see if they need cleaning. Follow instructions for rinsing and air-drying the filters before reinstalling them in the vacuum.
• Dust cup may be full; empty dust cup.
• Check handle, hose, hose connections, nozzle, wand, pod, and accessories for blockages. Clear any blockages found.
• If any string, hair, or carpet fibers are wrapped around the PowerFins brush roll, carefully cut debris with scissors and remove from brushroll. See Nozzle Maintenance section for more information.

Vacuum lifts area rugs.

• Make sure Power/Surface switch is set to Hard Floor (setting I).
• Ensure the suction control slider on t he handle is set to MIN.
• Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges.

Brushrolls do not spin In carpet cleaning mode.

• If the brushroll indicator light turns red, immediately turn off and unplug the vacuum. Remove pod from floor nozzle and clear any blockages. Reconnect nozzle, plug in vacuum, and turn on power.
• With the power on, recline the handle, which will automatically turn on the brushrolls.
• If this problem persists on thick carpets, move the suction control slider to MIN.

Vacuum turns off on its own or indicator light flashes red.
If your vacuum overheats, the thermostat will automatically turn the suction motor off. Perform the following steps to restart the thermostat:

1. Turn vacuum off and unplug it.
2. Empty dust cup and clean filters. See Emptying the Dust Cup and Cleaning the Filters sections for more information.
3. Check for blockages in hose, wand, nozzle, accessories, and inlet openings.
4. Allow unit to cool for a minimum of 60 minutes.
5. Plug in vacuum and restart with the Power/Surface switch.

TECHNICAL SPECIFICATIONS
Voltage: 120V-, 60Hz

IMPORTANT SAFETY INSTRUCTIONS

HOUSEHOLD USE ONLY
To reduce the risk of electric shock, this vacuum cleaner has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT force into outlet or try to modify to fit.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

GENERAL WARNINGS
When using an electrical appliance, basic precautions should always be followed, including the following:

1. Inspect power cord and plug for any damage before use. DO NOT use vacuum cleaner with a damaged cord or plug. Turn off all controls before plugging in or unplugging the vacuum cleaner. Store your vacuum cleaner with the power cord secured around the two cord hooks. To minimize the risk of power cord damage, do not allow the motorized brush roll to ingest the cord. If this occurs, immediately shut off power to the vacuum and remove the cord.
2. Your vacuum cleaner may consist of a motorized nozzle, wand, hose, and/ or vacuum pod. This device contains electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
3. Use only identical replacement parts.
4. Carefully observe and follow the instructions provided below to avoid improper use of the appliance. DO NOT use the vacuum for any purpose other than those described in this manual.
5. Before use, carefully inspect all parts for any damage. DO NOT use if any parts are damaged.
6. The use of an extension cord is NOT recommended.
7. This vacuum cleaner contains no serviceable parts.

USE WARNINGS

8. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children. Keep the appliance and its cord out of reach of children. DO NOT allow the appliance to be used by children. DO NOT allow to be used as a toy. Close supervision is necessary when used near children.
9. Always turn off the vacuum cleaner before connecting or disconnecting any motorized nozzles or other accessories.
10. DO NOT handle plug or vacuum cleaner with wet hands.
11. DO NOT use without filters in place.
12. Only use Shark^® branded filters and accessories.
13. DO NOT damage the power cord:
    1. DO NOT pull or carry vacuum cleaner by the cord or use the cord as a handle.
    2. DO NOT unplug by pulling on cord. Grasp the plug, not the cord.
    3. DO NOT run the vacuum cleaner over the power cord, close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.
14. DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
15. DO NOT us from electrical outlet. Remove all obstructions before you plug in and turn on the unit again.
16. Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
17. DO NOT use if vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
18. Use extra care when cleaning on stairs.
19. DO NOT leave the vacuum cleaner unattended while plugged in.
20. When powered on, keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibers.
21. DO NOT place vacuum cleaner on unstable surfaces such as chairs or tables.
22. Your Shark^® vacuum may not be designed to stand up on its own. When taking a break from cleaning, you may need to lean it against furniture or a wall, or lay it flat on the floor. Using the vacuum for an application where the unit lacks stability may result in personal injury.
23. DO NOT use to pick up:
    1. Liquids
    2. Large objects
    3. Hard or sharp objects (glass, nails, screws, or coins)
    4. Large quantities of dust (drywall dust, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
    5. Smoking or burning objects (hot coals, cigarette butts, or matches)
    6. Flammable or combustible materials (lighter fluid, gasoline, or kerosene)
    7. Toxic materials (chlorine bleach, ammonia, or drain cleaner)
24. DO NOT use in the following areas:
    1. Poorly lit areas
    2. Wet or damp surfaces
    3. Outdoor areas
    4. Spaces that are enclosed and may contain explosive or toxic fumes or vapors (lighter fluid, gasoline, kerosene, paint, paint thinners, moth proofing substances, or flammable dust)
25. Turn off all controls before plugging in or unplugging the vacuum.
26. Unplug from electrical outlet when not in use and before any maintenance or cleaning.
27. Hand wash with water only. Washing with cleaning chemicals could damage the unit.
28. During cleaning or routine maintenance, DO NOT cut anything other than hair, fibers, or string wrapped around the brushroll.
29. Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
30. Make sure the dust cup and all filters are in place after routine maintenance.
31. If provided, secure the power cord around the two cord hooks during storage.
