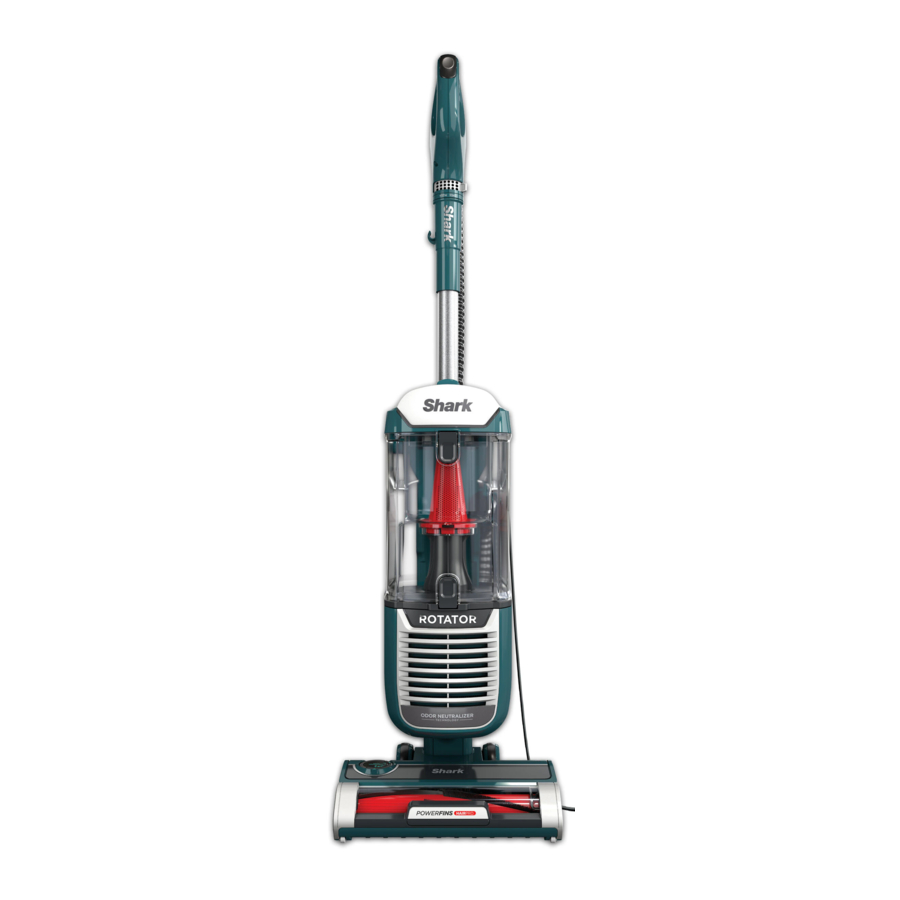

Shark Rotator ZU80 - Upright Vacuum with Odor Neutralizer Manual

ASSEMBLY

1. Insert Wand into Pod.

2. Insert Handle into wand.

3. Attach Hose to back of pod.

4. Attach hose to Clip on wand.
5. Insert Hose Clip onto base of pod and remove tape.
6. Store Accessories on tool storage posts.

7. Remove Odor Neutralizer Technology Dial from bag. Flip up the dial handle, align the teal arrows, then insert the dial into the nozzle.

8. To lock and engage the dial, rotate it counterclockwise until it clicks into the desired odor intensity setting.


* More detailed Odor Neutralizer Technology assembly instructions and visuals below.

For proper operation, ensure all connections are securely clicked into place.

POWER CORD

For cord access, rotate upper hook down and remove cord.

Use cord clip located on the side of wand to hold cord in place while vacuuming.

ODOR TECHNOLOGY SETTINGS

Flip up the dial handle and rotate the odor dial to adjust Odor Neutralizer Technology intensity or to unlock the dial for cartridge access.

Insertion/Removal: Rotate the odor dial to align the teal arrows. Remove the dial to access the odor cartridge for removal or replacement.

Low: Rotate the dial toward the Low position to decrease the intensity to the lowest level when the vacuum is in use.

High: Rotate the dial toward the High position for the highest intensity level when the vacuum is in use. This position is the recommended setting for optimal performance.

ODOR NEUTRALIZER TECHNOLOGY

TIPS

Odor Dial Must be Installed for Vacuum to Function Properly

• Remove odor cartridge from dial if you don't want the benefits of the odor neutralization technology.

Maintenance Required

• Clean all filters as recommended under Cleaning Filters.
• Empty the dust cup before storing your vacuum.
• Replace the cartridge as recommended under Odor Cartridge Replacement.
• Visit qr.sharkclean.com/odortech to learn more and purchase replacements.
• If wet pet messes are cleaned up, thoroughly clean the vacuum.

Fragrance Strength Over Time

• The intensity of the odor cartridge's fragrance may diminish over time. It may also have no noticeable fragrance at all. This is natural and does not indicate the technology isn't working. Follow replacement instructions to ensure continued performance.

NOTES:

• The odor dial needs to be installed for the vacuum to function properly, with or without the odor cartridge.
• Odor Neutralizer Technology effectively deodorizes while interacting with odors from inanimate sources.

ODOR CARTRIDGE REPLACEMENT

1. Flip up the handle and rotate the dial clockwise until the two teal arrows are aligned. Pull the handle to remove the dial from the nozzle.

2. Rotate the cartridge counterclockwise in the dial housing and pull out the cartridge to remove it.

3. Remove the new odor cartridge from the sealed packaging. To maintain the life of the cartridge, keep it in the sealed packaging until you are ready to install it.

4. Align the yellow arrow on the side of the cartridge with the yellow arrow on the side of the dial cover, then insert the cartridge into the dial. Rotate the cartridge clockwise to lock it in place.

5. Align the teal arrow on the dial cover with the teal arrow on the nozzle, then reinsert the dial into the nozzle. Rotate the dial counterclockwise until it clicks into an intensity setting to engage. Rotate further to change the intensity setting.

6. Dispose of the old cartridge by dropping it into the trash.


NOTE: Odor cartridges need to be replaced for optimal Odor Neutralizer Technology experience. We recommend changing cartridges when new bad odors are detected.

WHOLE-HOME CLEANING

SETTINGS

Select surface setting:

	Power Off
I	Hard Floor For bare floors and small area rugs, the brushroll will spin slowly.
II	Carpet For carpets, the brushroll will spin quickly to pick up stuck on debris.

The Suction Control slider located on the handle allows you to adjust the suction depending on the floor type.
MIN: to reduce suction and increase maneuverability on carpets.
MAX: to increase suction on bare floors.

BRUSHROLL INDICATOR LIGHT

WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?
Solid Green Light: The brushroll is spinning and working as it should.
Solid Red Light: There is a jam in the brushroll area. Turn your vacuum off, unplug from the wall and remove any blockages in the nozzle.
Flashing Red Light: The motorized floor nozzle is overheating. Turn off the vacuum, unplug it. and remove any blockages. Let the vacuum cool down for at least 60 minutes before restarting. See Troubleshooting section for more information.
Flashing Green Light: The vacuum is operating in an environment that is either too hot or too cold. This vacuum will only function properly in temperatures ranging from 32°F (0°C) to 104°F (40°C). Turn the vacuum off and adjust the room temperature.

NOTE: For deep carpet cleaning per ASTM F608 (embedded dirt in carpets), set to MAX suction and use setting II, Carpet.

CLEANING MODES

To engage brushroll, step on floor nozzle and tilt handle back.

Press the Handle Release button to detach the handle from the wand.

Press the Wand Release button to detach the wand from the pod.

Attach a cleaning accessory to handle or wand.

NOTE: All accessories are compatible with both the wand and the handle.

EMPTYING THE DUST CUP

Unplug the power cord before performing any maintenance.

To remove Dust Cup, slide up the latch on top of dust cup handle. Tilt dust cup forward, then lift to remove.

Press lower release button to open bottom of dust cup.

To remove collected debris from Lint Screen, press top release button and lift handle to open. Gently brush lint screen to clean.

To reinstall, place bottom of dust cup into pod and then tilt back until it clicks into place.

CLEANING AND REPLACING THE FILTERS

CLEANING FILTERS

Regularly clean and replace the filters to keep your vacuum's suction power strong and to maximize the effectiveness of the Odor Neutralizer Technology.

To prevent damage from cleaning chemicals rinse filters with cold water only. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electric parts.

DO NOT use soap when cleaning the filters.

CLEAN PRE-MOTOR FILTERS EVERY 3 MONTHS
Remove Dust Cup, then lift out Filters.

CLEAN HEPA FILTER EVERY YEAR
Press down top of Filter Door. Tilt Filter Door and lift out. Press tab at top of HEPA Filter and pull away from the base of the vacuum. To reinstall, insert HEPA filter into unit and replace the filter door.

REPLACING FILTERS

Follow the previous instructions for removing filters. The Pre-Motor Filter should be replaced every 2.5 years. The HEPA Filter should be replaced every 3 years.

Replacement Pre-Motor Foam & Felt Filter Kit 1239FT60

Replacement HEPA Filter 1238FT60

NOTE: To order replacement parts and filters, visit sharkaccessories.com.

MAINTENANCE

NOZZLE MAINTENANCE

SELF-CLEANING BRUSHROLL
If any hair is wrapped around the brushroll, continue vacuuming, using Carpet mode on a bare floor surface, a low-pile carpet, or a small area rug. This will allow the self-cleaning brushroll to remove the hair wrap and send it to the dust cup.
If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brushroll.
If some fibers remain wrapped around the brushroll after continued use, clear them from the brushroll.

Clean off any debris on the brushroll.

NOTE: If any hair is wrapped around the brushroll, extending cleaning time will allow the self-cleaning brushroll to remove it for you. If some fibers remain wrapped around brushroll after continued use, carefully remove them.

CORD MAINTENANCE

To minimize the risk of power cord damage, DO NOT run the vacuum over the power cord. If this occurs, immediately shut off power to the vacuum and remove the cord from the brushroll or nozzle.

1. DO NOT pull or carry vacuum cleaner by the cord or use cord as a handle.
2. DO NOT unplug by pulling on the cord. Grasp the plug, not the cord.
3. DO NOT close the door on the cord.
4. DO NOT pull the cord around sharp corners.
5. DO NOT leave the cord near heated surfaces.

CHECKING FOR BLOCKAGES

Detach hose from vacuum pod, and check hose and opening on back of pod for blockages.

Detach the wand from the pod, place the pod on its side, and check opening for blockages.

Detach dust cup from vacuum pod. Empty dust cup, remove debris from lint screen, and check for blockages.

Detach wand from floor nozzle and handle, and check both ends for blockages.

Detach the handle from the wand and the hose from the vacuum pod, and check openings for blockages.

To access the nozzle hose, pinch the release touchpoints on the bottom of the nozzle, then lift the cover and clear any blockages.

AVAILABLE ACCESSORIES

1. Crevice Tool
   Clean in corners and other tight spaces or reach baseboards and ceilings with this slim crevice tool.
2. Duster Crevice Tool
   Two cleaning tools in one. The crevice tool gives you extended reach to clean in tight spaces, while the soft brush is ideal for dusting delicate surfaces.
3. Upholstery Tool
   Picks up hair, dust, and large debris from mattresses, couches, curtains, lampshades, and other delicate upholstered fabrics.
4. Pet Multi-Tool
   A single convertible tool for cleaning tough pet messes two ways: use the stiff bristle brush to clean stuck-on debris, or take off the bristles to reveal an upholstery tool perfect for removing stubborn pet hair and large piles of debris.
5. HairPro Self-Cleaning Pet Power Brush
   Tackles pet hair and ground-in dirt from abovefloor areas like carpeted stairs and upholstery, while actively removing hair wrap as it cleans.
6. Pet Power Brush
   The turbine brush loosens and removes pet hair and debris from carpets, and powerfully deep-cleans dander out of upholstery and other surfaces.
7. Pet Crevice Tool
   This versatile, slender 8" tool removes pet hair from hard-to-reach spaces like corners, ceilings, and between couch cushions.
8. Under-Appliance Wand
   Clean under and behind hard-to-move appliances and furniture with this adjustable 36" tool. Flip the extension piece over to clean the underside of appliances.
9. Anti-Allergen Dust Brush
   This brush features nylon fiber bristles specifically designed for removing fine dust and allergen particles from the most delicate surfaces.
10. Home & Car Detail Kit
    Deep-clean your car like a professional detailer, or clean hard-to-reach areas in your home. Micro-sized tools let you clean around delicate objects and access the tightest spaces like car vents and computer keyboards.
11. Accessory Bag
    This convenient accessory storage bag measures 32 cm x 70 cm and fits the Under- Appliance Wand. Smaller size available at sharkaccessories.com.

NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkaccessories.com.

TROUBLESHOOTING

The unit is not picking up debris

No suction or light suction

• Check filters to see if they need cleaning. Follow instructions for rinsing and air-drying the filters before reinserting in the vacuum.
• Dust cup may be full; empty dust cup.
• Check hose, hose connections, nozzle, wand, pod, and accessories for blockages. Clear any blockages found.
  (Refer to Checking for Blockages section for more information.)
• If any string, carpet fibers, or hair is wrapped around the brushroll, extend cleaning time to allow the self-cleaning brushroll to remove it.
  • If some hair or fibers remain wrapped around brushroll after continued use, remove the floor nozzle cover and carefully cut debris with scissors and remove from brushroll. See Cleaning the Brushroll section for more information.

Device lifts area rugs

• Make sure Power/Surface switch is set to Hard Floor (setting I).
• Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges. Brushroll does not spin in carpet cleaning mode.
• If the Brushroll Indicator Light turns red, immediately turn off and unplug the vacuum. Remove pod from floor nozzle and clear any blockages. Reconnect nozzle, plug in vacuum, and turn on power.
• With the power on, recline the handle, which will automatically turn on the brushroll.
• Ensure that the Power/Surface switch is set to Carpet (setting II) for brushroll to spin.

Vacuum turns off on its own or indicator light flashes red.
This vacuum is equipped with a motor-protective thermostat. If your vacuum overheats, the thermostat will automatically turn the suction motor off. Perform the following steps to restart the thermostat:

1. Turn vacuum off and unplug it.
2. Empty dust cup and clean filters (see Emptying the Dust Cup and Cleaning and Replacing the Filters.).
3. Check for blockages in hose, accessories, and inlet openings.
4. Allow unit to cool for a minimum of 45 minutes.
5. Plug in vacuum and turn it on.

Appliance is emitting air that smells bad

• Dust cup may be full; empty dust cup. Empty dust cup after each use for optimal Odor Neutralizer Technology performance.
• Check filters to see if they need cleaning. Follow instructions for rinsing and air-drying the filters before reinstalling them.
• Check to make sure odor cartridge is installed in the dial and the dial is installed in the nozzle.
• Check the odor neutralizer dial on the nozzle to see what setting is enabled.
• If the dial is at any setting from Low to High and the cartridge has been installed for 6 months or longer, consider replacing it.
• If the odor cartridge is still emitting a scent but you dislike it, consider turning the intensity down, or reinstall the dial in the nozzle without the cartridge.
• If the odor cartridge is not emitting a scent, consider replacing it.

For all other issues, please go to support.sharkclean.com/ or call Customer Service 1-800-798-7398.

TECHNICAL SPECIFICATIONS

ODOR NEUTRALIZER TECHNOLOGY SPECIFICATIONS

1. Product Name: Odor Neutralizer Technology Cartridge
2. Manufacturer: Shark Ninja 89 A Street Needham, MA 02494
3. Weight: 17.6g / 0.62oz
4. Ingredients: Solid SM composite polymer C17 + fragrance SE 272235
