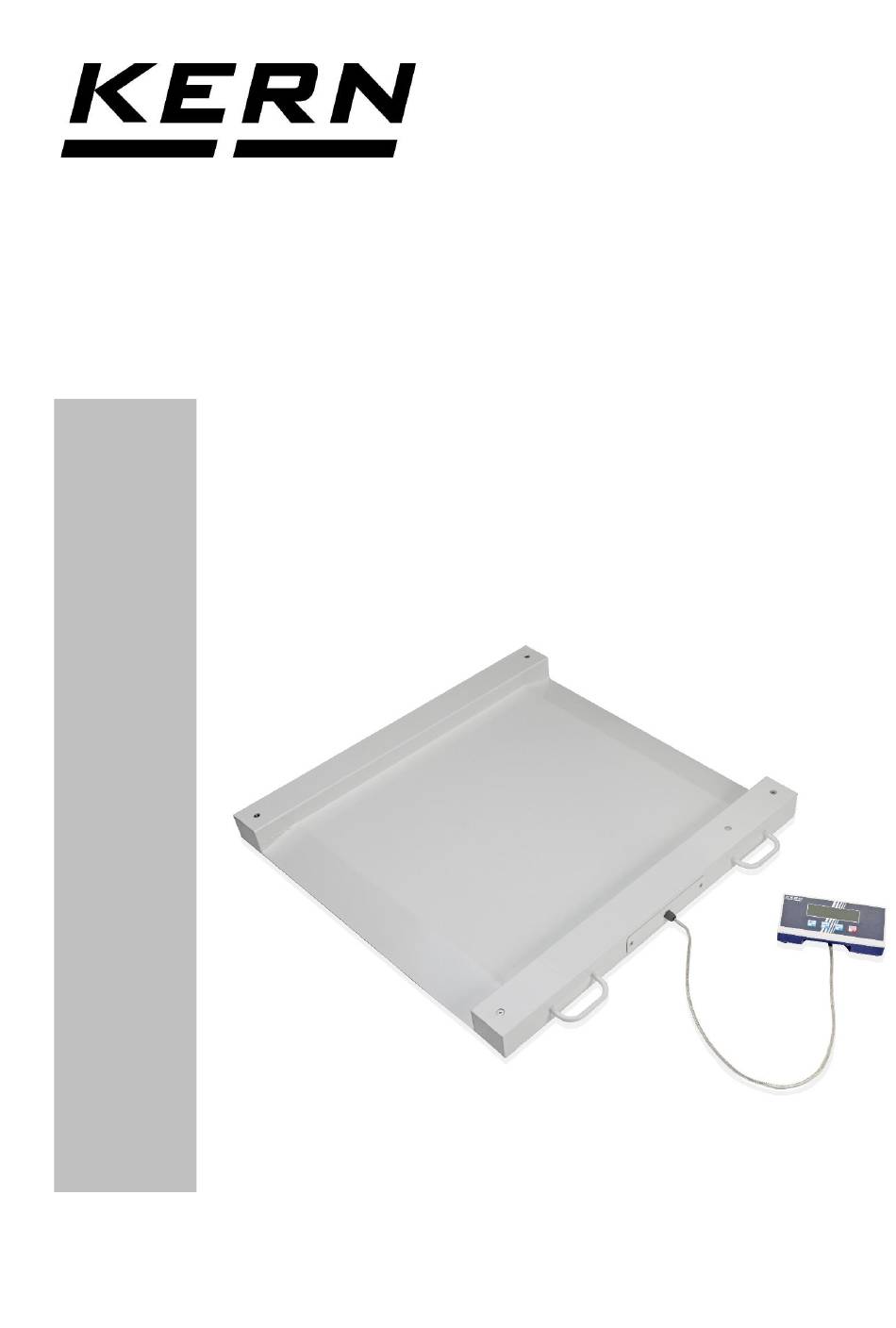

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Drive-through scale KERN MWC Version 1.0 2024-06 MWC-BA-e-2410...
-
Page 2: Table Of Contents
KERN MWC Version 1.0 2024-06 Operating instructions Drive-through scale Table of contents Technical data ....................4 Device overview Display unit ................5 Keyboard overview ....................6 Basic information (general) ................6 Intended use ......................6 Improper use ......................6 Guarantee ........................7 Test equipment monitoring.................. - Page 3 Menu overview......................18 Maintenance, servicing, disposal..............19 Cleaning ........................19 Maintenance, servicing .....................19 Waste disposal ......................19 Error messages, minor breakdown assistance ......... 20 Declaration of Conformity ................21 MWC-BA-e-2410...
-
Page 4: Technical Data
1 Technical data KERN MWC 600K-1 TMWC 600K-1-A Item number/type 100 g Readability (d) 600 kg Weighing range (max) 200 g Reproducibility ± 600 g Linearity Recommended calibra- 600 kg (M1) tion weight, not included (class) Warm-up time 10 minutes... -
Page 5: Device Overview Display Unit
2 Device overview Display unit 1. Weight display 2. Keys 3. Battery compartment 4. Guide rail Table base/stand 5. Stop table base/stand 6. Mains adapter connection 7. Load cell cable connection MWC-BA-e-2410... -
Page 6: Keyboard Overview
• The scale must not be modified in any way. This can lead to incorrect weighing results, safety-related defects and the destruction of the scale. • The scale may only be used in accordance with the specifications described. Devi- ating areas of use/application must be approved in writing by KERN. MWC-BA-e-2410... -
Page 7: Guarantee
Information regarding the test equipment monitoring of indicators and the test weights required for this is available on the KERN homepage (www.kern-sohn.com). KERN's accredited DKD calibration laboratory can calibrate test weights and indicators with connected weighing plates quickly and cost-effectively (traceability to the national standard). -
Page 8: Basic Safety Instructions
4.1 Observe the notes in the operating instructions Please read these operating instructions carefully before installation and commissioning, even if you already have experience with KERN scales. 4.2 Staff training The appliance may only be operated and maintained by trained personnel. -
Page 9: Unpacking, Installation And Commissioning
Carefully remove the display unit from the packaging, remove the plastic cover and at the intended workplace. Position the display unit so that it can be easily operated and viewed. Slide the table base into the guide rail [4] as far as it will go, see section 2. MWC-BA-e-2410... -
Page 10: Scope Of Delivery/Standard Accessories
6.4 Mains connection Power is supplied via the external power supply unit. The printed voltage value must match the local voltage. Only use original KERN power supply units. The use of other makes requires the ap- proval of KERN. MWC-BA-e-2410... -
Page 11: Adjustment
Carry out the adjustment as close as possible to the maxi- mum load of the weighing system. Information on test weights can be found on the Internet at: http://www.kern-sohn.com. • Ensure stable ambient conditions. A warm-up time is required for stabili- sation. - Page 12 In the event of a calibration error or incorrect calibration weight, an error message appears on the display. Remove the calibration weight and repeat the calibration process. Keep the calibration weight with the scale. Daily checking of the scale accu- racy is recommended for quality-relevant applications. MWC-BA-e-2410...
-
Page 13: Operation
Zeroing corrects the influence of light soiling on the weighing plate. Relieve the load on the weighing system Press , the zero display appears. 7.4 Simple weighing Place the goods to be weighed. Wait for stability display < >. Read off the weighing result. MWC-BA-e-2410... -
Page 14: Weighing With Tar A
Save tare value: and press . A 5 (for save) and a flashing 0 are displayed. Press to select a memory location from 0 to 9. Press to confirm the selected memory location and accept the saved pre-tare value. MWC-BA-e-2410... -
Page 15: Weighing With Pre-Tare
7.7 Call up saved pre-tare values for approx. 3 seconds. A 6 (for read) and a flashing 0 are displayed. Press to select a stored value from 0 to 9. Press to confirm the selected memory loca- tion and display the saved pre-tare value. MWC-BA-e-2410... -
Page 16: Save Pre-Tare Values Below 2% Of Max
The <hold> indicator goes out and the scale re- turns to normal weighing mode. This function can be repeated as often as required by pressing again. If the movement is too lively (strong display fluctuation), the average value cannot be determined. MWC-BA-e-2410... -
Page 17: Menu
Confirm the selected function with . The current setting is displayed. Use to select the desired parameter. Use to return to the menu. To exit the menu, press . The scale automatically returns to weighing mode. MWC-BA-e-2410... -
Page 18: Menu Overview
• 0.5 d/s ZP 1 • 1 d/s ZP 2 • 2 d/s ZP 3 • 3 d/s ZP 4 • 5 d/s ZP 5 G-value (value of the local gravitational ac- celeration) adjustable Factory settings are marked with *. MWC-BA-e-2410... -
Page 19: Maintenance, Servicing, Disposal
Ensure that no liquid penetrates the appliance and wipe with a dry, soft cloth. 9.2 Maintenance, servicing The device may only be opened by trained service technicians authorised by KERN. Disconnect from the mains before opening. 9.3 Waste disposal The operator must dispose of the packaging and appliance in accordance with the applicable national or regional legislation at the place of use. -
Page 20: Error Messages, Minor Breakdown Assistance
• Internal memory error b-Err • Incorrect calibration weight 1-Err • Improper adjustment 2-Err • Unit weight too small l-Err If other error messages occur, switch the appliance off and on again. If the error mes- sage remains, contact the manufacturer. MWC-BA-e-2410... -
Page 21: Declaration Of Conformity
11 Declaration of Conformity You can find the current EC/EU Declaration of Conformity online at www.kern-sohn.com/ce MWC-BA-e-2410...
