Quick Installation Guide
4:2 & 8:2 DisplayPort Secure KVM MultiClave Switches
Objectives
• Scan the QR code or visit Belkin Cybersecurity YouTube Playlist for Secure KVM Unboxing and Troubleshooting videos.
• This guide includes instructions for installing Belkin F1DN104MVKVMDC4, F1DN108MVKVMDC4 Secure KVM Switches.
• DisplayPort Secure KVM allows sharing keyboard, video, mouse, audio and USB peripherals between multiple computers.
The MultiClave series is a seamless multi-viewer switch that allows users to display any of the 4 or 8 inputs on any of the 2 outputs in various predefined screen
layouts. It can also duplicate a source to both outputs. These switches are commonly referred to as 4 by 2 or 8 by 2 multi-viewer switches.
• This guide and additional product documentation is available for online download on Belkin website. For further assistance please refer to: https://www.belkin.com/
business/cybersecurity-and-secure-kvm/resources/.
General
• IMPORTANT: Most SKVM or display compatibility behavior issues are
resolved when operating on the latest PC/laptop BIOS and dock firmware.
If you have not already done so, please update all appropriate firmware on
the system(s) you are operating.
• The Belkin Multi-Monitor Mouse Driver is necessary when connected
computers have multiple monitors. The driver can be found at
www.belkin.com/us/support-article?articleNum=286117.
• Verify that all peripherals and computers are turned OFF prior to
connecting them to the product.

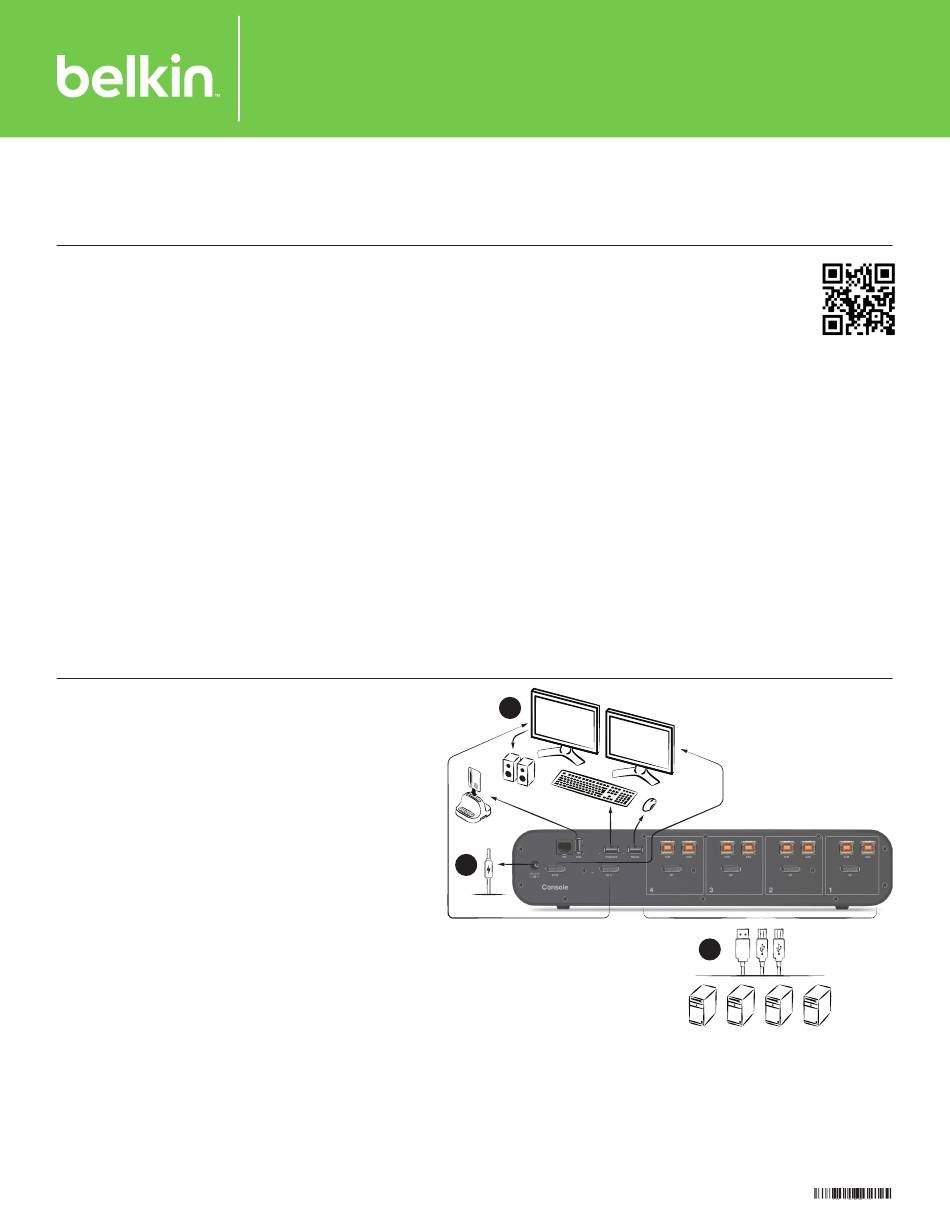

F1DN104MVKVMDC4 Model is shown
 Connect peripherals to the KVM
Console Ports:
• Keyboard & Mouse: Connect a USB keyboard
and mouse to the corresponding KVM console
port. The keyboard and mouse indicator
lights (rear panel) will illuminate green. If the
keyboard or mouse are not authorized, the
lights will illuminate red.
• Video: Connect the monitor cables as follows:
Primary display to Primary DisplayPort output
(DP A) and Secondary display to Secondary
DisplayPort output (DP B). The EDID LEDs
(rear panel) will operate as follows:
– Off: no EDID
– Flicker: EDID read in progress
– On: EDID received
Note: EDID is only read in the first few seconds
of device boot. The secure switch does not
support hot plug or swap of displays. In any
swap of display(s) it is required to restart the
KVM.
• Audio peripherals: IMPORTANT: DisplayPort
SKVM delivers digital audio via your
monitor(s). If supported, connect headphones
or speakers to the appropriate input source on
your monitor(s). Please refer to your monitor
manufacturer's manual for further details.
F1DN104MVKVMDC4 4:2 DisplayPort Secure KVM MultiClave with CAC PP4.0;
F1DN108MVKVMDC4 8:2 DisplayPort Secure KVM MultiClave w/CAC PP4.0
• Common Access Card (CAC/DPP)
Configuration and Operation: Please refer to
the relevant section.
 Connect peripherals to the KVM
Computer (Host) Ports:
• Computer keyboard & mouse connection:
Connect each computer to the KVM keyboard
& mouse computer port using a USB A to
USB B cable. Connect the USB A end to the
computer and the USB B end to KVM.
• Computer Video connection: Connect each
computer to the KVM DP port using the
corresponding DisplayPort video cable.
• The KVM's back panel is divided into sections of Console Ports and
Computer Ports.
– Connect the peripherals to be shared by the KVM to the Console Ports.
– Connect each computer that needs access to shared peripherals to a
specific Computer Ports section.
– Make sure that every computer is connected to a separate Computer
Port section.
– The push buttons on the KVM's front panel indicate which computer
has current access to shared peripherals.
– To switch peripherals between computers, press the appropriate push
button on the KVM's front panel.
– Before installing, an administrator may need to configure the KVM
for CAC or DPP and channel Illumination colorization. Consult your
administrator for details.
1
3
• Computer audio connection: IMPORTANT:
2
DP
DisplayPort SKVM delivers digital audio via
the DisplayPort connection on your monitor(s).
If supported, select your desired monitor
as the output source on each connected
computer. Please refer to your computer
manufacturer's manual for further details.
