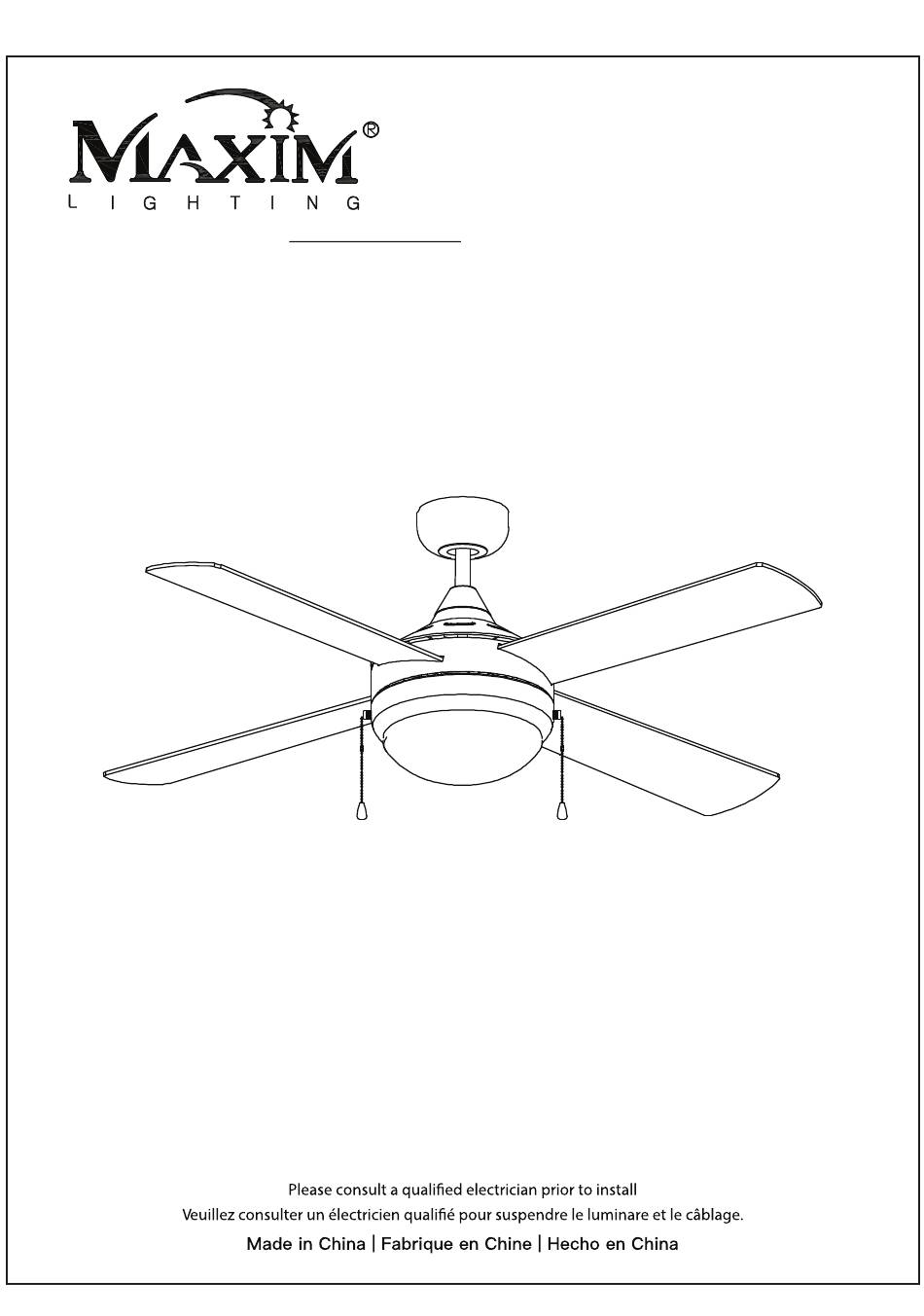

- Page 1 Item / Model Number: 88794 Quattro 52” 4-Blade Fan Lamping | Ampoule: 1 x 18W LED (included) 1 of (10)
-
Page 2: Safety Instructions
Safety Instructions: READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN. IF YOU ARE NOT FAMILIAR WITH NATIONAL AND LOCAL ELECTRI- CAL CODES AND BASIC ELECTRICAL WIRING PROCEDURES WE RECOMMEND THAT YOU HAVE A QUALIFIED ELECTRICIAN INSTALL YOUR NEW CEILING FAN. SAVE INSTRUCTIONS. •... -
Page 3: Tools Required
Tools Required: Screw Package Included: Fan Parts Included: Lamp 3 of (10) -
Page 4: Fan Diagram
Fan Diagram Hanging Bracket Down Rod Ball Assembly Down Rod Hairpin Clip And Washer Safety Pin Ceiling Canopy Down Rod Coupler Cover Top Plate Screws Top Plate Blade Screws and Washers Down Rod Coupler Blade Slot Motor Assembly Fan Speed Switch Pull Chain Light Switch Pull Chain LED Module Lamp Shade... -
Page 5: Installation Instructions
Warning: • To reduce the risk of fire, electrical shock, or personal injury, mount this fan to an outlet box marked “Acceptable for Fan Support of 22.7 kg ( 50 lbs )” or less and use Mounting Screws provided with the outlet box. CAUTION: Install the primary mounting means and use only the hardware provided with the fan. - Page 6 Step 3 Suspension Installation 1. Loosen the set screws (2) in the down rod coupler until the inside tunnel is clear. 2. Remove the hairpin clip, washer and safety pin at the end of the down rod, Slide the ceiling canopy onto the down rod, followed by the down rod coupler cover.
- Page 7 Step 4 Hanging Fan Body Using a step ladder carefully lift the fan and seat Hanging Bracket the down rod ball assembly on the hanging bracket. Rotate fan so that down rod ball assembly notch engages with the hanging Hanging Bracket Down Rod bracket groove.(See Step 4.1) Groove...
- Page 8 Hanging Bracket Step 7 Canopy Installation Remove the screws on both sides of the hanging bracket, set aside, move the Ceiling Canopy upward. (See Step 7.1) Align the screw holes of the hanging bracket and the Ceiling Canopy, and tighten the screws.(see Ceiling Canopy Step 7.2) Step 8 Glass Shade Installation...
-
Page 9: Maintenance
Ceiling Installation 1. Remove the silencing rubber ring from the ceiling canopy (see step 1) 2. Loosen the 3 pcs screws from the motor housing (see step 2) 3. Use these 3pcs screws to lockin the ceiling canopy on the motor housing (see step 3) 4. -
Page 10: Troubleshooting Guide
Troubleshooting Guide: If you have di culty oprtating your new ceiling fan it may be the result of incorrect assembly,installation,or wiring.In some cases these installation errors may be mistaken for defects. If you experience any faults please check this troubleshooting guide. Problem Suggested Remedy: 1.
