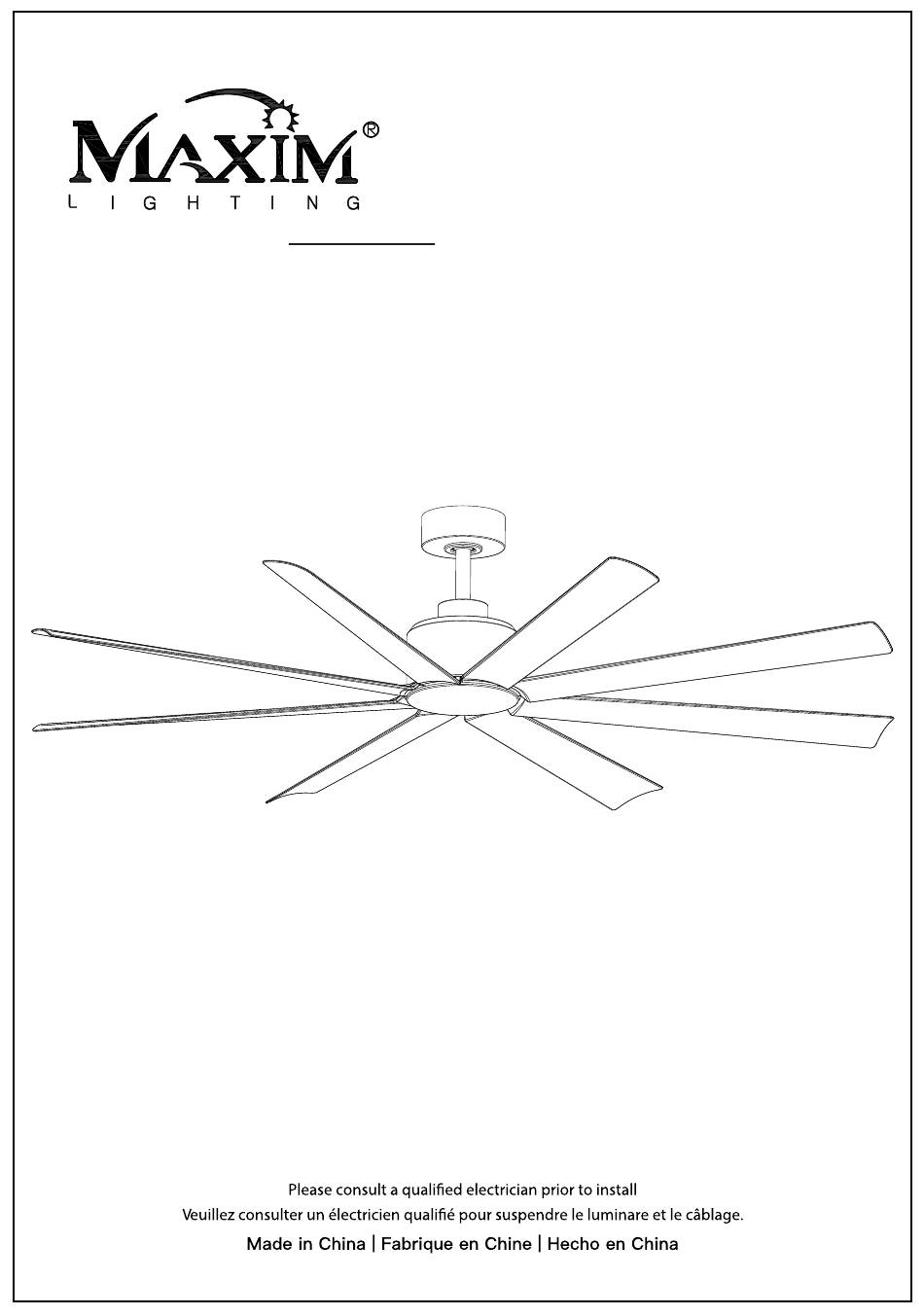

- Page 1 88766 Item / Model Number: Condor 65” 8-Blade Fan Lamping | Ampoule: 1 x 18W LED (included) 1 of (10)
-
Page 2: Safety Instructions
Safety Instructions: READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN. IF YOU ARE NOT FAMILIAR WITH NATIONAL AND LOCAL ELECTRI - CAL CODES AND BASIC ELECTRICAL WIRING PROCEDURES WE RECOMMEND THAT YOU HAVE A QUALIFIED ELECTRICIAN INSTALL YOUR NEW CEILING FAN. SAVE INSTRUCTIONS. •... -
Page 3: Tools Required
Tools Required: Screw Package Included: Screw Package Quantity S1. Blade Screws 2 Each Per Fan Blade S2. Machine Screws S3. Wood Screws S4. Washers S5. Lock Washers S6. Star Washers S7. Wire Nuts S8. Balance Kit Fan Parts Included: Hanging Bracket Down Rod Canopy Canopy Ring... -
Page 4: Fan Diagram
Fan Diagram Hanging Bracket Down Rod Ball Assembly Down Rod Hairpin Clip Safety Pin Ceiling Canopy Canopy Ring Down Rod Coupler Cover Motor Assembly Fan Blades Blade Disk Blade Screws Bottom Cover 4 of (10) -
Page 5: Installation Instructions
Warning: • To reduce the risk of fire, electrical shock, or personal injury, mount this fan to an outlet box marked “Acceptable for Fan Support of 22.7 kg (50 lbs) ” or less and use Mounting Screws provided with the outlet box. CAUTION: Install the primary mounting means and use only the hardware provided with the fan. -
Page 6: Step 2 Suspension Installation
Step 2 Suspension Installation 1. Loosen the set screws (2) in the down rod coupler until the inside tunnel is clear. 2. Remove the hairpin clip, washer and safety pin at the end of the down rod, Slide the ceiling canopy and canopy ring onto the down rod, followed by the down rod coupler cover. -
Page 7: Step 5 Making Electrical Connections
Step 5 Making Electrical Connections 1. Attach the green wire from down rod ball and Connection wire, assembly to the green wire from hanging bracket to the ground wire in the outlet box. The ground wire is typically either an Black uninsulated (bare) copper wire or a green wire. -
Page 8: Step 7 Canopy Installation
Step 7 Canopy Installation 1. Align the screw holes on the bottom of Hanging Bracket and the Ceiling Canopy, put in the screws and tighten them.(See Step 7.1) Hanging Bracket 2. Cover the screw head with the slot in the Canopy ring, and rotate the Canopy ring to tighten it.(see Step 7.2) Ceiling Canopy... -
Page 9: Step 9 Bottom Cover Installation
Step 9 Bottom Cover Installation Rotate the bottom cover until it is tightened. Bottom Cover Remote Control Function: • Turn on/off fan • Fan Speed (1 - 6) • Forward/Reverse, turn anti-clockwise or clockwise rotation • Turn on/off light • Switch the brightness of the light •... -
Page 10: Troubleshooting Guide
Trouble shooting Guide: ases these installation errors may be mistaken for defects. If you experience any faults please check this troubleshooting guide. Problem Suggested Remedy: Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan and switch wire connections in switch housing. 1.
