Summary of Contents for Maxim Lighting Cupola

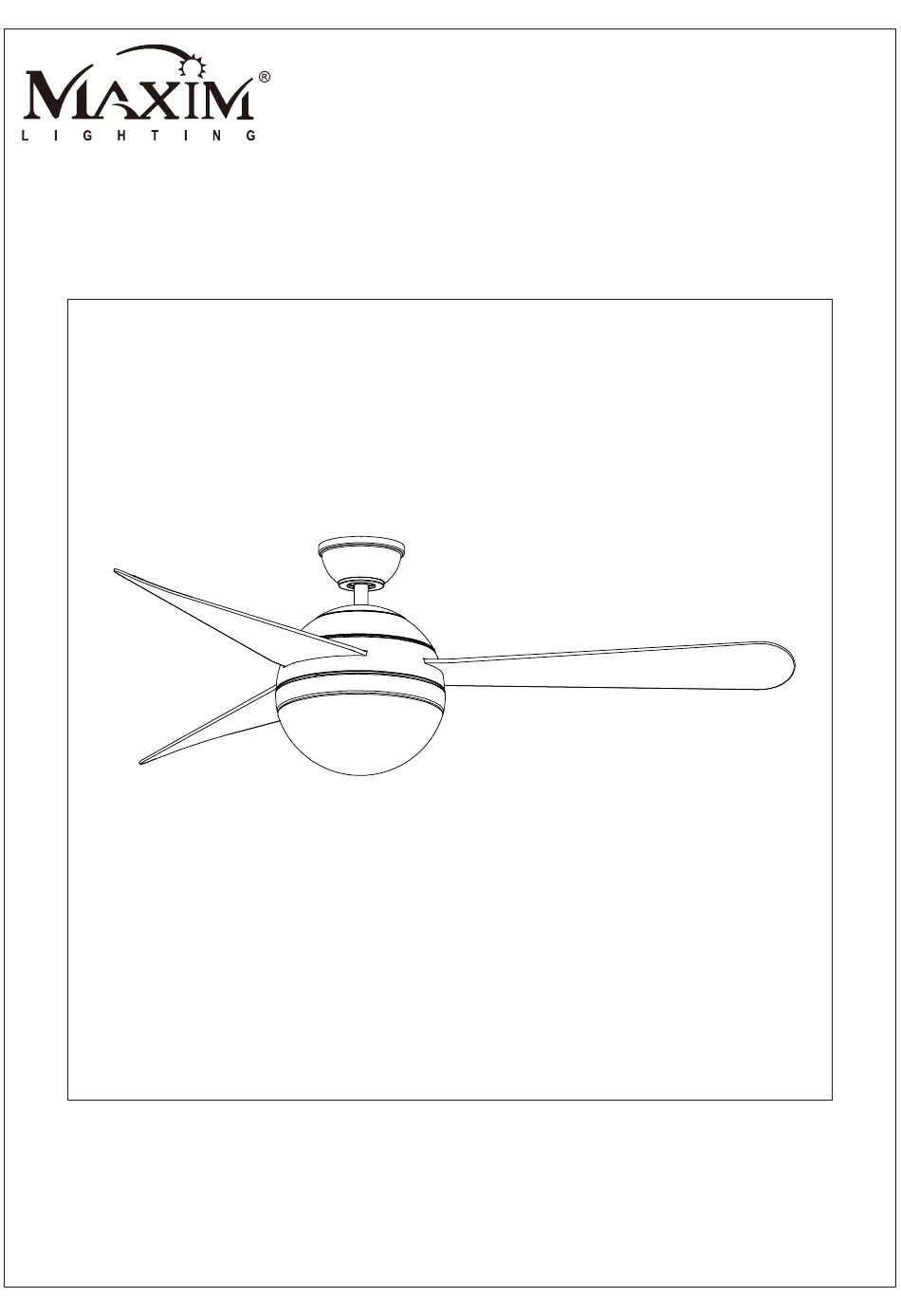

- Page 1 PRODUCT NAME: Cupola 3-Blade Fan w/ 2-Light FKT ITEM NUMBER: 88802 Please consult your electrician for hanging fixture and wiring. MADE IN CHINA...
- Page 2 Blade set (3) Couping Ring Couping cover Wall control, receiver screws(10),fiber washers(10) 4) Balance Kit...
-
Page 3: Safety Rules
2. SAFETY RULES 1. To reduce the risk of electric shock, insure 7. Do not operate reversing switch while fan electricity has been turned off at the blades are in motion. Fan must be circuit breaker or fuse box before turned off and blades stopped before beginning. -
Page 4: Mounting Options
3. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or Outlet box turning off circuit breakers. Secure the outlet box directly to the building Fig.1 structure. Use appropriate fasteners and building materials. -
Page 5: Attaching The Fan Blades
4. ATTACHING THE FAN BLADES Step 1 Turn the Screws counterclockwise to loosen the light kit.(Fig. 5) Screw Step 2 Insert the blade into the fan and align th blade screw hole with the screw hole of Fig.5 the center band. (Fig.6) Step 3 Lock the blades with screws and washer. -
Page 6: Hanging The Fan
5. HANGING THE FAN Canopy REMEMBER to turn off the power.Follow the steps Screw below to hang your fan properly. Screwdriver Step 1. Loosen the screws on the canopy clock- UL Listed electrial wise with a screwdriver and remove the hanger. (Fig.8) Washers Ceiling... -
Page 7: Make The Electric Connections
6. MAKE THE ELECTRIC CONNECTIONS AC fan wiring diagram Remember to disconnect the power. Follow the steps below to connect the fan to your household wiring. Use the wire Outlet box connecting nuts supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose strands or connections. -
Page 8: Installing The Wall Control
7.INSTALLING THE WALL CONTROL Disconnect the power and remove the existing wall plate and switch.Set all knobs on the dual slide wall-mounted control in WHITE the OFF position. Installation of this control BLACK requires that a three conductor cable with ground wire be run between the control wall box and the ceiling fan outlet box. - Page 9 8. USE OFFORWARD AND REVERSE SWITCH As shown in fig.15, move the couping cover up to leave enough space, and insert a small screwdriver screwdriver into the hole of the forward and reverse switch to turn the forward and reverse switch.
- Page 10 Couping Ring Joint cover Washer and Retainer Clip Safety Pin Terminal Bulb Turn the bulb clockwise to tighten it Glass Shade Turn the glass Turn the glass counterclockwise clockwise to loosen it tighten Fig.17...
-
Page 11: Operating Your Fan
10.OPERATING YOUR FAN Clockwise rotation Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off. -
Page 12: Care Of Your Fan
11.CARE OF YOUR FAN 12.TROUBLESHOOTING...
