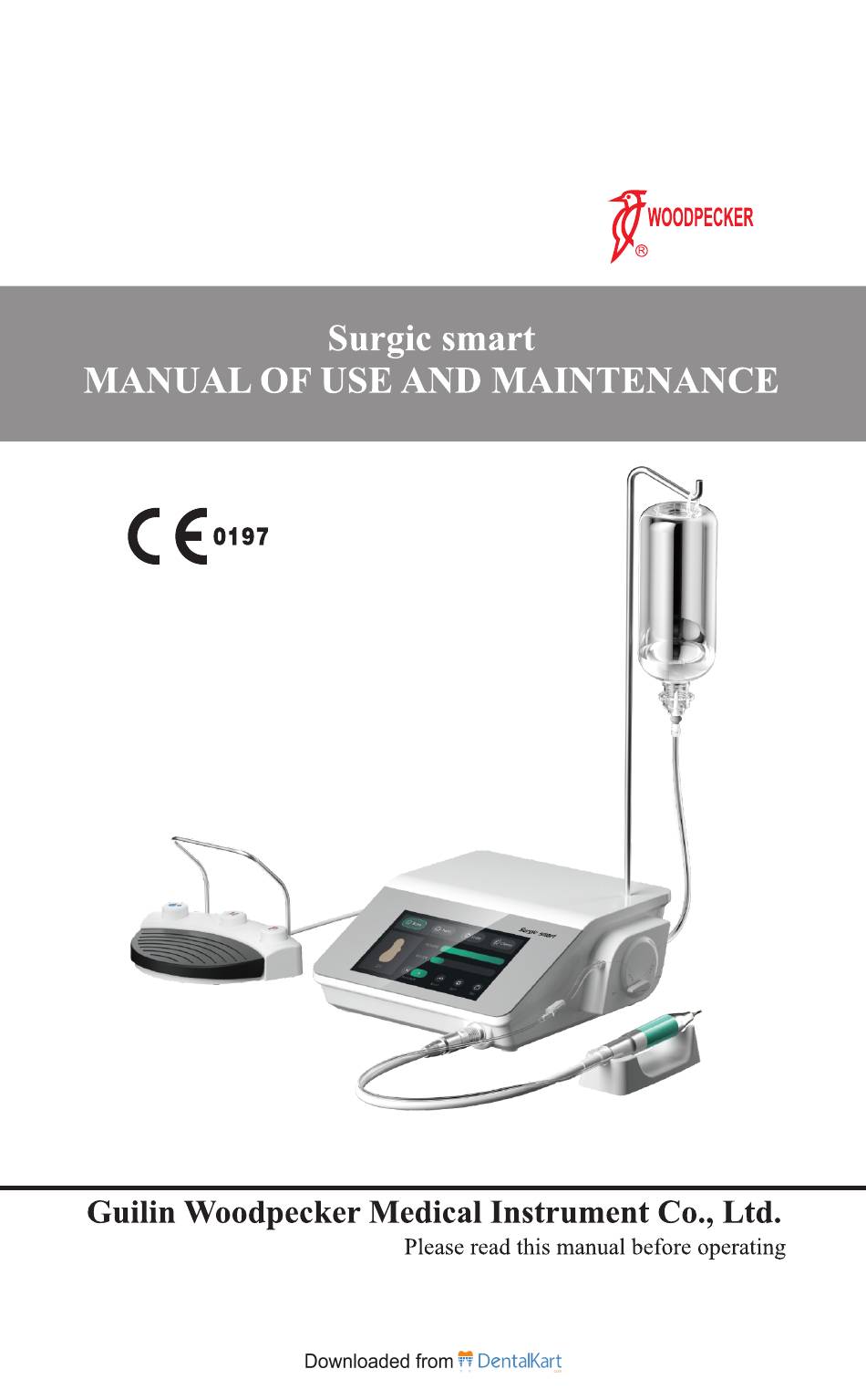

Woodpecker Surgic smart Manual Of Use And Maintenance
  1. Manuals
  2. Brands
  3. Woodpecker Manuals
  4. Medical Equipment
  5. Surgic smart
  6. Manual of use and maintenance
Woodpecker Surgic smart Manual Of Use And Maintenance

Woodpecker Surgic smart Manual Of Use And Maintenance

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surgic smart and is the answer not in the manual?

Questions and answers

Related Manuals for Woodpecker Surgic smart

Summary of Contents for Woodpecker Surgic smart

  • Page 2: Table Of Contents

    Content 1. Introduction ..................1 ................4 3. Testing of the device ................5 4. Delivery ....................5 ..........5 ..................7 7. Controls ....................1 0 ........1 6 ..............2 2 ..............2 3 ......... 2 3 ....................2 4 ..................2 4 ................2 5 ................2 7 16.

  • Page 3: Introduction

    Do not install Surgic smart near equipment that releases magnetic waves. try! Surgic smart requires special precautions for EMC and needs to be installed and put into service according to the EMC environment. smart , do not run both devices at the same time.
  • Page 4 1.2 Description of the Device Thanks to its controlled three-dimensional ultrasound oscillations, the original Surgic smart technique rings in a new age for osteotomy and osteoplasty in Implantology, Periodontology, Endodontics and Orthodontic Surgery. Its main features are: Micrometric cutting: Maximum surgical precision and intra-operative sensibility;...
  • Page 5 It is necessary to instruct the patient to breathe though his nose during the This equipment cannot function in places where there is an inflammable The foot pedal of the Surgic smart must not be activated when the door of the...
  • Page 6 2.2 Data plate of the device and serial number are indicated. The data plate is on the rear of the device. The Fig.1 2.3 Data plate of the scaler handpiece The serial number of the Surgic smart handpiece is engraved on the ring nut...

  • Page 7: Testing Of The Device

    Fig.2 3. Testing of the device All the devices are checked and tested by Woodpecker completely, including all the parts. When testing, all the parts will work in intermittent operation. The test emphasized that all the problems are from the failure parts. This procedure ensures the function and reliability of all the parts.
  • Page 8 Name Quality Silicone handpiece holder Connection for the cord and tube of the peristaltic pump Torque wrench Sterilize box Marked on the Tip Holder and Tips packing list Power-supply cable...
  • Page 9 Fig.4 6.1 Safety requirements during Installation syringe.

  • Page 10: Initial Installation

    6.3.1 Insert the silicone tube into the peristaltic pump, proceeding as follows: The foot pedal of the Surgic smart must not be activated when the door of the 6.3.3 Connect the foot pedal to the casting of the device by inserting the plug into 6.3.5 Insert the tube of Surgic smart cord to the cord connector on the device...
  • Page 11 Fig.6 Fig.7...

  • Page 12: Controls

    Fig.8 7. Controls 7.1 Description of the controls This section illustrates the parts of the front panel of the Surgic smart unit, enabling the controls described in this manual to be located immediately. 7.1.1 Description of bone function:...
  • Page 13 Fig. 9 As shown in Fig. 9, when the mode name "Bone " is selected in the green frame, the device is in bone cutting mode;In this mode, there are "power" and "water volume" that can be adjusted by sliding;Among them, the “power” in the 1~10 levels respectively correspond to the bone density pictures “D4~D1”...
  • Page 14 the same bone cutting mode 7.1.3 Description of Endo function: Fig.11 As shown in Fig. 11, when the mode name "Endo" is selected in the green frame, the device is in theEndo mode; in this mode, the function buttons are the same as the bone mode.
  • Page 15 Figure 13, can adjust the output of quantitative water each time you step on the pedal. 7.2 Description of the display and functions There are three functions of bone root, clean for this Surgic smart . In bone function, both the water and power model are available.Ten power levels as follows: In this function, both the water and power model are available, one model as follow:Perio.
  • Page 16 7.3 Safety requirements during use. Do not use the Surgic smart on patients with pacemakers or other implantable electronic devices. This requirement also applies to the operator. The high-frequency vibrations and wear may, very occasionally, lead to breakage of the tip. Tips of which the shape has been changed or which are otherwise used.
  • Page 17 7.5 Instruction for use 7.5.1 Open the air intake on the drip system; 7.5.2 Screw the chosen tip onto the Surgic smart handpiece until it is flush against it; 7.5.4 Make sure that the Surgic smart handpiece is correctly connected to the 7.5.5 Check the display to see the type of power that has been set.
  • Page 18 founction foot pedal for selecting, depending on the type of function that has been set; 7.5.7 Check the display to see the delivery rate of the peristaltic pump, if the delivery rate required is other than the level that has been set, use the key “Water”on Multi-founction foot pedal to choose, depending on the type of function that has been set.
  • Page 19 7. Tip holder, 8. Silica gel support for the handpiece, 9. Sterilize box. Unless otherwise stated, they will be hereinafter referred to as “products”. reduce the life span of products. And in such cases, the manufacturer takes no responsibility. The products have been designed for a large number of sterilization cycles. The materials used in manufacture were selected accordingly.
  • Page 20 permeability; ensure cleanliness and prevent the introduction of contaminants; 8.2 Preparation before cleaning Tools: Ultrasonic bone surgery torque wrench, tray, soft brush, clean and dry soft cloth 1. Adjust the machine to the cleaning mode, step on the pedal for 3s to start the cleaning procedure;...
  • Page 21 15883. • There should be a flushing connector connected to the inner cavity of the product. • Do not clean the handpiece with ultrasound. It is recommended to use a washer-disinfector in accordance with EN ISO 15883. the next section «Disinfection». deionized water or multi-enzyme.
  • Page 22 precautions. together. minutes, wash for another 5 minutes, and rinse it for twice with each rinse lasting solution used can be pure water, distilled water, deionized water or multi-enzyme of cleaner, the concentration and time provided by manufacturer shall be obeyed. is in accordance with the European Pharmacopoeia or the United States 8.5 Drying If your cleaning and disinfection process does not have an automatic drying...
  • Page 23 In this chapter, we only check the appearance of the products. After inspection, if there is no problem, the handpiece should be immediately reassembled, installing tighten the cone head clockwise. 1. Check the products. If there is still visible stain on the products after cleaning/ disinfection, the entire cleaning/disinfection process must be repeated.
  • Page 24 damage to the product; recommended to sterilize with other sterilization procedures such as ethylene oxide, formaldehyde and low temperature plasma sterilization. The manufacturer assumes no responsibility for the procedures that have not been recommended. If you use the sterilization procedures that have not been recommended, please Fractional pre-vacuum procedure = steam sterilization with repetitive pre- vacuum.
  • Page 25 install and store in shade. 9.2 Do not mix with poison, causticity, explosive and combustible things together. 9.3 This equipment should be stored in a room where the relative humidity is 10% ~ 93%, atmospheric pressure is 70kPa to106kPa, and the temperature is 9.4 If the device is not used for a long time running, it is better to connect the electricity and water one time per month, 5 minutes per time.
  • Page 26 12.1 Sharp tips effectively. Sharp tips are used in osteotomy and osteoplasty when a fine and with sharp edges for osteoplasty techniques and for removing bone fragments. 12.2 Smoothing tips The smoothing tips have surfaces shaped in such a way that they can be used to work the bone structures with precision and in a controlled manner.
  • Page 27 Contact the nearest on the rear of the device The foot pedal will not dealer or authorized properly. work. Woodpecker service centre. A faint whistle can be heard coming from The tip is not correctly Unscrew the tip and the Surgic Touch Pro...
  • Page 28 Cord not connected to the Connect the cord to the device. device. Contact the nearest dealer or authorized in the cord. Woodpecker service The device is switched centre. on but will not work, the Contact the nearest message WARN appears dealer or authorized Handpiece failure.
  • Page 29 Contact the nearest No liquid comes out of dealer or authorized The handpiece is clogged. the tip during operation. Woodpecker service centre. The device is working Too much pressure by the Check that the tube in properly, but the pump is...

  • Page 30: After Service

    Woodpecker state that the we can provide circuit diagrams, component lists, drawings, calibration details, or other information to help maintenance personnel repair Surgic smart components that can be repaired by maintenance personnel designated as required. Please dispose according to the local laws.
  • Page 31 The warranty is valid only if the warranty slip enclosed with the product has been completed in full and returned to us or, if appropriate, to your WOODPECKER dealer or importer within 20 days from the date of purchase, as proven by the consignment note/invoice issued by the dealer/importer.
  • Page 32 In the event of failure due to accidents or improper use, or if the warranty has lapsed, repairs to WOODPECKER produces will be charged on the basis of the actual cost of the materials and labour required fro such repairs.
  • Page 33 61000-3-2 purposes. Complies emissions lEC 61000-3-3 The models Ai-surgrey, Surgic smart are intended for use in the electromagnetic Surgic smart should assure that they are used in such an environment. IEC 60601 Compliance Electromagnetic environment - Immunity test...
  • Page 34 NOTE U is the a.c. mains voltage prior to application of the test level. The models Ai-surgrey, Surgic smart are intended for use in the electromagnetic Surgic smart should assure that they are used in such an environment. IEC 60601 test...
  • Page 35 150 kHz to 80 communications equipment IEC 61000-4- should be used no closer to any part of the models Ai- surgrey, Radiated RF and amateur Surgic smart, including lEC 61000-4- and amateur radio bands cables, than the recommended radio bands separation distance calculated 80 MHz to 2.7...
  • Page 36 Ai-surgrey, Surgic smart is used exceeds the applicable RF compliance level above, the models Ai-surgrey, Surgic smart should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the models Ai- surgrey, Surgic smart.
