Woodpecker Fi-G Instruction Manual

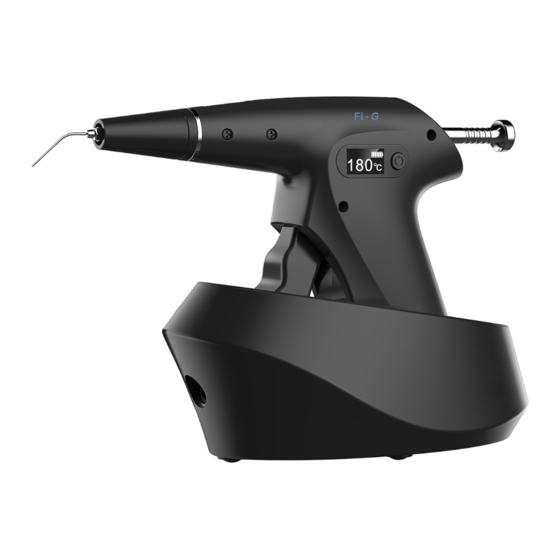

Hot melting and filling gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fi-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Woodpecker Fi-G

Summary of Contents for Woodpecker Fi-G

  • Page 2: Table Of Contents

    Contents (Fi-G) Introduction -------------------------------------------------------1 1 Product introduction -------------------------------------------1 2 Standard icons --------------------------------------------------9 3 Contraindications ----------------------------------------------9 4 Installation and disassembly method of accessories ------9 5 Operation method --------------------------------------------11 6 Charging instruction ----------------------------------------- 13 7 Safety precautions ------------------------------------------- 13 8 Maintenance -------------------------------------------------- 14...

  • Page 3: (Fi-G) Introduction

    1.2 Diagram of components and control buttons The Fi-G is equipped with a display screen and a control button on both the left and right sides. And the design of left and right sides are perfectly symmetrical, which enables either left-hand or right-hand...
  • Page 4 1. Gutta-percha injection needle 2. Heat insulation sleeve for injection needle 3. Heat insulation hood 4. Gutta-percha loading slot 5. Battery level 6. Temperature 7. “ON/OFF” button 8. Pushing ram 9. Battery cover 10. Charging indicator 11. Charging base 12. Power adapter plug 13.
  • Page 5 2) Temperature control button: ( Note: The temperature control button and the “ON/OFF” button are the same button. After powers on, the button acts as temperature control button. ) Lightly press the button to change the preset temperature for heating the gutta-percha.
  • Page 6 screen will display the real-time temperature inside heating chamber. When the Melting and Filling Gun is in the heating state, the temperature indicator will simultaneously display the current temperature. 5) Charging base: Firstly, connect the power adapter plug to the power adapter as shown in Figure 2.
  • Page 7 8) Gutta-percha injection needle Before use, the gutta-percha injection needle and the Fi-G must be connected and tightened with the wrench provided by our company to prevent the injection needle from falling off or the gutta-percha leakage during use.
  • Page 8 clean, disinfect and sterilize the gutta-percha injection needle. It is recommended that users follow manufacturer's written instructions to properly disinfect the device; the Melting and Filling Gun cannot be autoclaved. Do not autoclave the Melting and Filling Gun and charging base or place them in chemical disinfectants.
  • Page 9 Melting and Filling Gun will automatically shut down. 1.4.2 Scope of application: Only used in endodontic filling with gutta-percha or root canal sealant. Fi-G is equipped with gutta-percha injection needle and heat insulation hood to heat up and soften gutta-percha to backfill root canal. 1.5 Product specifications Melting and Filling Gun 31.9mm×152.5mm×114.9mm...
  • Page 10 Optional preset 150℃→180℃→200℃→230℃ temperatures Time consumption for About 2.5h (First charging needs 3 h) charging AC100V-240V 50/60Hz Input 800mA Power supply Output DC15V/1.6A Battery capacity Chargeable battery 2000mAh 1.7 Environmental parameters Temperature +5℃ ～ +40℃ Working condition Humidity 30% ～ 75% Air pressure 70kPa ～...

  • Page 11: Standard Icons

    2 Standard icons Product serial number Follow Instructions for Use Manufacturer Date of manufacture Type B applied part Class II device Power switch Ordinary equipment Device complies with Used indoor only WEEE directive Can be autoclaved DC 15V Attention! Please refer to the accompanying documents. Humidity limit for storage: 10% ~ 93% Atmospheric pressure for storage: 70kPa ~ 106kPa Temperature limit for storage: -20℃...
  • Page 12 connect the input point to the socket that meets the standard of this power adapter. Please install in accordance with the procedures in Figure 2, Figure 3, and Figure 4. 4.2 Installation, disassembly and pre-bent of gutta-percha injection needle Note: In order to prevent from scalding, when replace the gutta-percha injection needle, please first power off and wait for 5 minutes.

  • Page 13: Operation Method

    5 Operation method Note: During use, please do not contact the heating part of the Melting and Filling Gun. Before use, remember to install the heat insulation hood to prevent users or patients from scalding. 1. Choose gutta-percha injection needle Choose suitable gutta-percha injection needle (20ga, 23ga or 25ga) according to the situation of patient.
  • Page 14 One second after setting suitable temperature, the display screen will automatically skip to display the actual heating temperature. And it will heat up until reach the preset temperature. Pull the trigger to push the pushing ram forward until there is a small amount of extrusive gutta- percha in the needle.

  • Page 15: Charging Instruction

    6 Charging instruction 6.1 Use corresponding charging base for charging: Connect the power adapter to the charging base, and connect to power supply. And then correctly place the Melting and Filling Gun in the charging base. When the Melting and Filling Gun is not placed on the charging base, the indicator will flashes in yellow and green alternately.

  • Page 16: Maintenance

    We are only responsible for the safety on the following conditions: a) The maintenance, repair, and modification are made by the manufacturer or the authorized dealers. b) The charged components are original of “Woodpecker” and operated according to instruction manual. 8 Maintenance 8.1 cleaning, disinfection and sterilization...
  • Page 17 Melting and Filling Gun. Please take care not to add any cleaning agent or chemicals to the cleaning brush. 5) Pushing ram Use sterile alcohol and gauze to remove any visible residue. 6 ) The gutta-percha injection needle, heat insulation hood, and wrench can be cleaned with clean water as well as can be cleaned in an ultrasonic cleaner;...

  • Page 18: Troubleshooting

    9 Troubleshooting Fault Cause Solution After pressing 1. Inadequate battery power 1. Connect to power the “ON/OFF” 2. Battery is damaged. supply to charge. / button, the 3. The charging interface is Replace the battery. device is still short-circuited, causing the 2.

  • Page 19: After-Sales Service

    Charging 1. The power supply is not 1. Unplug and reconnect. failure after correctly connected; 2. Replace the battery. connecting to 2. The power supply is 3. Wipe the thimble power supply. damaged, or the specification with alcohol, dry it, and doesn’t match.

  • Page 20: Environment Protection

    12 Statement Woodpecker reserves the right to change the design of the equipment, the technique, fittings, instruction manual and the content of the original packing list at any time without further notice. The pictures are only for reference.

  • Page 21: (Fi-P) Introduction

    Introduction Thank you for purchase Fi-P Heating and Packing Instrument developed by Guilin Woodpecker Medical Instrument Co., Ltd, a Hi-tech enterprise developing, manufacturing, and selling dental instruments. Woodpecker has excellent Quality Control System. To guarantee correct and safe operation, please read this Instruction Manual carefully before use.Depending on the level of risk involved, safety requirements are...
  • Page 22 1. “ON/OFF” button 2. Heating button 3. Heat insulation sleeve 4. Tip 5. Connecting hole for power adapter 6. Temperature 7. Battery level 8. Charging base 9. Battery cartridge 10. Charging indicator 11. Power adapter plug 12. Power adapter 1 ) “ON/OFF” button: Under shutdown state, shortly press “ON/OFF”...
  • Page 23 space status (completely no power) before charge, which will shorten the service life of battery. Warning: If the device has not been used for more than one month, the battery needs to be recharged. If the device is not in use for a long time, please be sure to charge it at least once a month to protect the battery.
  • Page 24 Figure 2 Installation of power adapter Figure 3 Connection to power supply Figure 4 Charging 1.3 Device includes 1. Heating and Packing Instrument 2 . Charging base 3. Power adapter with cord 4. Tips (The models are as shown in Table 2) 5.
  • Page 25 temperature. d) Four preset temperatures are for option: 150℃, 180℃, 200℃, 230℃ . e) If there is no operation for 10 minutes, the Heating and Packing Instrument will automatically shut down. 1.4.2 Scope of application: Used in the root canal obturation stage in endodontic treatment. 1.5 Product specifications Heating and Packing Instrument 23.8mm×158.3mm×23.8mm Size...

  • Page 26: Standard Icons

    -20℃ ~ +55℃. 4. Please avoid the device from strong shock or vibration during transport. And please handle it carefully. 5. Please do not mix the device with hazardous articles during transport. 6. Please avoid the device from sun, rain, and snow during transport. 2 Standard icons Product serial number Follow Instructions for Use...

  • Page 27: Installation And Disassembly Method Of Accessories

    4 Installation and disassembly method of accessories 4.1 Connection of power adapter Connect the output point of power adapter to the charging base, and connect the input point to the socket that meets the standard of this power adapter. Please install in accordance with the procedures in Figure 2, Figure 3, and Figure 4.

  • Page 28: Operation Method

    Note: When removing the battery, the screw under the battery barrel (pointed by the arrow in Figure 9) does not need to be unscrewed,just push the connector slightly inward to remove the battery. Figure 9 Replacement of battery 5 Operation method 1.

  • Page 29: Safety Precautions

    The operator should replace the tip in time according to the clinical conditions; 11. After operation, please turn off the power immediately. Woodpecker is specialized in producing medical instrument. We are only responsible for the safety on the following conditions: a) The maintenance, repair, and modification are made by the manufacturer or the authorized dealers.

  • Page 30: Troubleshooting

    3. If the other accessories need to be cleaned or disinfected, please use gauze to pick up a small amount of water or disinfectant to wipe the surface. Do not soak. 4. Do not use volatile and diffluent solvents for cleaning, which will damage the surface of the device or cause the markings on the machine to fade.

  • Page 31: After-Sales Service

    The device does not contain any harmful ingredients. It can be handled or destroyed in accordance with the relevant local regulations. Note: 1 ) Without Woodpecker agreement and authorization, private modification of device may result in the electromagnetic compatibility problem of that device or other devices.

  • Page 32: Statement

    12 Statement Woodpecker reserves the right to change the design of the equipment, the technique, fittings, instruction manual and the content of the original packing list at any time without further notice. The pictures are only for reference. The final interpretation rights belong to Guilin Woodpecker...
  • Page 33 ZMN/WI-09-458 V1.3- 20190603...
