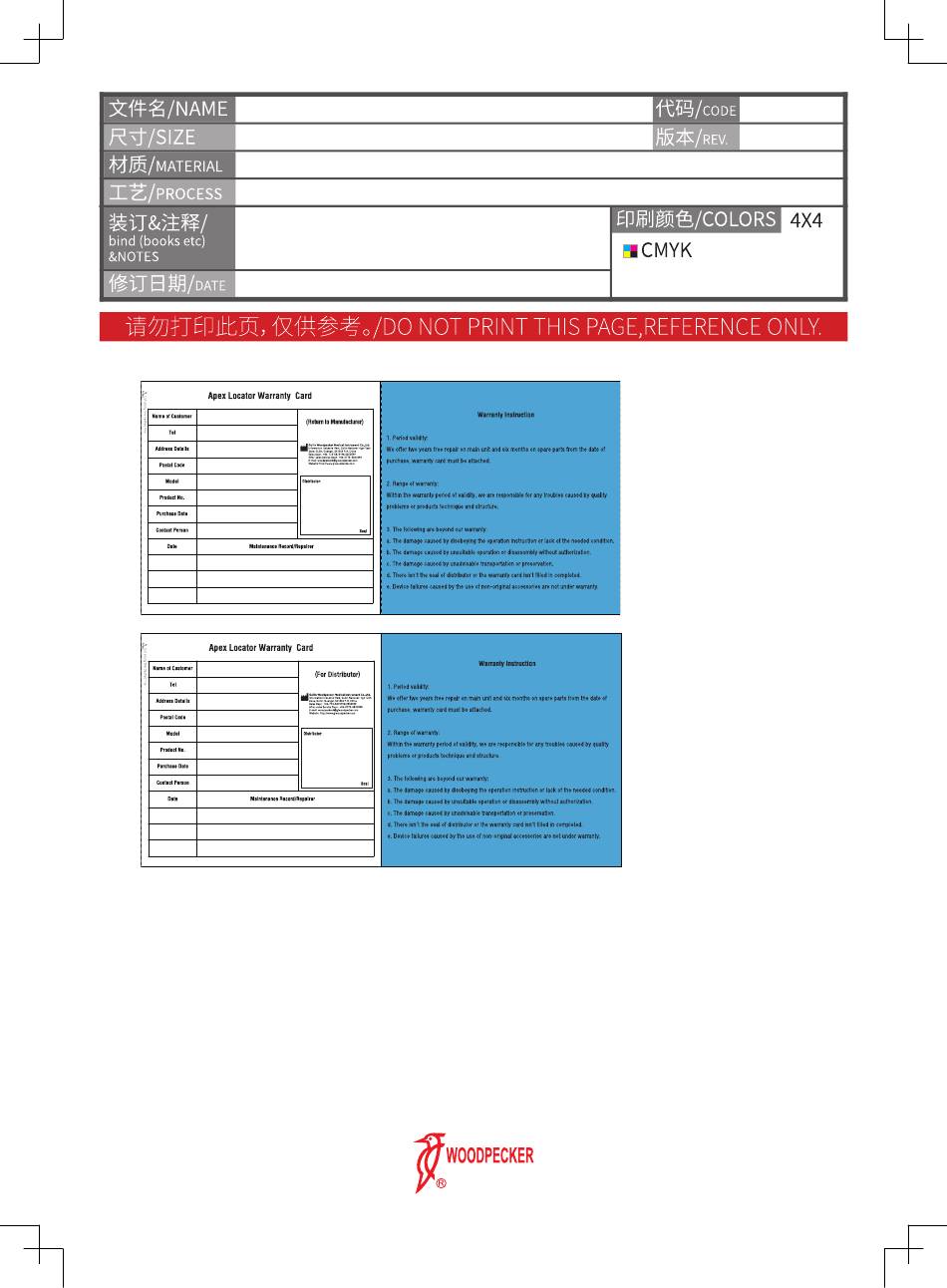

根管长度测量仪英文说明书 Woodpex Ⅹ CE 无 Logo 1.3 版 2406111 14.02.04.033
150×140mm, 出血 6mm
120g 铜版纸
/
骑马订；
保修卡正反面印刷需对应。
2024.06.11
14.02.04.033
V1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Woodpex X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Woodpecker Woodpex X

Summary of Contents for Woodpecker Woodpex X

  • Page 1 根管长度测量仪英文说明书 Woodpex Ⅹ CE 无 Logo 1.3 版 2406111 14.02.04.033 14.02.04.033 150×140mm, 出血 6mm V1.3 120g 铜版纸 骑马订； 保修卡正反面印刷需对应。 2024.06.11...

  • Page 3: Table Of Contents

    Catalog 1 Introduction ....................1 2 Notice of installing and using the device ............ 4 3 Installation of the device ................6 4 Product function and operation ..............13 5 Trouble shooting ..................18 6 Cleaning, Disinfection and Sterilization ............ 20 7 Storage, maintenance and transportation ..........

  • Page 4: Introduction

    1 Introduction 1.1 Foreword Guilin Woodpecker Medical Instrument Co., Ltd. is a professional manufacturer in re- searching, developing and producing dental equipment which has a wholesome quality assurance system. Products include ultrasonic scaler, curing light, apex locator and ultrasurgery, etc.
  • Page 5 APEX OVER Picture 1 1.4.2 Pictures of the main accessories ( Picture 2 ) Measuring wire File clip Touch probe Adapter(Optional) Endodontic explorer(Optional) Charging cable(Optional)
  • Page 6 Battery Tester Lip hook Picture 2 1.5 Structure Is composed of main unit, measuring wire, lip hooks, file clip, touch probe, Adapter(Op- tional), Charging cable(Optional) and Endodontic explorer(Optional), etc. 1.6 Intended use This equipment applies to the measurements below: 1.6.1 Used to help determine the working length of various types of dental root canals dur- ing root canal treatment.

  • Page 7: Notice Of Installing And Using The Device

    Input: ~100V-240V 50Hz/60Hz 0.4A MAX Output: DC5V/1A 1.9.3 Consumption power: ≤0.5W 1.9.4 Screen: 3.8’’ LCD 1.9.5 Buzzer alert: The buzzer will alert when the endo file is close to the apex. 1.9.6 Release software version: V1 1.9.7 Operation condition a) Environment temperature: +5℃~+40℃ b) Relative humidity: 30% ~75%.
  • Page 8 2.16 The guarantee is valid for normal usage conditions. Any disassembly will render the guarantee void, the professionals of Woodpecker company will offer the repair service during guarantee period. 2.17 Any modification will render the guarantee void and may cause harm to the patient.

  • Page 9: Installation Of The Device

    2.19 Not to position equipment to make it diffcult to operate the disconnection device. 2.20 The adapter must be connected to an appropriate power source in the instructions. 2.21 Error in replacing lithium batteries can lead to unacceptable risks, so use the original lithium battery and replace the lithium battery according to the correct steps in the instruc- tions.
  • Page 10 Motor, please connect the white end with the lip hook and the gray end is suspended. Picture 3 Picture 4 Attention: Be sure not to pull the wire when inserting or pulling out the the measuring wire and the file clip. [Picture 4 (a)] Correct operation showed as in picture 4 (b).
  • Page 11 sure the connection icon on the LCD screen shows steadily [as showed in Picture 6], oth- erwise, it means that the file clip or the measuring wire is damaged, should be replaced. 3.1.3 Determine the working length a) When the indicating bar reaches the position of the dial 0.0[Picture 7(a)], [Picture 7(b)] and there is “APEX”...
  • Page 12 Picture 8 3.1.5 Testing the device by tester (Test every two weeks) Users can use the tester to check if the device work properly, specific operation is as fol- lows: a) Pulling out the the measuring wire and turn off the device. Mode APEX Picture 9...
  • Page 13 b) Insert the tester. c) After powered on, If the indicating bar indicates within ±1 bars away from the dial 0.0 the device functions normally [Picture 9]. If the indicating bar is outside the range, the de- vice cannot measure accurately. On this occasion, please contact authorized distributor or manufacturer for help.
  • Page 14 cannot communicate with the Endo Motor. ③ After plugging the USB wire into the USB socket, please do not drop anything on it, and do not hit the USB socket. 3.2 The Micro Hole Negotiator (MHN) Mode (Match only device with endodontic explorer) The MHN mode is designed to aid clinicians in three key areas during root canal treat- ment: A) Locating the pulp chamber when preparing an access cavity with the aim of reducing...
  • Page 15 3.2.1 Locating the Pulp Chamber Method of operation: 1. Start to prepare an access cavity through enamel and dentin using an appropriate bur. 2. Isolate the tooth and dry the access cavity to ensure accurate readings. 3. Attach the lip hook to the patient and the probe clip to a endodontic explorer DG 16, etc.).

  • Page 16: Product Function And Operation

    dentin with an ultrasonic device or carefully examine other areas where the orifice may lie. b) Reading 2.00 to 3.00: indicates a connection and the potential location of the orifice. The dentin at the location should be removed ultrasonically to reveal the canal orifice. c) Reading above 3.00: indicates the location of the orifice.
  • Page 17 al has been cleaned. It is also necessary to get rid of the pulp and necrosis tissue. 4.1.8 The following cases are not suited for a normal measurement: a) The size of the root similar to the size of apical foramen. In this case, the measurement result of the length of the root canal will be shorter than its real because of the hypoplasia of the root [Picture 12].
  • Page 18 It will cause an inaccuracy when the endo file touches metal crown [Picture 17]. metal crown condensation Picture 15 Picture 16 Picture 17 Sometimes, the results of the Apex Locator and X-rays do not meet each other, which is neither bdcause the machine is not normal, nor the photo is incorrect taken.The actual position of the apical foramen is different from the anatomical one, it is very common that the apical foramen slightly to the side of the root canal crowns.
  • Page 19 Picture 18 Picture 19 Picture 20 Attention: a) When gripping the root canal with a canal file, please grip the upper of the metal part (near the root canal at the needle handle). If you grip the lower part (blade or moving part), it will wear the file clip.
  • Page 20 Picture 21 Picture 22 4.2.5 When the file reaches the apex, adjust the rubber piece set on the endo file to the reference point (incisal edge or fossa edge), then pull out the endo file, measure the length between the top of the file and the rubber piece, and this is the working length of the tooth. It also can be use with the touch probe instead of file clip, when it is inconvenient to meas- ure the back teeth [Picture 23].

  • Page 21: Trouble Shooting

    until you hear a “beep”. b. The device with Micro Hole Negotiator (MHN) mode, long-press the adjustment button until you hear a “beep” . It indicates a successful adjustment of the sleep duration. There are three sleep durations adjustable: 10 min, 20 min, and 30 min. The default setting sleep times is 20 min 4.2.9 Adjust the sound level.
  • Page 22 Problems Possible cause Solutions If the connection between the lip Make sure the lip hook has contacted the oral hook and the oral mucosa is ok? mucosa at a good position. Blood, liquid overflow from the root canal, Is there a blood/saliva overflowing, glued to the crown or the tooth neck, will glued to the crown? cause short-circuit then cause the in-normal...

  • Page 23: Cleaning, Disinfection And Sterilization

    Problems Possible cause Solutions If there has cysts, the length of root canal can’t Are there cysts apical? Display not steady while be measured accurately. measuring: the measurement Whether the file clip is not clean or result is rather longer or Clean the file clip by alcohol, or replace it.
  • Page 24 may influence the result of the reprocessing process. Store the instruments in a humid sur- rounding. 6.2 Transportation: Safe storage and transportation to reprocessing area to avoid any damage and contamina- tion to environment. 6.3 Preparation for Decontamination: The devices must be reprocessed in a disassembled state. 6.4 Pre-Cleaning: Do a manual pre-cleaning, until the instruments are visually clean.
  • Page 25 • Emptying The automated cleaning processes have been validated by using 0.5% neodisher Medi- Clean forte (Dr. Weigert). Note Acc. to EN ISO 17664 no manual reprocessing methods are required for these devices. If a manual reprocessing method has to be used, please val- idate it prior to use.

  • Page 26: Storage, Maintenance And Transportation

    Storage of sterilized instruments in a dry, clean and dust free environment at modest tem- peratures, refer to label and instructions for use. 7 Storage, maintenance and transportation 7.1 Storage 7.1.1 This equipment should be stored in a room where the relative humidity is 10% ~ 93%, atmospheric pressure is 70kPa to106kPa, and the temperature is -20°C ~ +55°C.

  • Page 27: Environmental Protection

    7.3.1 Excessive impact and shake should be prevented in transportation. Lay it carefully and lightly and don’t invert it. 7.3.2 Don’t put it together with dangerous goods during transportation. 7.3.3 Avoid solarization and getting wet in rain and snow during transportation. 8 Environmental protection Please dispose according to the local laws.

  • Page 28: Statement

    Avoid using the device in high electromagnetic environment. Guidance and manufacturer’s declaration - electromagnetic emissions The model Woodpex X is intended for use in the electromagnetic environment specified below. The customer or the user of the model should assure that it is used in such an environment.
  • Page 29 Guidance & Declaration - electromagnetic immunity The model Woodpex X is intended for use in the electromagnetic environment specif ied below. The customer or the user of the model Woodpex X should assure that they are used in such an environ- ment.
  • Page 30 Guidance & Declaration - Electromagnetic immunity The model Woodpex X is intended for use in the electromagnetic environment specif ied below. The customer or the user of that the model Woodpex X should assure that it is used in such an environ- ment.
  • Page 31 61000-4-6 6 Vrms in ISM equipment should be used no closer to any 6 Vrms in ISM and amateur radio part of the model Woodpex X, including bands bands cables, than the recommended separation dis- Radiated RF 3 V/m...
  • Page 32 RF communications equipment and the model Woodpex X The model Woodpex X is intended for use in electromagnetic environment in which radi- ated RF disturbances is controlled. The customer or the user of the model can help prevent...
  • Page 33 Apex locator system. A list of all cables and maximum lengths of cables is as follows, transducers and other accessories with Guilin Woodpecker Medical Instrument Co., Ltd. claims compliance with the requirements of Emission and Immuni- ty.
  • Page 34 4. Cautions: The use of accessories, transducers and cables other than those specified, with the exception of transducers and cables sold by Guilin Woodpecker Medical Instrument Co., Ltd. as replacement parts for internal components, may result in increased Emissions or decreased Immunity of the model.
