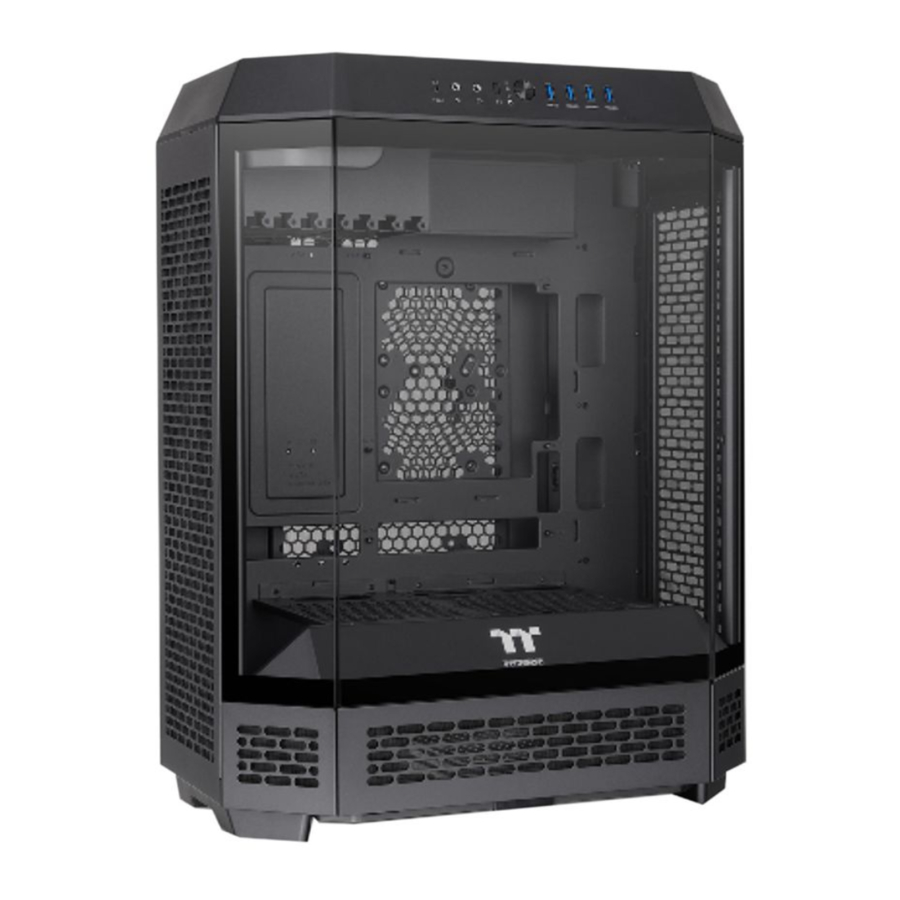

Thermaltake TOWER 600 Manual

SETUP

1. Remove the top cover by pulling up at the cutout on the back of the case.

2. For more space to access the I/O cutouts, remove the back panel by pulling on the notch at the top of the back panel.

3. Loosen the 2 thumb screws to swing the top fan bracket latch open to access the I/O ports from the top.
   Disconnect any fan cables as needed to fully remove the top fan bracket.

4. Feed your cables through the cutouts on their corresponding sides.

5. Connect your peripherals into the corresponding port(s) in the motherboard I/O.


** Images for reference only. Port layouts may vary based on the included components

For monitors and displays, connect directly to the appropriate port(s) on the graphics card/GPU.
Do NOT plug your monitor into the graphics port(s) on your motherboard, as it is disabled when a graphics card is installed in your system.

EXAMPLE OF FINAL CABLE WIRING ROUTE

NEED ADDITIONAL HELP? CONTACT US:
Monday through Friday
9:00am - 5:30pm PT

888 - 570 - 5247
ttsupport@thermaltakeusa.com
