Join Tt Community To Receive Benefits
As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
Benefits of being a member:
- Quick and responsive user support
- Receive help and advice with new builds
- Keep up to date with new product releases
- Share your thoughts and builds with the community
- Enter monthly contests and giveaways

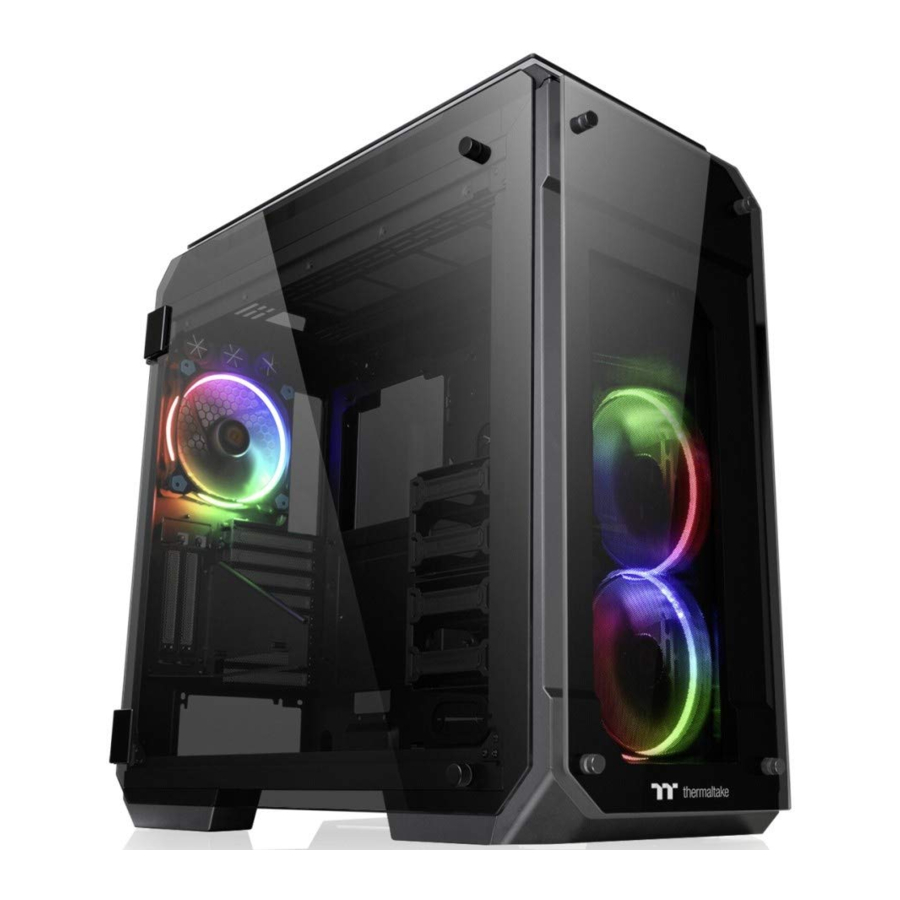

Accessory
Side Panels Disassembly
Remove the screws on the back of the chassis, and open the side panel
Power Supply Unit (PSU) Installation
Place the PSU in proper location.
Motherboard Installation
- Lay down the chassis.
- Install the motherboard in proper location and secure it with screws.
3.5" & 2.5" HDD Installation
Type A
Type B
- Pull the HDD tray out.
- Place the 2.5" or 3.5" hard drive on the tray and secure it with screws.
- Slide the HDD tray back to the HDD cage.
PCI Card Installation
Type A
Type B (Optional)
Extend installing to Motherboard
※PCI-E Cable Not Included
Air Cooling Installation
Liquid Cooling Installation
Radiator installation guide
Maximum Radiator Installation Notice
Top Radiator Installation Notice
* Please consult radiator & memory height for proper installation
Radiator: 360mm x 64mm
Radiator: 420mm x 55mm
Leads Installation
Leads Installation Guide
Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.
USB 2.0 Connection / Please consult your motherboard manual to find out the section of "USB connection".
USB 3.0 connection /
- Make sure your motherboard supports USB 3.0 connection.
- Connect the USB 3.0 cable to the available USB 3.0 port on your computer. Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual. Please select the motherboard which used AC'97 or HD Audio (Azalia),(be aware of that your audio supports AC'97 or HD Audio (Azalia)) or it will damage your device(s).
Specification
Warning and Notice
CPU Cooler Height Limitation: Please ensure that your CPU cooler does NOT exceed 190mm (7.48 inches) height. VGA (Add-on card) Length Limitation: Please ensure that your VGA (Add-on card) does NOT exceed 310mm (12.2 inches) length.
