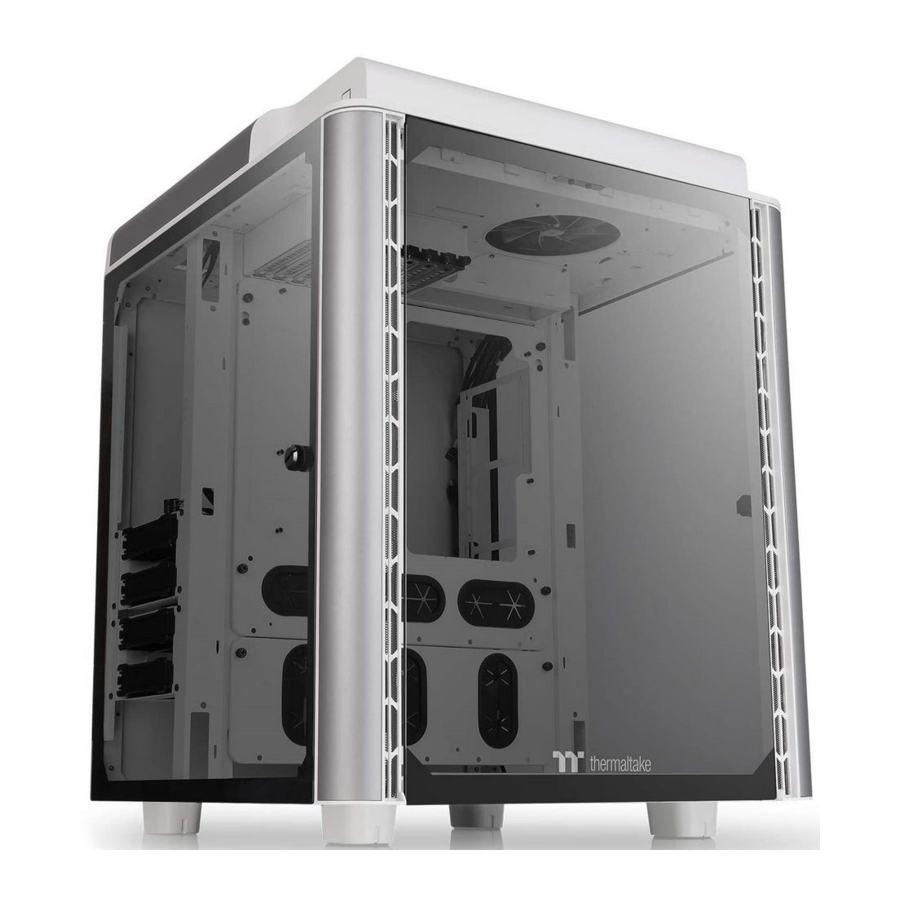

Thermaltake LEVEL 20HT, LEVEL 20 HT SNOW - Pc Case Manual

Table of Contents

Contents

1 TT Premium
2 Join Tt Community To Receive Benefits
3 Specification
4 Accessory
5 Side Panels Disassembly
6 Power Supply Unit (PSU) Installation
7 Motherboard Installation
8 3.5" & 2.5" HDD Installation
9 PCI Card Installation
10 Air Cooling Installation
11 Liquid Cooling Installation
12 Pump Installation
13 Leads Installation
14 Thermaltake Power Supply Series (Optional)
15 Tt RGB Plus Ecosystem
16 Warning and Notice
17 Documents / Resources
- 17.1 References
- 17.2 Download manual

TT Premium

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee Of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative thermaltake brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://ttpremium.com

Join Tt Community To Receive Benefits

As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join Our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways

Brand official website
http://www.thermaltake.com/
Global Facebook
https://wvvw.facebook.com/Thermaltakelnc
Taiwan Facebook
https://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com

Specification

Model	Level 20 HT	Level 20 HT Snow
Case Type	Super Tower
Chassis Dimension	613 x 468 x 503 mm (24.13 x 18.43 x 19.8 inch)
Color	Exterior & Interior: Black	Exterior & Interior: White
Cooling System	Top (exhaust): 2 x 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays Accessible Hidden	4 x 3.5" or 2.5" (With HDD cage) 1 x 2.5" (With HDD Bracket)
Expansion Slots	8
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro MX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)
I/O port	1 xrype-c, 2x USB 2.0, 2XUSB 3.0, 1 XHD Audio
PSU	Standard PS2 PSU (optional)
Fan Support	Left Side: 3 x 120mm, 2 x 140mm Right Side: 3 x 120mm, 2x 140mrn Top: 2 x 120mm, 2 x 140mm Rear: 2 x 120mm, 2 x 140mm Bottom: 3 x 120mm
Radiator Support	Left/ Right Side: 1 x, 1 x 280mm Bottom: 1 x 360mm
Clearance	CPU cooler height limitation: 260mm VGA length limitation: 400mm PSU length limitation: 200mm

Accessory

Side Panels Disassembly

Side Panels Disassembly
Remove the screws on the back of the chassis, and open the side panel

Power Supply Unit (PSU) Installation

Place the PSU in proper location.
Adjust the PSU supporting bridge to the proper location and secure the PSU with screws.

Motherboard Installation

Motherboard Installation
Install the motherboard in proper location and secure it with screws.

3.5" & 2.5" HDD Installation

Type A: HDD Installation (With HDD cage)

For 3.5" HDD: Secure 3.5" HDD from both side of the HDD tray by locking clips.
For 2.5" HDD: Secure 2.5" HDD from the bottom of the HDD by screws.

HDD Cage Installation

Type B: 2.5'' HDD Installation

PCI Card Installation

PCI Card Installation
Insert the PCl card into the PCl slot, and secure it with screw.

Air Cooling Installation

Air Cooling Installation
Left Side:
3 x 120mm
2 x 140mm
Right Side:
3 x 120mm
2 x 140mm
Top:
2 x 120mm
2 x 140mm
Rear:
2 x 120mm
2 x 140mm
Bottom:
3 x 120mm

Liquid Cooling Installation

Liquid Cooling Installation
Left / Right Side:
1 x 360mm
1 x 280mm
Bottom:
1 x 360mm

Pump Installation

Leads Installation

Leads Installation Guide

Case LED Connection / On the front of the case, you can find some LEDs and switch leads. Please consult your user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard.
USB 3.0 connection /
1. Make sure your motherboard supports USB 3.0 connection.
2. Connect the USB 3.0 cable to the available USB 3.0 port on your computer.
Audio Connection / Please refer to the following illustration of Audio connector and your motherboard user manual. Please select the motherboard which used AC'97 or HD Audio(Azalia) aware of that your audio supports AC'97 or HD Audio (Azalia)) or it will damage your device(s).

Thermaltake Power Supply Series (Optional)

What is Smart Power Management (SPM)?
Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms — DPS G pc APP 3.0, DPS G Smart Power Management Cloud 1.O and DPS G Mobile APP 1.O- and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!

Thermaltake has several power supply product lines; please refer to our official website and Facebook Fan Page for more detail information!
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/Thermaltakelnc
Taiwan Facebook
https://www.facebook.com/ThermaltakeTW

Learn more about SPM

Tt RGB Plus Ecosystem

Learn about TT RGB Plus

Warning and Notice

CPU Cooler Height Limitation: Please ensure that your CPU cooler does NOT exceed 260 mm (9.8 inches) height. VGA (Add-on card) Length Limitation: Please ensure that your VGA (Add-on card) does NOT exceed 400 mm (23.2 inches) length.
