Congratulations on your new PC! Accessing the I/O panel and connecting your
peripherals to the Tower 600 case is easy! Follow along this guide to learn how:

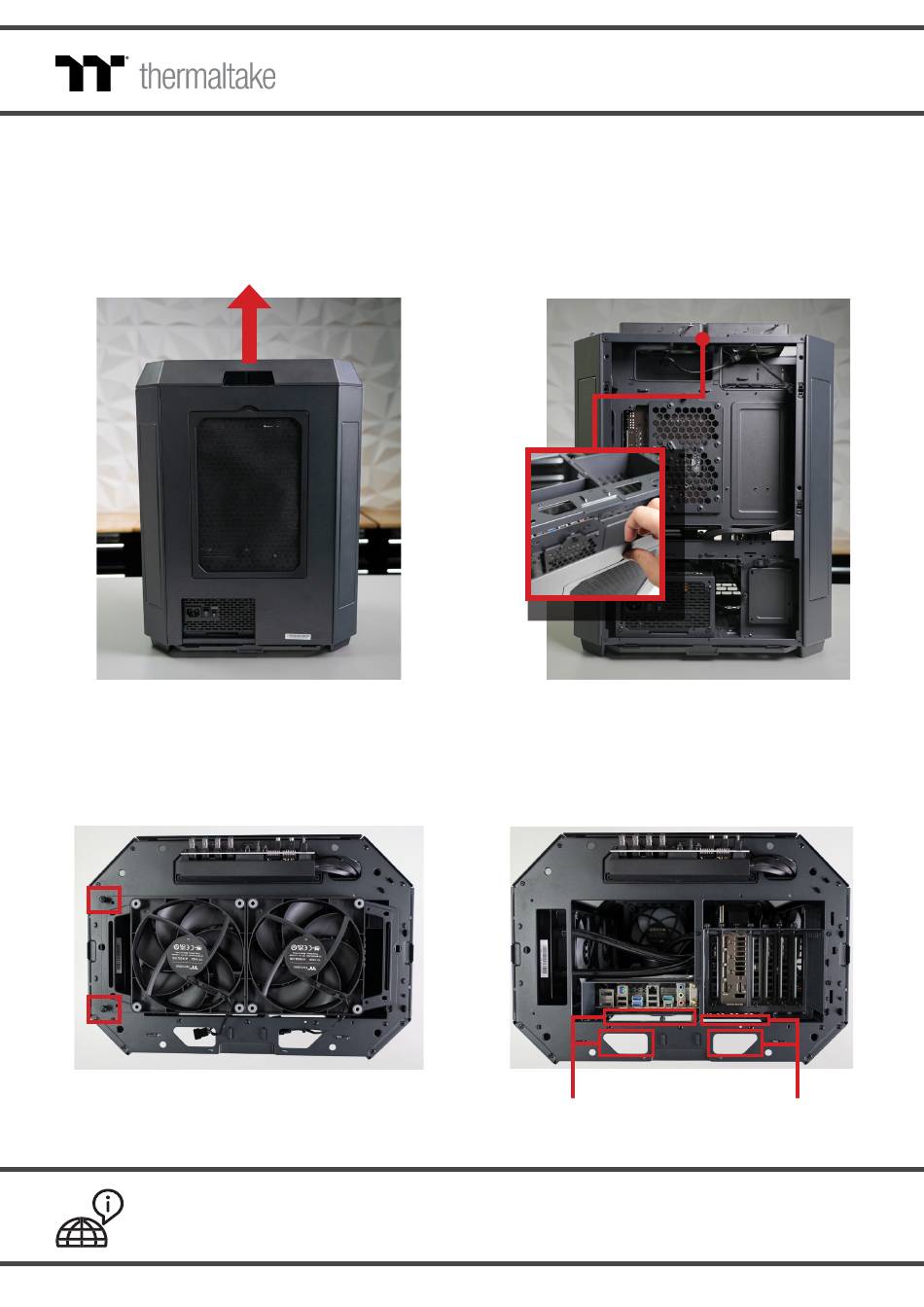

STEP 1
Remove the top cover by pulling up at
the cutout on the back of the case.
STEP 3
Loosen the 2 thumb screws to swing
the top fan bracket latch open to access
the I/O ports from the top.
FRONT
Disconnect any fan cables as needed to
fully remove the top fan bracket.
NEED ADDITONAL HELP? CONTACT US:
Monday through Friday
9:00am - 5:30pm PT
TOWER 600 PERIPHERAL SETUP GUIDE
BACK
STEP 2
For more space to access the I/O cutouts,
remove the back panel by pulling on the
notch at the top of the back panel.
STEP 4
Feed your cables through the the cutouts
on their corresponding sides.
FRONT
BACK
All other peripherals
888 - 570 - 5247
ttsupport@thermaltakeusa.com
Monitors and
other displays
Advertisement
Related Manuals for Thermaltake TOWER 600
Summary of Contents for Thermaltake TOWER 600
- Page 1 TOWER 600 PERIPHERAL SETUP GUIDE Congratulations on your new PC! Accessing the I/O panel and connecting your peripherals to the Tower 600 case is easy! Follow along this guide to learn how: STEP 1 STEP 2 For more space to access the I/O cutouts,...
- Page 2 TOWER 600 PERIPHERAL SETUP GUIDE STEP 5 Connect your peripherals into the corresponding port(s) in the motherboard I/O. ** Images for reference only. Port layouts may vary based on the included components. For monitors and displays, connect directly to the appropriate port(s) on the graphics card/GPU.
