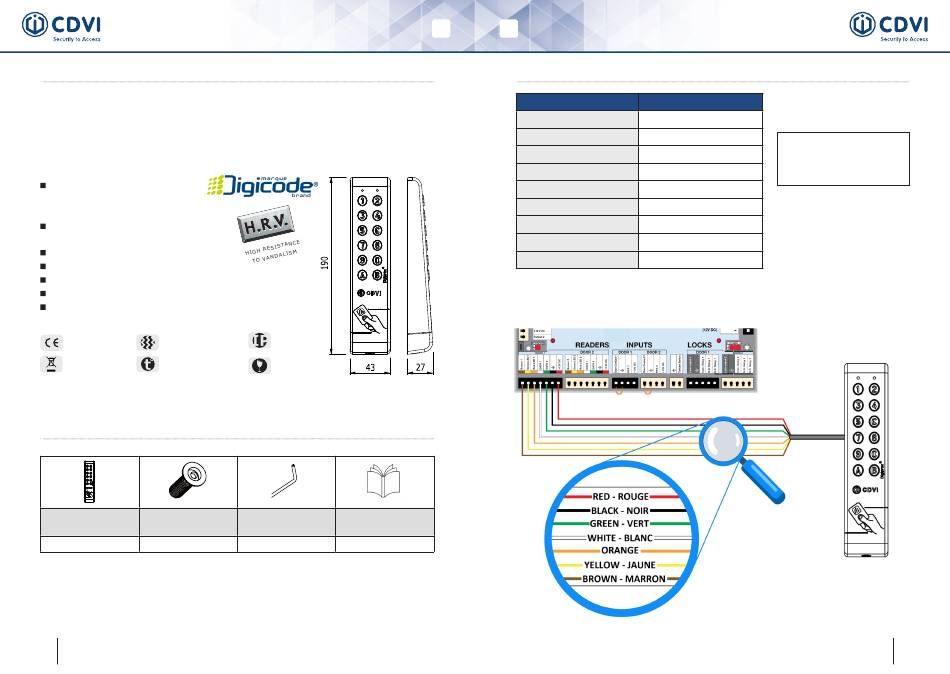

KCPROXWLC
Stainless Steel Proximity Card Reader & Keypad
1] PRODUCT PRESENTATION
The KCPROXWLC from CDVI is a stainless steel proximity card reader and
keypad. The KCPROXWLC gives an anytime status of the door through multi-
coloured LED's. This access control reader has a high performance read range
and is easy to mount.
Dual technology:
- Proximity card reader,
- Digicode keypad.
®
Output formats:
Wiegand 20, 36 or 44 bits
Stainless steel.
Backlit keypad.
Audible and visual feedback.
Power supply: 12V DC.
Consumptions: 120mA.
Environmental tests:
CE Certification
vibrations
WEEE & RoHS -25°C à +60°C
2] PACKAGE CONTENTS
M5x8
Keypad
screw
1 1
2
EN
IP64
IK10
T20
Installation manual
Spanner
1 1
EN
Stainless Steel Proximity Card Reader & Keypad
3] WIRING AND CONNECTIONS
Cable colour Correspondance
Red 12V DC
Black 0V
Brown Buzzer
Green Data 0
White Data 1
Blue Clock
Purple Programming
Yellow Green LED
Orange Red LED
Wiegand Connection
CDVI Controller
KCPROXWLC
Recommended cable
type: minimum section
of 0,6mm, twisted pairs,
shielded
