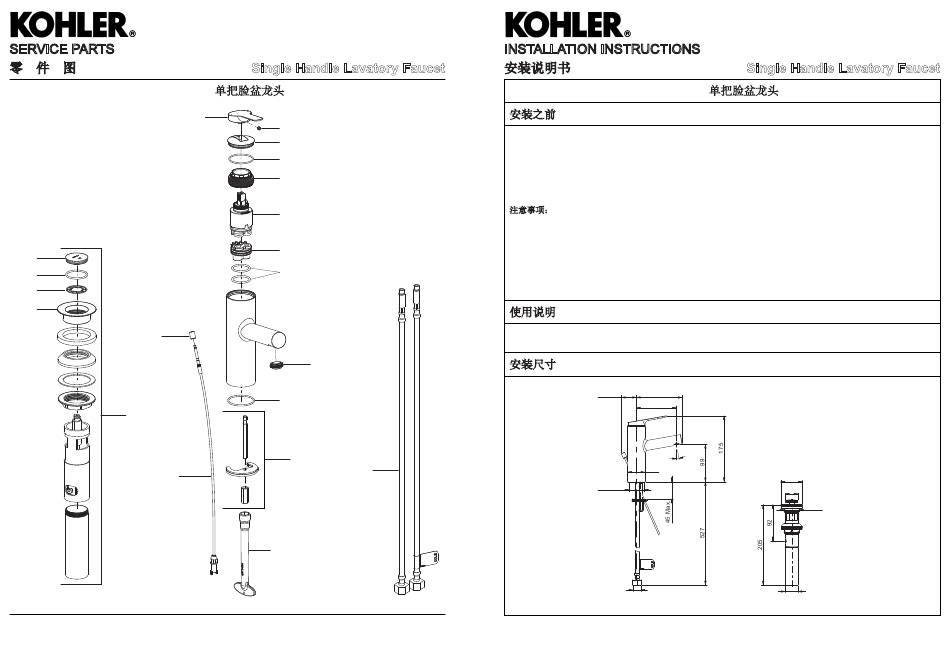

Kohler ELATE 28994T-4 Installation Instructions

SERVICE PARTS
零 件 图
28994T-4
1441917**
1353824**
1353825
1353835
1353827**
1349081**
1367427**
1349078(Only for CP)
1349078-BKB(Only for BL)
**订购时请说明颜色编号
**Color code must be specified when ordering
1444385-2-A
帝莱
ELATE
Single Handle Lavatory Faucet
单把脸盆龙头 OL
1249005
1308256**
870878
3008435
1292053
3008414
871472
1424267
1360096
834592
880096
1228834
INSTALLATION INSTRUCTIONS
(OL)
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 尽可能在安装脸盆之前安装水龙头。
3. 检查供水管有无损坏和漏水。如需要，进行替换
和维修。
4. 遵守当地管路安装条例。
5. 切断供水管路。
使用说明
轻轻提起把手，顺时针旋转把手为热水，逆时针旋
转把手为冷水。
安装尺寸
60 Min.
Ø33~Ø37
4
1444385-2-A
Single Handle Lavatory Faucet
28994T-4 单把脸盆龙头 OL
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. If possible, install this faucet before installing the
lavatory.
3. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water,
turn counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
122
107
10°
Ø46
Ø54
Ø32.5
Ø35.5
G1/2˝
Ø31.75
帝莱
ELATE
(OL)
1
