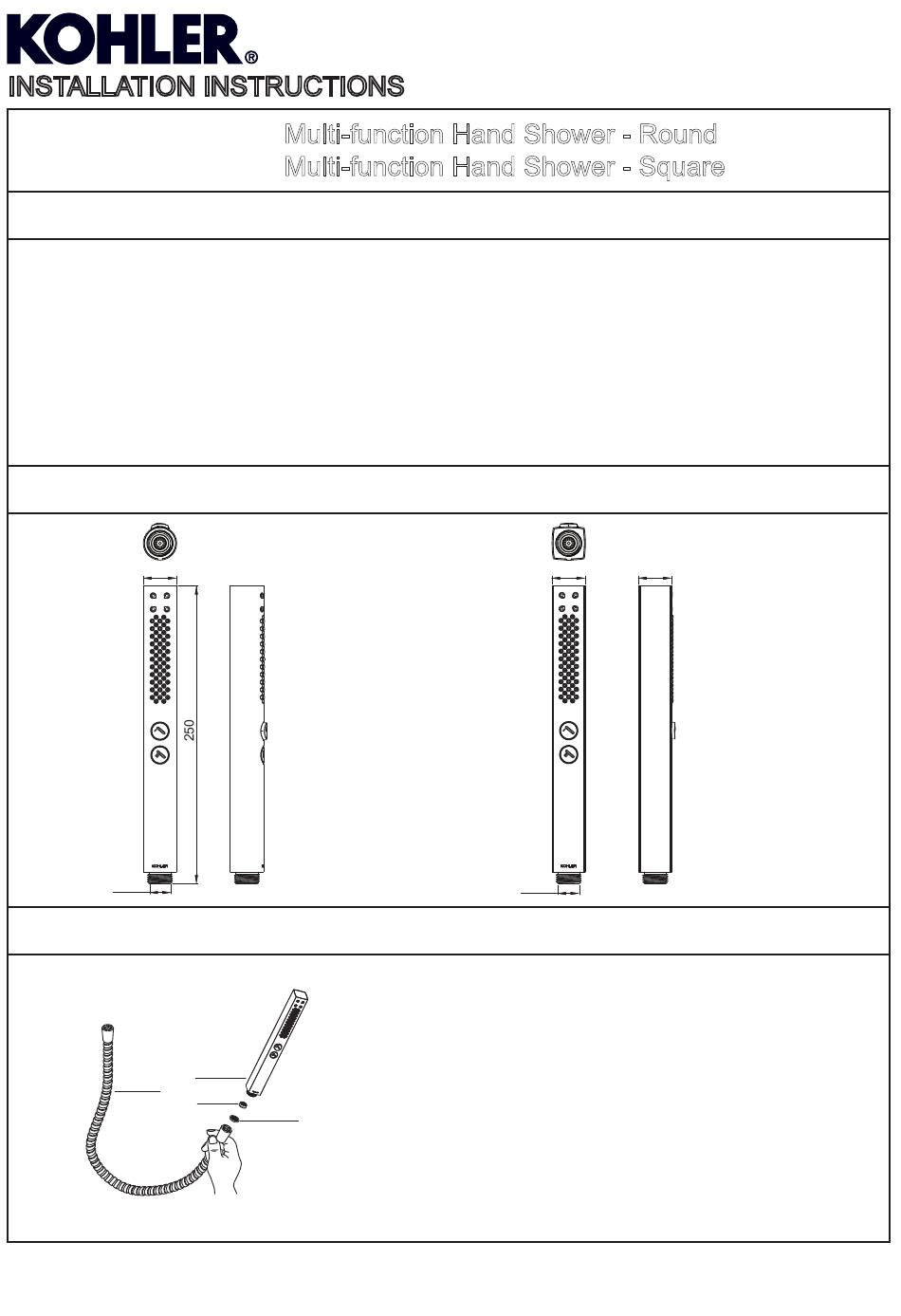

Kohler SHIFT+ 21335T Installation Instructions

INSTALLATION INSTRUCTIONS
21335T
21336T

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. The highest working pressure for hand shower is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure reducer
is needed. The highest water and environment temperature is 60°C. Please keep hand shower, shower head and
the shower arm away from heater, or it may become damaged and cause injury to the user.
ROUGH-IN DIMENSIONS
Ø28
G1/2˝

INSTALLATION

4
1317176-2A-A
Multi-function Hand Shower - Round
Multi-function Hand Shower - Square
21335T
1
2
3
28
G1/2˝

How to Install the Hand shower

Flush both water supply for about one minute before the
hand shower(1) is installed.
Put the screen washer(3) into the shower hose(4)
connector. Connect the hand shower to shower hose.
NOTE: Don't over tighten.
Install regulator(2) into the hand shower inlet if needed.
Connect another end of shower hose to the water
supply.
SHIFT
28
21336T
+
1
