Kohler PARALLEL 23492T-4 Installation Instructions

SERVICE PARTS

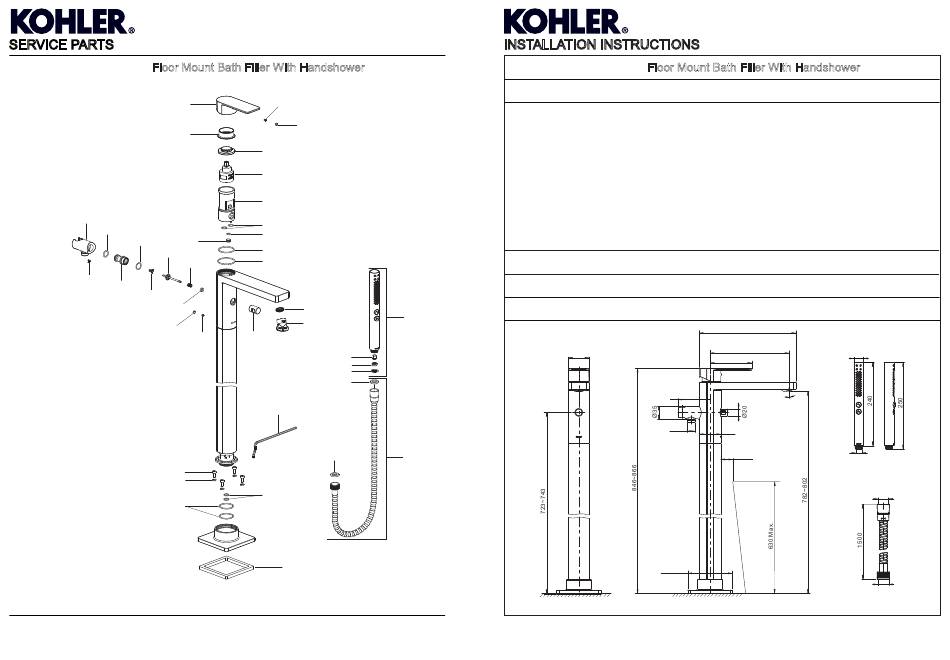

23492T-4 Floor Mount Bath Filler With Handshower
1333529**
1333434**
1333440**
32657
1333432
74463
1358691
835018
834404
1333437
835015
835016
3008523
3013706
1082901
65218
1010167
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1333450-2A-A
PARALLEL
833438
3008523
1333433
1229992
1358690**
77955
77950
38618
1337774
1258088
1297467**
3006148
1333439**
1240266
1030624
77420
880010
1177225
831727**
880010
77955
1333448
INSTALLATION INSTRUCTIONS
23492T-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. The minimum working pressure for the diverter is 0.05MPa(0.5bar).
5. Check for leaks before covering the pipes, repairs as needed.
6. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer is
needed. The highest water and environment temperature is 60ºC. Please keep handshower and shower arm away
from heater, or it may become damaged and cause injury to the user.
7. Please purchase the matched mounting base 97905T when install the faucet.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
57
* Please purchase the appropriate bathtub according to the dimension.
4 1333450-2A-A
Floor Mount Bath Filler With Handshower
270
*221
117
89
10º
G1/2˝
Ø60
70 Min.
125×125
PARALLEL
Ø28
G1/2˝
G1/2˝
G1/2˝
