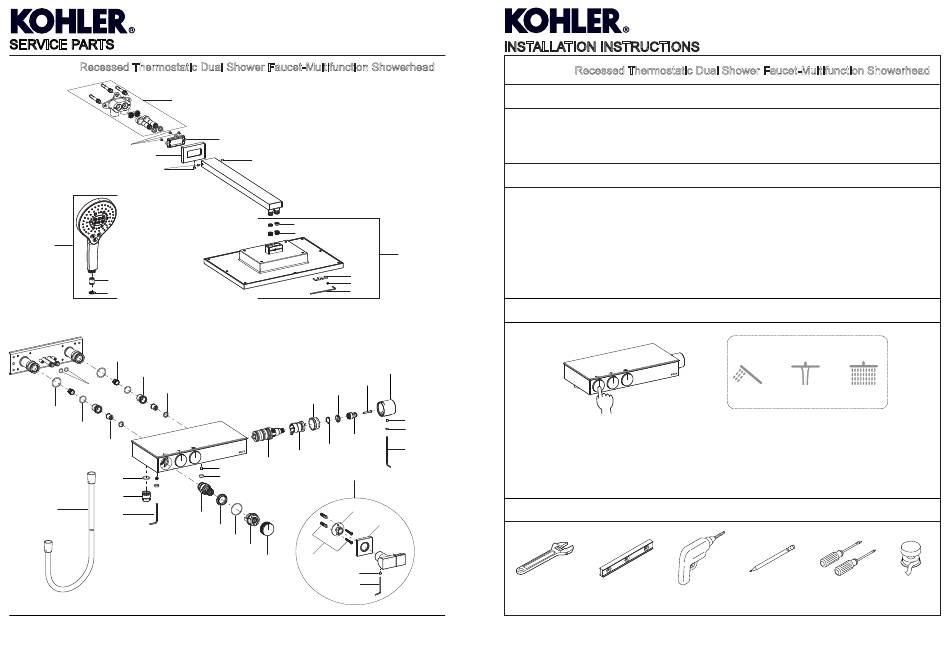

SERVICE PARTS
25717T-9
Recessed Thermostatic Dual Shower Faucet-Multifunction Showerhead
1306343
1092497
1306348**
833438
1410662-CP
(For CY finish)
1348571**
(For other finishes)
1069458
77420
1259076
1299825
42045
3019692
871472
870992
831752
870721
864922**
1248781**
834638
1347562
**Color code must be specified when ordering.
1418848-2A-C
URBANITY
1306349
833438
1242635
1359717
1326364
1249005
833730
1299843**
1176766
1242354
1299846
1299857
1242353
1299837
3008304
834404
1244920
1337970**
1258634**
1337971**
1299821
55925
1377201
1423819**
1061576
23096
1081607
+
INSTALLATION INSTRUCTIONS
25717T-9
Recessed Thermostatic Dual Shower Faucet-Multifunction Showerhead
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right
to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
OPERATION CONDITION
1. Minimum supply pressures: 0.1MPa(1bar).
2. Recommended supply static pressures: 0.3MPa(3bar) on hot and cold water.
3. Supply pressure greater than 0.5MPa(5bar): install a pressure reducer.
4. Hot water temperatures, minimum: 50ºC, maximum: 80ºC.
5. Recommended hot water temperature: 65ºC(energy-saving).
1424140-CP
6. Setting range, approximately: 20ºC to 49ºC.
(For CY finish)
7. Safety stop at: 37ºC.
1359706**
8. Maximum mixed water temperature: 49ºC.
(For other finishes)
9. The highest environment temperature for handshower & showerhead is 60ºC. Please keep handshower, showerhead
and shower arm away from heater, or it may become damaged and cause injury to the user.
OPERATION INSTRUCTIONS
833438
3008523
The temperature is set by slowly turning the temperature handle(right-hand handle). For safety reasons, there is a stop
that limits temperature to 37ºC. To get a higher temperature, push the button(on right-handle) and continue turning the
833730
temperature handle counter-clockwise.
Water flow and dispense is set by switch buttons. Press any switch button on the faucet body, the water will run from
corresponding outlet. Rotate the switch buttons counter-clockwise to reduce flow.
TOOLS AND MATERIALS (USER SUPPLIED)
Adjustable Wrench
8
1418848-2A-C
Icon description above switch button
Handshower
Level
Drill
Pencil
URBANITY
+
Laminar
Katalyst rain
Screwdrivers
Sealant Tape
1
