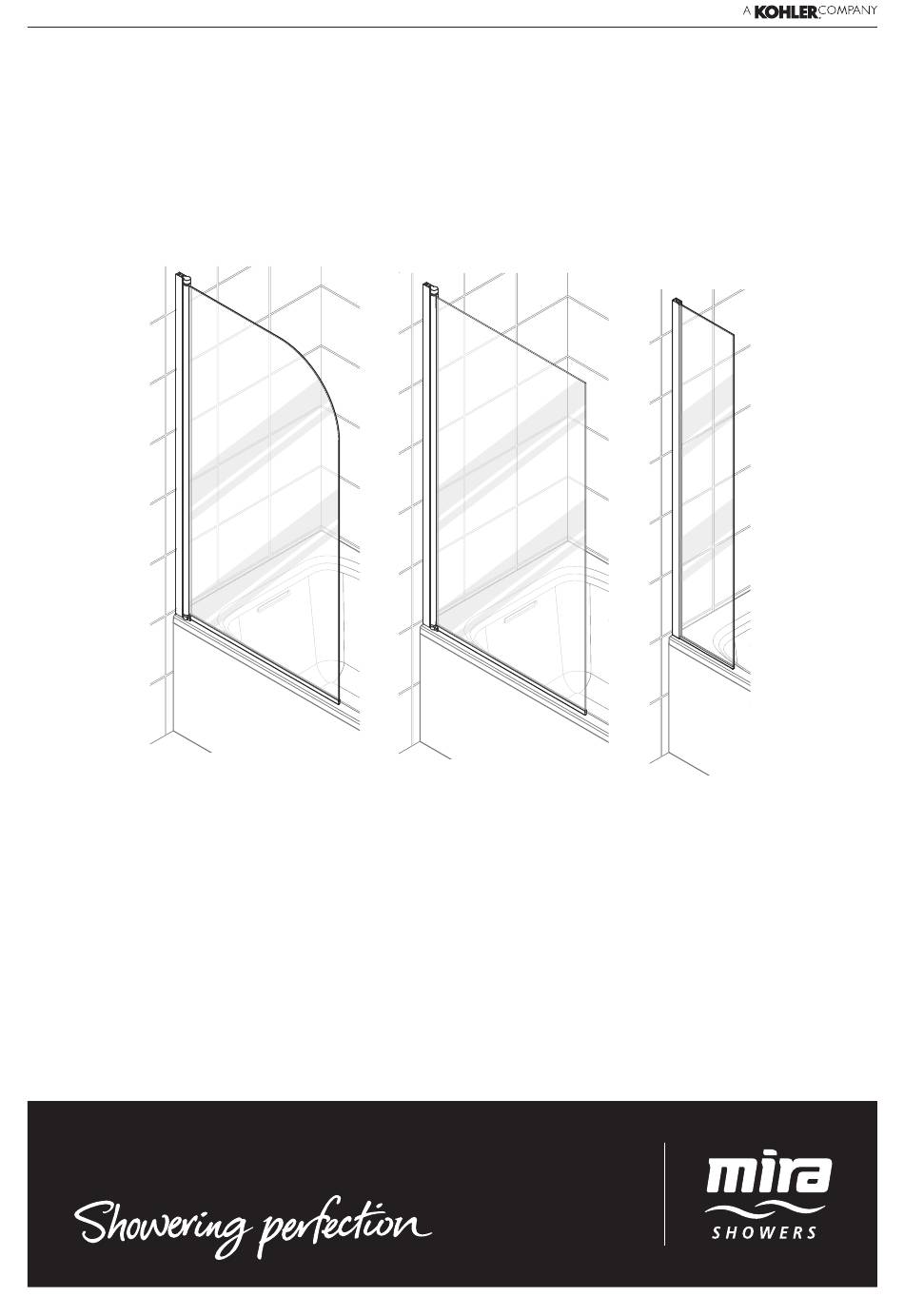

- Page 1 Elevate Bathscreens These instructions must be left with the user Installation Guide 1544819-W2-A...
- Page 2 1544819-W2-A...
-
Page 3: General Information
INTRODUCTION Thank you for purchasing a quality Mira product. To enjoy the full potential of your new product, please take time to read this guide thoroughly, having done so, keep it handy for future reference. The following pages aim to provide comprehensive installation instructions, plus advice on how to care and maintain your product. -
Page 4: Recommended Usage
When Fitting the Bathscreen surface. Failure to do so will result in an unsatisfactory seal, which may cause property damage. Use of the Bathscreen outside of the bathscreen. In certain circumstances such as cleaning, water sprayed directly at the seals may escape outside of the bathscreen. -
Page 5: Pack Contents
PACK CONTENTS that all of the parts are included. Single Panel Round/Square Square Round Note: Wall plugs are not supplied. Documentation 1 x Guarantee Registration Document 1 x Installation Manual 1544819-W2-A... - Page 6 PACK CONTENTS Static Panel Square Note: Wall plugs are not supplied. Documentation 1 x Guarantee Registration Document 1 x Installation Manual 1544819-W2-A...
-
Page 7: Installation
INSTALLATION ± 0 mm ± 0 mm Note! Tile down on top of the bath and seal around the edge. Make sure the bath is level across all axis. 1544819-W2-A... - Page 8 Single Panel Round/Square Inside ± 0 mm Ø6mm (Not supplied) Note: Choose wall plugs suitable for your wall type. Wall plugs should be without collar. 10mm 6.0 mm (a) Position the wall channel on the wall. Using a spirit level make sure that it is upright. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (not supplied).
- Page 9 Install horizontal seal Push the horizontal seal onto the bottom of the glass, the cut out end going towards the wall. Ensure the seal is correctly engaged into the pivot block. 1544819-W2-A...
- Page 10 Apply a small amount of silicone sealant at the bottom of the wall channel before you install the bathscreen. Seal compression should be as illustrated Note: The horizontal seal should accommodate most baths but many bath rims are uneven, you can adjust the seal to give an even compression along the bath to eliminate any gaps.
- Page 11 Note! Carefully drill the fixing holes to avoid breaking the drill Ensure the glass is level 3.0 mm HSS 1544819-W2-A...
- Page 12 Note! There is an ID label on the top of the screen. DO NOT remove this. LABEL Run a bead of silicone sealant 50mm up the vertical join line where the channels meet on the outside. OUT SIDE OUT SIDE 1544819-W2-A...
- Page 13 INSTALLATION Static Panel Inside ± 0 mm Ø6mm (Not supplied) Note: Choose wall plugs suitable for your wall type. Wall plugs should be without collar. 10mm 6.0 mm (a) Position the wall channel on the wall. Using a spirit level make sure that it is upright. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (not supplied).
- Page 14 Apply a small amount of silicone sealant at the bottom of the wall channel before you install the panel. 3.0 mm 1544819-W2-A...
- Page 15 Note! Carefully drill the fixing holes to avoid breaking the drill 3.0 mm HSS 1544819-W2-A...
- Page 16 Note! There is an ID label on the top of the screen. DO NOT remove this. LABEL 1544819-W2-A...
-
Page 17: Spare Parts
SPARE PARTS G1545405W Elevate Bathscreen G1545405W Elevate Bathscreen Wall Channel Wall Channel G1545401W Panel Fixing Pack - G1545399W Horizontal Bottom Seal x1 or Components Identified 'A' G1545400W Horizontal Bottom Seal x1 - Deeper seal for uneven bath edge G1545401W Panel Fixing Pack - Components Identified 'A' 1544819-W2-A... -
Page 18: General Maintenance
MAINTENANCE General Maintenance Providing the bathscreen has been correctly installed and is operated in accordance If any maintenance is required then it must be carried out by a competent tradesperson to whom the maintenance instructions are provided. Before replacing any parts ensure the underlying cause of the malfunction has been resolved. - Page 19 NOTES 1544819-W2-A...
- Page 20 1544819-W2-A...
-
Page 21: Declaration Of Performance
DECLARATION OF PERFORMANCE Declara�on of Performance Unique iden�fica�on code of the product type: Kohler Mira Elevate Bath Screens For product number please see list below. Intended Use: Personal hygiene (PH) Name and address of the EU importer: Name and address of the manufacturer: K/E S.A.S. - Page 22 DECLARATION OF PERFORMANCE Declara�on of Performance Unique iden�fica�on code of the product type: Kohler Mira Elevate Bath Screens For product number please see list below. Intended Use: Personal hygiene (PH) Name and address of the UK importer: Name and address of the manufacturer:...
- Page 23 IR – CA - DA 2.1814.108 Elevate Hinged Bath Screen (Curved) IR – CA - DA 2.1814.109 Elevate Static Bath Panel IR – CA - DA Kohler Mira Ltd Cromwell Road Cheltenham Gloucestershire GL52 5EP ELEVATE BATH SCREENS EN 14428...
- Page 24 EU Importer address Kohler Mira Limited. Cromwell Road, K/E S.A.S Cheltenham, 3 rue de Brennus, The company reserves the right to alter Gloucestershire 93631, La Plaine Saint-Denis. GL52 5EP France product specifi cations without notice. 14648 1544819-W2-A © Kohler Co. December 2022...
