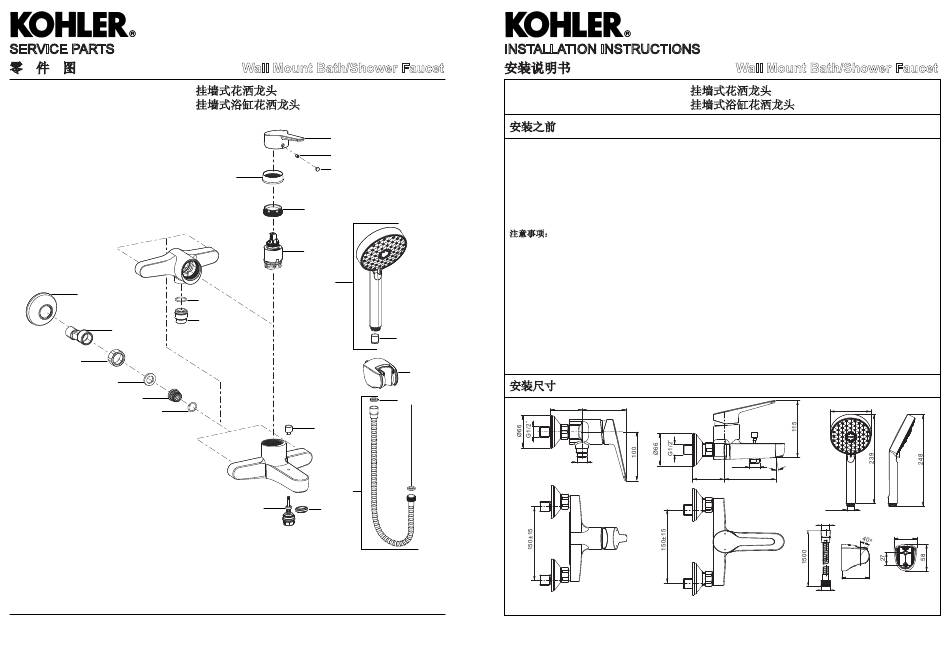

Kohler ACCLIV 33078T-4 Installation Instructions

SERVICE PARTS
零 件 图
33078T-4
33081T-4
1125667**
1277170**
1277169**
1218659
864985
871363
**订购时请说明颜色编号
**Color code must be specified when ordering
1416313-2-C
宾戈
ACCLIV
Wall Mount Bath/Shower Faucet
挂墙式花洒龙头 OL
挂墙式浴缸花洒龙头 OL
1470463**
833438
3008523
1414936**
1420675
1292053
1226888**
33078T-4
870721
33078T-4
864922**
33081T-4:
1414937**
831727**
33081T-4:
33081T-4:
1285497**
3015846
INSTALLATION INSTRUCTIONS
(OL)
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1.
一定要先彻底冲洗供水管以清除管道中的杂质。
2.
检查供水管有无损坏和漏水。如需要，进行替换
和维修。
3. 遵守当地管路安装条例。
4. 切换器正常工作的最小压力为 0.05MPa(0.5bar)。
5. 花洒最高工作压力：0.5MPa(5bar)。水压超过
0.5MPa(5bar)时必须安装减压阀。花洒最高工作温
度及环境温度：60°C。请特别注意花洒同花洒连接
79680
的臂管须远离浴霸，否则可能损坏花洒及其密封件，
甚至对使用者造成伤害。
1216770**
安装尺寸
880010
59~64
G1/2˝
33078T-4
4
1416313-2-C
Wall Mount Bath/Shower Faucet
33078T-4 挂墙式花洒龙头 OL
33081T-4 挂墙式浴缸花洒龙头 OL
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for the diverter is
0.05MPa(0.5bar).
5. The highest working pressure for handshower is
0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure
reducer is needed. The highest water and environment
temperature is 60°C. Please keep the handshower,
showerhead and shower arm away from heater, or it
may become damaged and cause injury to the user.
ROUGH-IN DIMENSIONS
91
G1/2˝
65~70
105
33081T-4
宾戈
ACCLIV
(OL)
Ø110
10º
G1/2˝
G1/2˝
49
60
G1/2˝
1
