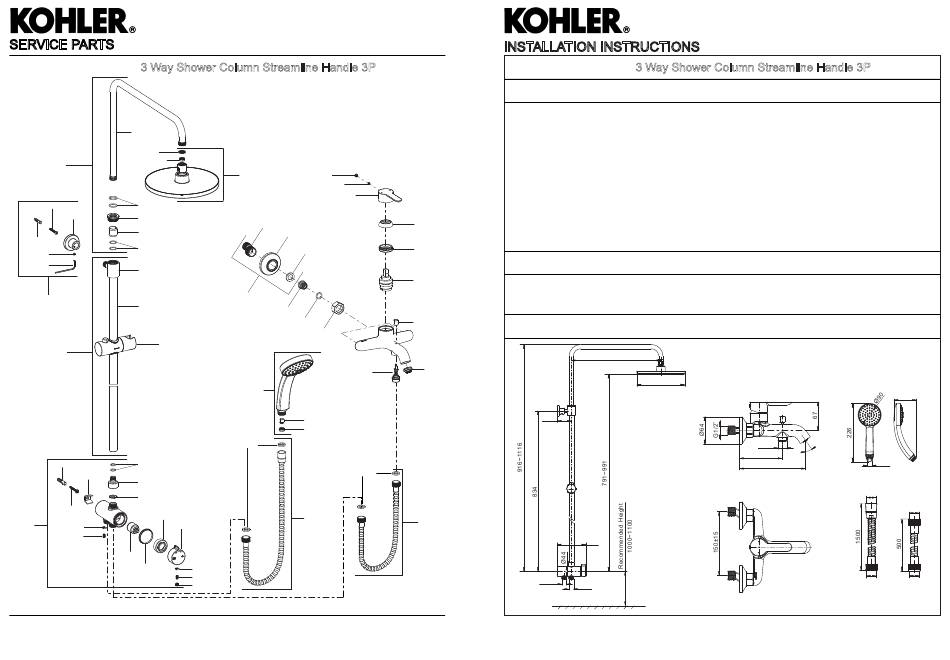

SERVICE PARTS
31803T-4
3 Way Shower Column Streamline Handle 3P
1415521**
77420
1030624
1415517**
1415519
1415534
1415535**
1415522**
1415520
1415532
1415518
1415533
1415531
1415528**
1415530**
1415525**
1415529**
1415523**
1415542
1415544
1415552
1431533**
1415524
1415550
1415554
1415536**
1415538**
1415553
1415551
1415548
1415545
**Color code must be specified when ordering
1423173-2A-A
1260904**
1415385**
1415384
1415382**
1415419
1415420**
1218659
1422860**
1415416
1415415
1415417**
1439400**
1392771**
1462273
1030624
880010
880010
1415556**
1415553
1415551
1415539**
ATOM
INSTALLATION INSTRUCTIONS
(PJ)
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Shut off the water supplies to the fitting.
2. Inspect the supply tubing for damage. Replace if necessary.
3. Observe local plumbing codes.
4. Recommended minimum working pressures is 0.2MPa(2bar).
5. The highest working pressure for handshower & showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower,
showerhead and shower arm away from heater, or it may become damaged and cause injury to the user.
1415386**
6. When connecting the shower hoses to the diverters, tighten the hose connectors by hand. Do not use spanner
or other tools to avoid damaging the diverter connectors.
1415387
HANDLE OPERATION
1415410
Lift the handle gently, turn clockwise for hot water, turn counter-clockwise for cold water, bath spout works; Lift the
diverter gently, turn clockwise for shower; Shut off the faucet, turn counter-clockwise until it stops.
Turn the diverter handle clockwise for handshower, turn counter-clockwise for showerhead.
1415412**
ROUGH-IN DIMENSIONS
3025890
59.6
1415555**
G1/2˝
4
1423173-2A-A
31803T-4
3 Way Shower Column Streamline Handle 3P
380
Ø203
122
G1/2˝
Finished Floor
ATOM
(PJ)
87
G1/2˝
101
35º
G1/2˝
155
G1/2˝
G1/2˝
G1/2˝
G1/2˝
1
