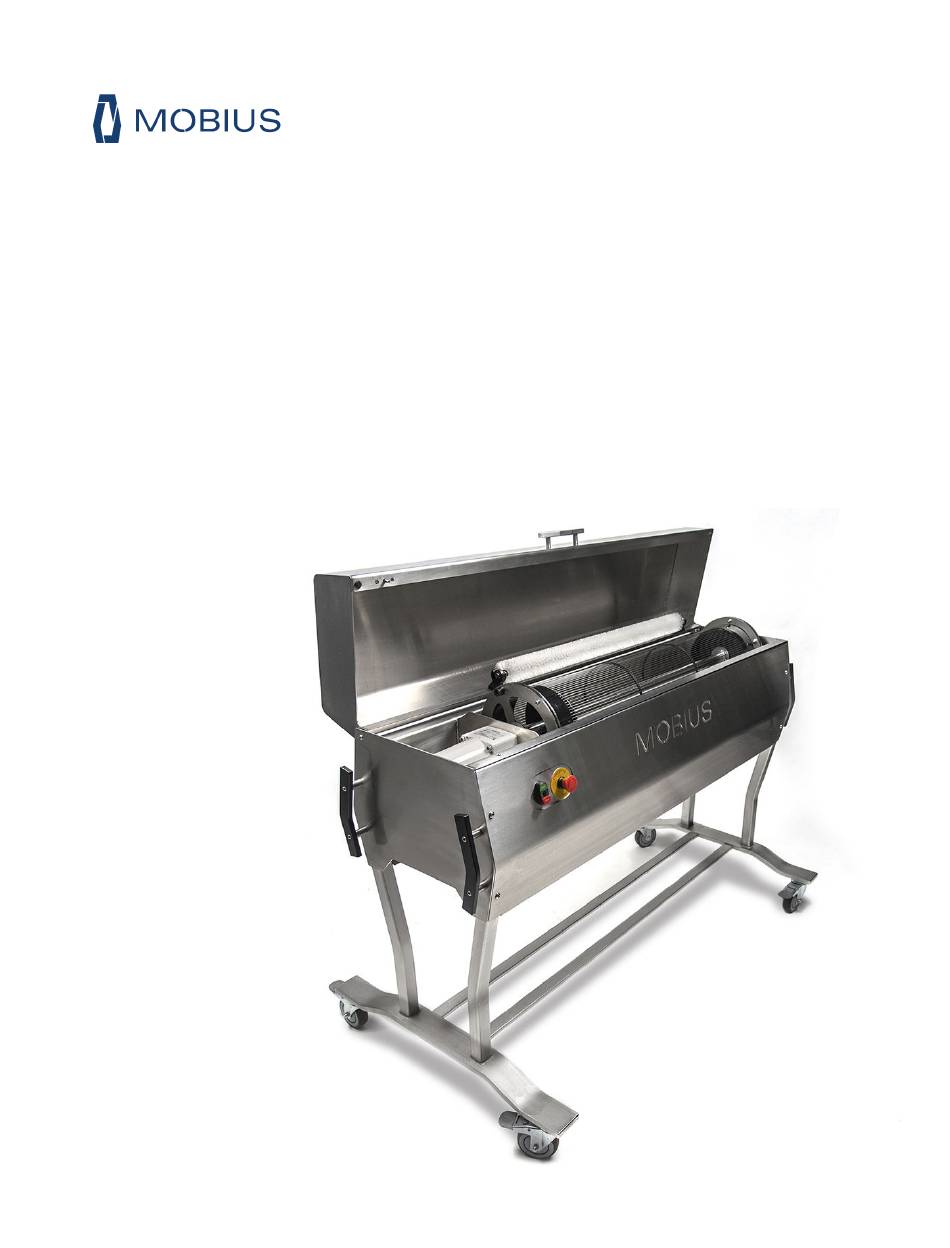

- Page 1 TUMBLER & BRUSH WASHER USER GUIDE v 1.1 ©2024 Eteros Technologies inc. All rights reserved. | mobiustrimmer.com...
-
Page 2: Table Of Contents
INITIAL SETUP..................................7 WHAT’S IN THE BOX..............................7 OPERATION..................................8 OPERATIONAL PREP............................8 CONTROL PANEL OVERVIEW........................8 COMPONENT INSTALLATION AND REMOVAL................... 9 GENERAL OPERATION............................11 CLEANING & MAINTENANCE..........................14 CLEANING.................................. 14 MAINTENANCE................................15 LIFTING AND MOVING............................15 TROUBLESHOOTING..............................16 SPECIFICATIONS................................17 MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... -
Page 3: Service & Repairs
SERVICE & REPAIRS Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service technician). Should the need arise, please notify: ETEROS TECHNOLOGIES 502-130 INDUSTRIAL AVE. CARLETON PLACE, ONTARIO, CANADA K7C 3T2 www.ETEROS.com Improper interfacing, improper repair, or unauthorized modification could result in void warranty claims. -
Page 4: Warranty
Any damage that occurs during shipping will be the responsibility of Eteros Technologies. The above terms are valid if Mobius equipment is used and maintained as directed. If the equipment is modified in any way, all terms of this warranty are void. This warranty does not apply to cosmetic damage, such as scratches or general wear and tear. -
Page 5: Safety
SAFETY This document refers to Eteros Technologies’ specialized component washing machine as the Mobius Automatic Tumbler & Brush Washer or the MTB Washer. This machine is not to be used for any purpose other than those expressly stated in the User Guide, advertising literature or other Eteros Technologies written material pertaining to the Mobius Automatic Tumbler &... -
Page 6: General Safety Precautions
WEAR PROPER APPAREL Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may get caught in moving parts. Non-slip footwear is recommended. Wear a protective hair covering to contain long hair. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... - Page 7 Any damaged part including guards should be properly repaired or replaced. ALWAYS WEAR EYE PROTECTION Safety goggles can protect your eyes from fast-moving debris. ALWAYS WEAR EAR PROTECTION Wear ear muffs or earplugs when operating loud machinery. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE...
-
Page 8: Initial Setup
INITIAL SETUP WHAT’S IN THE BOX Your MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER comes fully assembled, tested, and ready for operation. It includes the following removable parts: ● INTERNAL ROTATIONAL SPREADER ● DRAINAGE HOSE MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... -
Page 9: Operation
CONTROL PANEL OVERVIEW E-STOP - Prevents accidental start-up, used for servicing and removing components START –Starts motor rotation STOP – Stops motor rotation LIGHT - Green when powered on (running) MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... -
Page 10: Component Installation And Removal
Rotate clockwise to lock in place. Lift opposite tumbler end cap up and interlock with matching features on the locking disk. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... - Page 11 To remove, rotate the knob counter-clockwise to de-tension the tumbler, then rotate the tumbler end caps to disengage the tabs at both ends, remove the locking disk and remove the tumbler from the spreader. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE...
-
Page 12: General Operation
As you do so, the shaft at the knob side should fall down into place on the plastic support. Rotate the spreader once by hand to ensure the system will rotate freely. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... - Page 13 Set the assembly down and rinse off. Remove tumbler from spreader. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE...
- Page 14 Rinse tub and spreader to remove any debris and clean as required. Avoid spraying water directly onto electrical panel or surrounding area. Reassemble spreader and re-install in tub for storage until next use. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE...
-
Page 15: Cleaning & Maintenance
ENSURE THAT THE MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER IS LOCKED OUT BEFORE PERFORMING ANY SETUP OR MAINTENANCE. CLEANING With the exception of the electrical enclosure, the MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER can be washed, cleaned, and wiped down with normal detergents, degreasers, and disinfectants. -
Page 16: Maintenance
The machine is designed to be operated on smooth and level floors. If lifting is required, the MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER must be lifted using a forklift on the lower surface of the body. Ensure that the forks are fully spread to avoid overturning or flipping off the forks. -
Page 17: Troubleshooting
CLEAN ENOUGH concentration and water temperature are used ● Adjust time of cleaning to ensure enough scrubbing exposure time ● Check for debris and buildup in cleaning solution. Fresh cleaning solution may be required. MOBIUS TUMBLER & BRUSH WASHER USER GUIDE... -
Page 18: Specifications
Tool-less Use Tool-less Disassembly Fits Through Door Width 32.25” Length 62.5” Height 43.5” Weight 270lbs Warranty 1 year Machine Certifications None Motor Certifications UL / CSA / CCC / EN / CE Accessories None MOBIUS TUMBLER & BRUSH WASHER USER GUIDE...
