Summary of Contents for Eteros Mobius

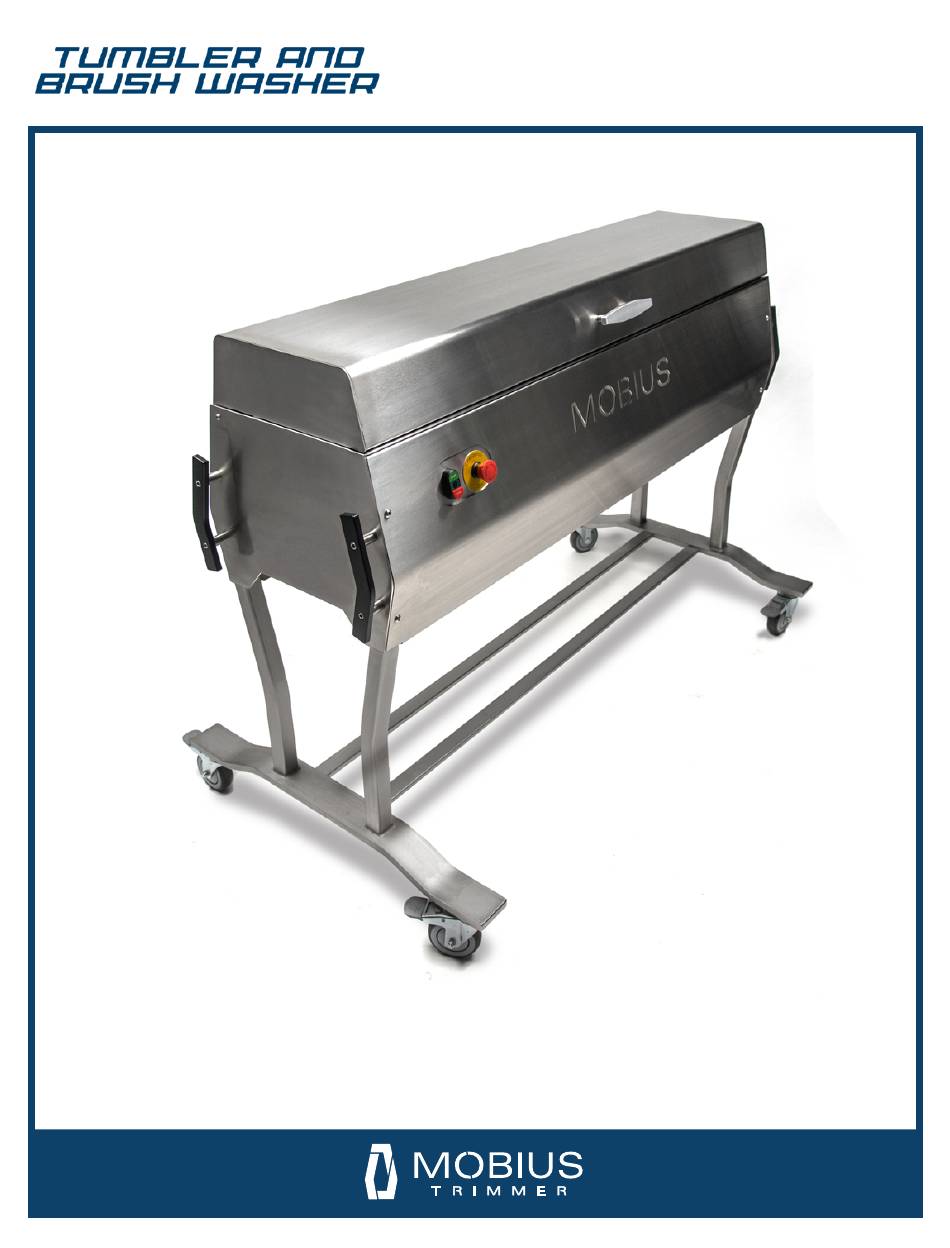

- Page 1 USER GUIDE © 2 0 2 0 E T E R O S T E C H N O L O G I E S I N C . A L L R I G H T S R E S E R V E D . U G 2 0 0 8 T B W...
- Page 2 CONTENTS...
-
Page 3: Table Of Contents
SAFETY SAFETY INSTRUCTIONS SERVICE & REPAIRS SPECIFICATIONS INITIAL SETUP WHAT’S IN THE BOX OPERATION OPERATION PREP CONTROL PANEL OVERVIEW COMPONENT INSTALLATION AND REMOVAL GENERAL OPERATION CLEANING & MAINTENANCE CLEANING MAINTENANCE LIFTING AND MOVING WARRANTY TROUBLESHOOTING... -
Page 4: Safety
SAFETY MOBIUS TUMBLER AND BRUSH WASHER USER GUIDE... -
Page 5: Safety Instructions
Mobius Automatic Tumbler & Brush Washer. To avoid possible damage to the machine and risk of injury to the operator, consult with an Eteros Technologies representative to answer any questions. Operators are encouraged to use caution and best judgment when using equipment. -
Page 6: Specifications
Tool-less Use Tool-less Disassembly Fits Through Door Width 32.25” Length 62.5” Height 43.5” Weight 270lbs Warranty 1 year Machine Certifications None Motor Certifications UL / CSA / CCC / EN / CE Accessories None MOBIUS TUMBLER AND BRUSH WASHER USER GUIDE... -
Page 7: Initial Setup
INITIAL SETUP MOBIUSTRIMMER.COM... -
Page 8: What's In The Box
WHAT’S IN THE BOX Your MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER comes fully assembled, tested, and ready for operation. It includes the following removable parts: • INTERNAL ROTATIONAL SPREADER • DRAINAGE HOSE v i r v i r < . >... -
Page 9: Operation
OPERATION MOBIUSTRIMMER.COM... -
Page 10: Operation Prep
STOP – Stops motor rotation LIGHT - Green when powered on (running) STOP E-STOP COMPONENT INSTALLATION AND REMOVAL Remove the spreader assembly from the washer and place the drive (left) end on the ground MOBIUS TUMBLER AND BRUSH WASHER USER GUIDE... - Page 11 Remove the locking disk from the main shaft of the spreader. Slide the tumbler over the main shaft of the spreader and replace the locking disk on the shaft. Don’t tighten yet! Slide the tumbler end cap at the bottom into the matching profile at the base of the spreader.
-
Page 12: General Operation
Set a timer (not included) for 5 minutes to start. The length of time can be adjusted to suit the soil level of your tumbler and brush, but this is a good place to start. MOBIUS TUMBLER AND BRUSH WASHER USER GUIDE... - Page 13 Press the stop button to stop rotation. Open the lid and visually inspect the tumbler and brush. If not sufficient, restart the wash cycle until desired cleanliness is achieved. If sufficiently washed, press the e-stop to lockout the machine before proceeding. M AC H I N E S T O P &...
-
Page 14: Cleaning & Maintenance
CLEANING & MAINTENANCE MOBIUS TUMBLER AND BRUSH WASHER USER GUIDE... -
Page 15: Cleaning
The machine is designed to be operated on smooth and level floors. If lifting is required, the MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER must be lifted using a forklift on the lower surface of the body. Ensure that the forks are fully spread to avoid overturning or flipping off the forks. -
Page 16: Warranty
MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER shall be free from defects in material and workman- ship. In the event of an issue covered under warranty, the original owner/purchaser of the of the MOBIUS AUTOMATIC TUMBLER AND BRUSH WASHER must contact ETEROS TECHNOLOGIES to file a claim. - Page 17 Eteros Technologies West Eteros Technologies East 202-17665 66A Ave. 502-130 Industrial Ave. Surrey, BC Carleton Place, ON V3S 2A7 K7C 3T2 1- 86 6- 87 4 - 6 24 4 I N F O@ M OB I U ST R I M M E R . C O M...
