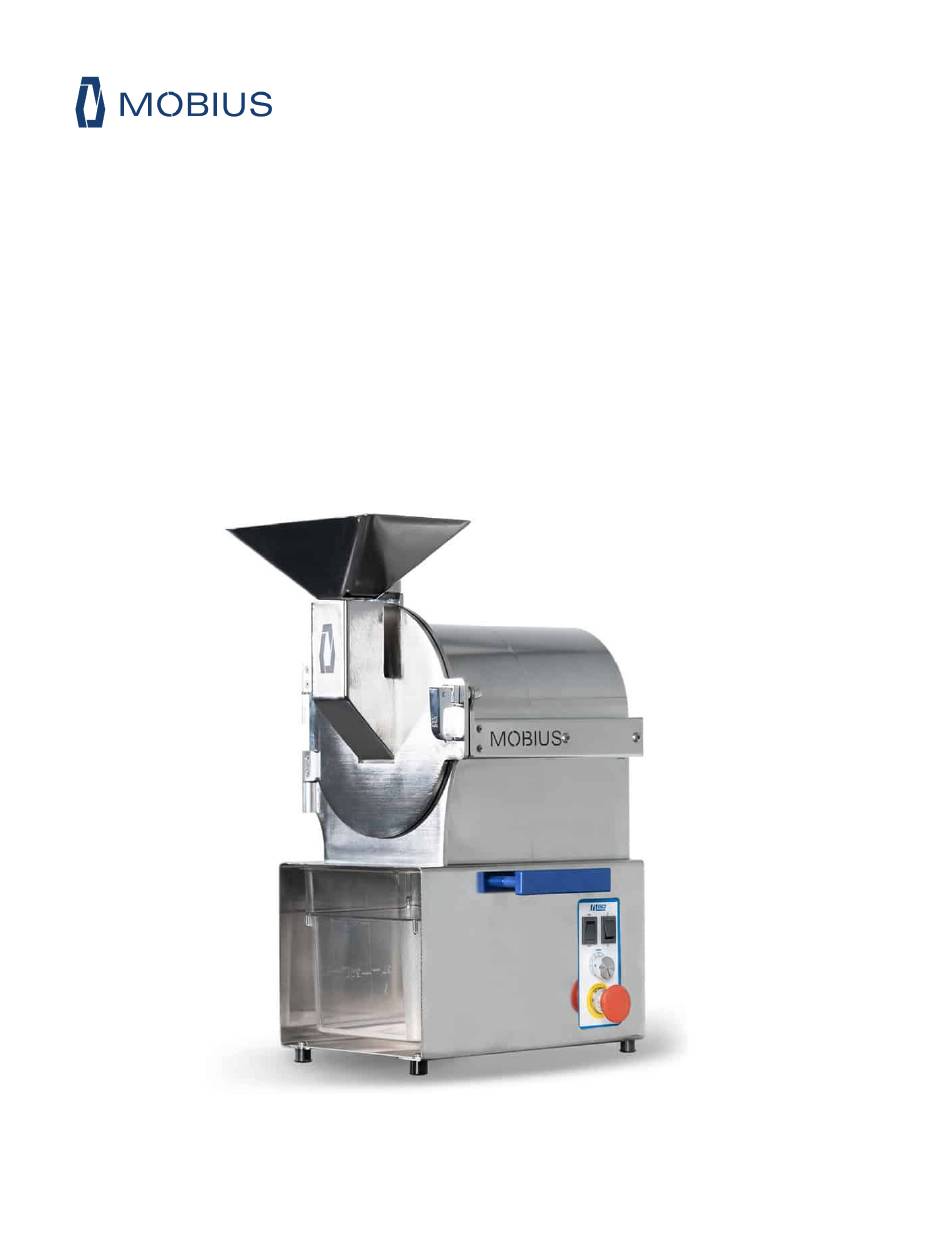

- Page 1 M60 MILL USER GUIDE ©2024 Eteros Technologies inc. All rights reserved. | mobiustrimmer.com...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS.............................. 5 GENERAL SAFETY PRECAUTIONS.......................6 INTENDED USE OF EQUIPMENT......................... 8 OPERATING CONDITIONS..........................8 INITIAL SETUP................................... 9 GET TO KNOW YOUR MOBIUS M60 MILL....................9 WHAT’S IN THE BOX..............................9 INITIAL ASSEMBLY & INSPECTION........................10 CLEANING & MAINTENANCE..........................11 CLEANING THE MOBIUS M60........................11 FUSE REPLACEMENT............................ -
Page 3: Introduction
INTRODUCTION This User Guide is a comprehensive manual covering the operation and maintenance of the Mobius M60 Mill as of the date of publication. ETEROS TECHNOLOGIES reserves the right to make updates to the machine from time to time. In the event of an update, this User Guide will remain appropriate for the safe operation and maintenance of your unit. -
Page 4: Services & Repairs
SERVICES & REPAIRS Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service technician). Should the need arise, please notify: ETEROS TECHNOLOGIES 502-130 INDUSTRIAL AVE. CARLETON PLACE, ONTARIO, CANADA K7C 3T2 www.ETEROS.com Improper interfacing, improper repair, or unauthorized modification could result in void warranty claims. -
Page 5: Warranty
Services & Repairs section. Rotor damage is very rare on a MOBIUS M60 MILL and is typically the result of rocks, hard metallic objects, or poor setup. Rotor damage resulting from hard objects entering the milling chamber is not covered under warranty. In the event of rotor damage, please contact ETEROS TECHNOLOGIES for assessment. -
Page 6: Safety Instructions
Results of inspection activity should be documented. ETEROS TECHNOLOGIES makes every effort to ensure the machine is compliant with all current safety standards. It is the responsibility of the owner to ensure all municipal, provincial, state, county, territorial, and federal codes, regulations, and standards have been met in each working location. -
Page 7: General Safety Precautions
WEAR PROPER APPAREL Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may get caught in moving parts. Non-slip footwear is recommended. Wear a protective hair covering to contain long hair. MOBIUS M60 MILL USER GUIDE 6... - Page 8 Any damaged part including guards should be properly repaired or replaced. ALWAYS WEAR EYE PROTECTION Safety goggles can protect your eyes from fast-moving debris. ALWAYS WEAR EAR PROTECTION Wear ear muffs or earplugs when operating loud machinery. MOBIUS M60 MILL USER GUIDE 7...
-
Page 9: Intended Use Of Equipment
Temperature (ambient) 5°C - 25°C Relative Humidity 25% - 75% Voltage 115 V +/- 10% 230 V +/- 5% Pollution Degree Overvoltage Category NOTE: THIS DEVICE IS NOT TO BE OPERATED IN WET LOCATIONS. MOBIUS M60 MILL USER GUIDE 8... -
Page 10: Initial Setup
INITIAL SETUP GET TO KNOW YOUR MOBIUS M60 MILL WHAT’S IN THE BOX Your M60 Arrives With The Following Components: 1 M60 Machine 1 366 cu. in / 1.58 gal / 6L tote 1 Tote Lid 1 1/8" Perforated Screen 1 1.6mm Rasp Screen... -
Page 11: Initial Assembly & Inspection
5. Ensure the ROTOR is properly installed with the spring-pin latch in place 6. Ensure that the equipment is in a clear and tidy workspace and that all controls are accessible and clearly visible MOBIUS M60 MILL USER GUIDE 10... -
Page 12: Cleaning & Maintenance
The cap will have white lettering that says “FUSE.” 4. Remove and safely discard the expended fuse. Insert the new fuse into the cap. 5. Insert the new fuse and cap back into the electrical box and twist clockwise to secure. MOBIUS M60 MILL USER GUIDE 11... -
Page 13: Preventative Maintenance
A faulty or worn door gasket will not affect the operation of the machine, however it is necessary for dust mitigation. This User Guide does not include instructions for machine repair. For your safety, repairs must be completed by ETEROS TECHNOLOGIES or an authorized service technician. MOBIUS M60 MILL USER GUIDE 12... -
Page 14: General Operation
fine or coarse of a grind you prefer by sliding the screen into the groove of the milling chamber. Additional screen sizes are available by request, please contact your dealer or Eteros Technologies for availability and pricing. 2. Slide the tote into the milling chamber until bottomed out. -
Page 15: Mobius M60 Mill Control Panel
The M60 is easily moved using the aluminum handles on either side of the machine. Exercise proper ergonomics and lifting technique when moving the machine. When setting the machine down, ensure that all four rubber feet are firmly planted on the work surface. MOBIUS M60 MILL USER GUIDE 14... -
Page 16: Troubleshooting
Milled Material is Over / Contact ETEROS TECHNOLOGIES to Under-Processed vs. Desired discuss milling screen options Consistency Debris & Product Buildup on the Rotor Remove the rotor, wipe/wash down and/or Milling Chambers rotor, shaft, and milling chambers MOBIUS M60 MILL USER GUIDE 15... -
Page 17: Specifications
16" W x 13″ L x 23" H WEIGHT 60 LBS (27 KG) POWER REQUIREMENT 120 V, 1.5 AMPS INTERNATIONAL POWER 240 V, 0.75 AMPS REQUIREMENT RECOMMENDED PPE EAR PROTECTION EYE PROTECTION DUST MASK WARRANTY 1 Year or 1,000 Hours MOBIUS M60 MILL USER GUIDE 16...
