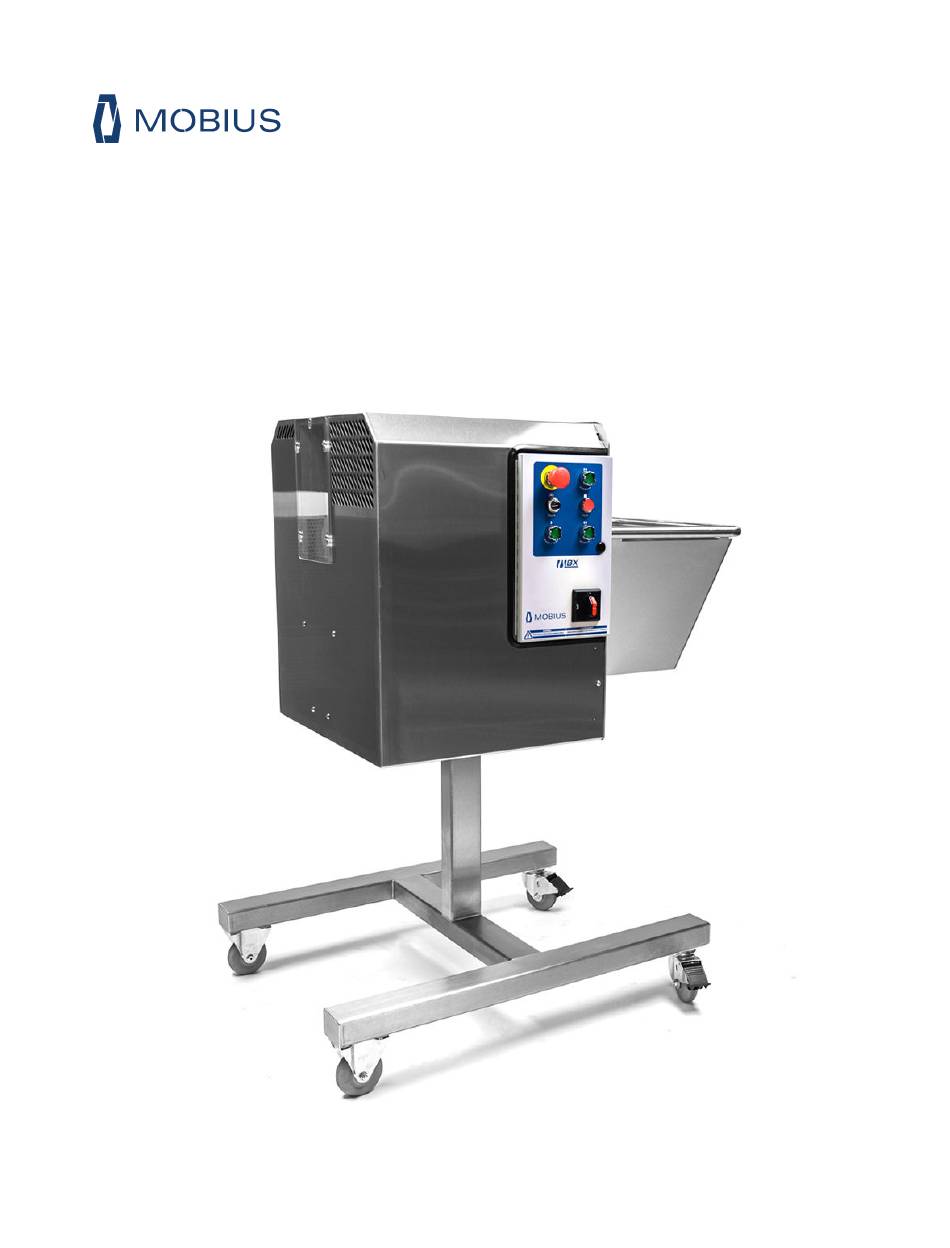

- Page 1 MBX BUCKER USER GUIDE v1.1 ©2024 Eteros Technologies inc. All rights reserved. | mobiustrimmer.com...
-
Page 2: Table Of Contents
GENERAL SAFETY PRECAUTIONS.......................7 OPERATING CONDITIONS..........................9 INITIAL SETUP................................. 10 GET TO KNOW YOUR MBX BUCKER......................10 OPERATION..................................11 WHAT'S IN THE BOX............................. 11 OPERATION PREP..............................11 CONTROL PANEL OVERVIEW........................12 OPERATION................................13 SET-UP & ADJUSTMENTS..........................14 CLEANING..................................16 MAINTENANCE................................19 SPECIFICATIONS................................20 TROUBLESHOOTING..............................21 MOBIUS MBX BUCKER USER GUIDE... -
Page 3: Introduction
INTRODUCTION This User Guide is a comprehensive manual covering the operation and maintenance of the Mobius MBX Bucker as of the date of publication. ETEROS TECHNOLOGIES reserves the right to make updates to the machine from time to time. In the event of an update, this User Guide will remain applicable for the safe operation and maintenance of your unit. -
Page 4: Service & Repairs
SERVICE & REPAIRS Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service technician). Should the need arise, please notify us: ETEROS TECHNOLOGIES 26 Industrial Ave. Carleton Place, Ontario, Canada K7C 3T2 www.eteros.com Improper interfacing, improper repair, or unauthorized modification could result in void warranty claims. -
Page 5: Warranty
Services & Repairs section. Chipper damage is very rare on a MOBIUS MBX BUCKER and is typically the result of rocks, hard metallic objects, or poor setup. Chipper damage resulting from hard objects entering the chipping chamber is not covered under warranty. In the event of chipper damage, please contact ETEROS TECHNOLOGIES for assessment. -
Page 6: Warning Labels
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. MOBIUS MBX BUCKER USER GUIDE... -
Page 7: Safety Instructions
MBX BUCKER must be inspected regularly for damage, component failure, and wear. The results of the inspection activity should be documented. ETEROS TECHNOLOGIES makes every effort to ensure the MBX BUCKER is compliant with all current safety standards. It is the responsibility of the owner to ensure all municipal, provincial, state, county, territorial, and federal codes, regulations and standards have been met in each working location. -
Page 8: General Safety Precautions
WEAR PROPER APPAREL Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may get caught in moving parts. Non-slip footwear is recommended. Wear a protective hair covering to contain long hair. MOBIUS MBX BUCKER USER GUIDE... - Page 9 Any damaged part including guards should be properly repaired or replaced. ALWAYS WEAR EYE PROTECTION Safety goggles can protect your eyes from fast-moving debris. ALWAYS WEAR EAR PROTECTION Wear ear muffs or earplugs when operating loud machinery. MOBIUS MBX BUCKER USER GUIDE...
-
Page 10: Operating Conditions
If this equipment is used in conditions outside the specified operating conditions, Eteros Technologies cannot guarantee that the built-in safety functions of the Mobius MBX Bucker will function as intended. -
Page 11: Initial Setup
INITIAL SETUP GET TO KNOW YOUR MBX BUCKER MOBIUS MBX BUCKER USER GUIDE... -
Page 12: Operation
● Confirm the power cord is in good condition ● Ensure the front die plate is installed and properly secured ● Ensure all guarding is properly installed and is in good working condition MOBIUS MBX BUCKER USER GUIDE... -
Page 13: Control Panel Overview
STOP - Stops infeed motor. Note: Under normal conditions, rollers do not need to be stopped when toggling between forward and reverse directions. SPEED - Turn dial to adjust roller speed to desired rate. MOBIUS MBX BUCKER USER GUIDE... -
Page 14: Operation
4. Inspect ejected stem to determine if it is suitable to feed into the machine. If so, insert stem. If not, dispose. MACHINE STOP SEQUENCE When the machine is in operation, press the stop button. MOBIUS MBX BUCKER USER GUIDE... -
Page 15: Set-Up & Adjustments
2. Press the e-stop button to de-energize the machine. ENSURE THE MBX BUCKER IS LOCKED OUT BEFORE PERFORMING ANY SETUP, MAINTENANCE, OR CLEANING TASKS SET-UP & ADJUSTMENTS The MBX BUCKER typically requires no set-up or adjustments under normal operating conditions. MOBIUS MBX BUCKER USER GUIDE... - Page 16 The machine is designed to be operated on smooth and level floors. If lifting is required, the Mobius MBX Bucker must be lifted using a forklift on the lower structural frame between the casters. Ensure that the forks are fully spread to avoid overturning or flipping off the forks.
-
Page 17: Cleaning
Shut down the machine, disconnect all power sources and lock out (if applicable). Ensure that the Bucker is always de-energized when working within. 2. Remove the front dieplate to expose the rolls. Remove the rear Lexan window to expose the chipper assembly. MOBIUS MBX BUCKER USER GUIDE... - Page 18 Brush any areas that are heavily soiled using a stiff plastic bristle brush. 7. Rinse the entire interior of the machine using hot water spray or pressure wash. Use caution not to pressure wash the rolls directly. MOBIUS MBX BUCKER USER GUIDE...
- Page 19 12. Wipe the exterior of the Bucker using a detergent to remove any plant material. 13. Sanitize the dieplate, Lexan cover, and exterior components if desired using Shyield or ISO. 14. Complete one final inspection, then reinstall the dieplate and Lexan cover to prepare for use. MOBIUS MBX BUCKER USER GUIDE...
-
Page 20: Maintenance
Add 2-4 pumps of FDA-approved white lithium grease to each bearing. This User Guide does not include instructions for machine repair. For your safety, repairs must be completed by ETEROS TECHNOLOGIES or an authorized agent (service technician). Should repairs be required, please contact: ETEROS TECHNOLOGIES 502-130 INDUSTRIAL AVE. -
Page 21: Specifications
80% at 31°C, decreasing linearly to 50% at 40°C Voltage and Frequency 115V +/- 10% @ 60Hz - (NA) 230V +/- 5% @ 50Hz - (EU) Current Draw 15 A (NA) 12A (EU) Pollution Degree Overvoltage Category MOBIUS MBX BUCKER USER GUIDE... -
Page 22: Troubleshooting
(see hourly inspection pg 17) MATERIAL COMES OUT OF THE CHIPPER UNDER- PROCESSED OR CHIPPER IS GETTING PLUGGING UP FREQUENTLY Chipper Setup ● see MBX BUCKER IS NOT PULLING STOCKS OR BUCKING PROPERLY Roller Tension Adjustment ● see MOBIUS MBX BUCKER USER GUIDE...
