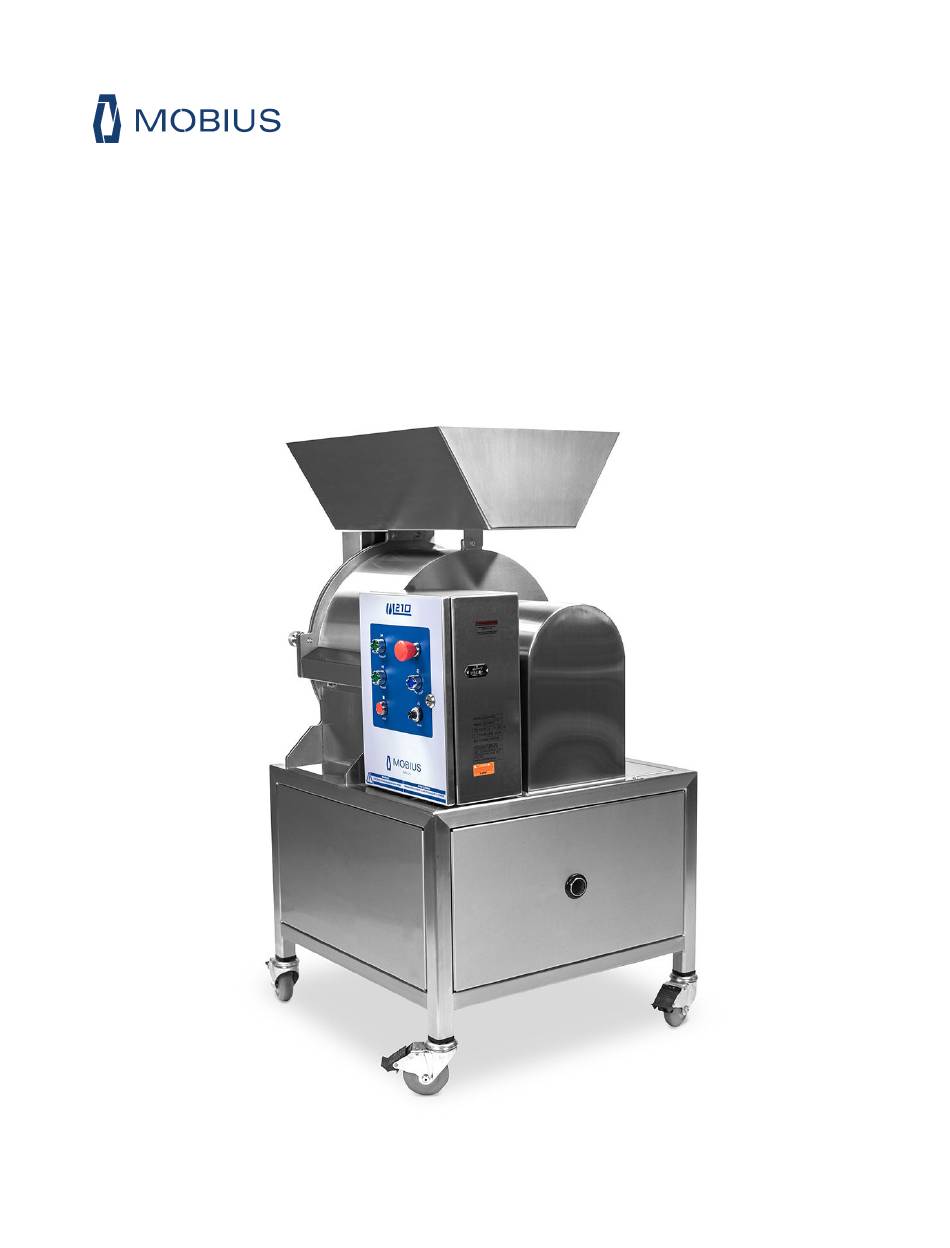

- Page 1 M210 MILL USER GUIDE v1.3 ©2024 Eteros Technologies inc. All rights reserved. | mobiustrimmer.com...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS.............................. 6 GENERAL SAFETY PRECAUTIONS.......................7 PREFACE....................................9 INTENDED USE OF EQUIPMENT........................9 OPERATING CONDITIONS..........................9 SPECIFICATIONS..............................10 INITIAL SETUP...................................11 GET TO KNOW YOUR MOBIUS M210 MILL....................11 WHAT’S IN THE BOX............................. 11 DUST COLLECTION PORT..........................11 OPERATION..................................12 OPERATION PREP..............................12 CONTROL PANEL OVERVIEW........................13 GENERAL OPERATION............................13 SET-UP & ADJUSTMENTS..........................14 GENERAL.....................................15... -
Page 3: Introduction
INTRODUCTION This User Guide is a comprehensive manual covering the operation and maintenance of the Mobius M210 Mill processing machine as of the date of publication. ETEROS TECHNOLOGIES reserves the right to make updates to the machine from time to time. In the event of an update, this User Guide will remain appropriate for the safe operation and maintenance of your unit. -
Page 4: Service & Repairs
SERVICE & REPAIRS Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service technician). Should the need arise, please notify: ETEROS TECHNOLOGIES 502-130 INDUSTRIAL AVE. CARLETON PLACE, ONTARIO, CANADA K7C 3T2 www.ETEROS.com Improper interfacing, improper repair, or unauthorized modification could result in void warranty claims. -
Page 5: Warranty
WARRANTY Thank you for purchasing Mobius M210 equipment from Eteros Technologies Inc. The Mobius M210 Mill is covered by our manufacturer’s warranty as follows: ● No warranty on consumable parts, including screens and door gaskets; ● Warranty coverage for one (1) year or 1,000 operating hours, whichever occurs first, on motors, electrical components, and remainder of machine... -
Page 6: Warning Labels
It may also be used to alert against unsafe practices. CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. MOBIUS M210 MILL USER GUIDE... -
Page 7: Safety Instructions
Eteros Technologies representative to answer any questions. This document refers to the ETEROS TECHNOLOGIES product milling machine as the MOBIUS M210 Mill. Since this machine has a rotary milling unit, special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury. -
Page 8: General Safety Precautions
WEAR PROPER APPAREL Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may get caught in moving parts. Non-slip footwear is recommended. Wear a protective hair covering to contain long hair. MOBIUS M210 MILL USER GUIDE... - Page 9 Any damaged part including guards should be properly repaired or replaced. ALWAYS WEAR EYE PROTECTION Safety goggles can protect your eyes from fast-moving debris. ALWAYS WEAR EAR PROTECTION Wear ear muffs or earplugs when operating loud machinery. MOBIUS M210 MILL USER GUIDE...
-
Page 10: Preface
0 - 2000 meters above sea level Temperature (ambient) 5°C - 25°C Relative Humidity 25% - 75% Voltage 115 V +/- 10% 230 V +/- 5% Pollution Degree Overvoltage Category NOTE: THIS DEVICE IS NOT TO BE OPERATED IN WET LOCATIONS. MOBIUS M210 MILL USER GUIDE... -
Page 11: Specifications
Fits Through a 32” Door Width 28” Length 28” Height 52” Weight 265lbs Warranty 1 year Certifications CE and cLCus Certification Accessories ● Fine Screen ● Coarse Screen ● Custom Carts ● Custom Feed Hopper MOBIUS M210 MILL USER GUIDE... -
Page 12: Initial Setup
● PRODUCT HOPPER ● PRODUCT TOTE DUST COLLECTION PORT Your MOBIUS M210 MILL is equipped from the factory with a dust collection port. Connect a vacuum or dust collection system to your milling machine to minimize the airborne dust generated. -
Page 13: Operation
OPERATION OPERATION PREP Please take the following steps to confirm the MOBIUS M210 MILL is ready to operate: ● Ensure that your Mobius M210 MILL has been configured for the appropriate voltage (see p.12) ● Complete a thorough inspection of the equipment to ensure no damage occurred during shipment ●... -
Page 14: Control Panel Overview
2. Ensure the access door is properly closed and latched. 3. Ensure e-stop is disengaged. 4. Press the start/reset button to turn on the machine. When active, the start/reset button will be illuminated. 5. Press the forward or reverse button to engage the rotor. MOBIUS M210 MILL USER GUIDE... -
Page 15: Set-Up & Adjustments
PERFORMING ANY SETUP, MAINTENANCE, OR CLEANING TASKS SET-UP & ADJUSTMENTS The Mobius M210 Mill typically requires no set-up or adjustment under normal operating conditions. The particle size and final product consistency is dictated by the milling screen. Eteros Technologies has several screens available for milling and blending. -
Page 16: General
The door gasket can also be removed easily for cleaning. This gasket is pressed by hand into the groove around the circumference of the door. The exterior of the MOBIUS M210 MILL should never be hosed or sprayed. Evidence of water near the motor, conduit, electrical panel, or gearbox could void the machine warranty. -
Page 17: Lifting & Moving
If lifting is required, the M210 must be lifted using a forklift on the lower structural frame between the casters. Ensure that the forks are fully spread to avoid overturning or flipping off the forks. MOBIUS M210 MILL USER GUIDE... -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Resolution MOBIUS M210 MILL WILL NOT START ● Ensure the machine is plugged ● Ensure the e-stop is disengaged (pulled out) ● Ensure the start/reset button has been pressed and is illuminated ● Ensure the rotor is not jammed... -
Page 19: Specifications
28" W x 28″ L x 52" H WEIGHT 265 LBS (120 KG) POWER REQUIREMENT 120 V, 6 AMPS INTERNATIONAL POWER 240 V, 3 AMPS REQUIREMENT RECOMMENDED PPE EAR PROTECTION EYE PROTECTION DUST MASK WARRANTY 1 Year or 1,000 Hours MOBIUS M210 MILL USER GUIDE...
