OPERATING INSTRUCTIONS
FOR MODELS:
SERIES B
MANUEL D'INSTRUCTIONS
M12151
MANUAL DE INSTRUCCIONES
83-383
YA5550A
M12151, 83-383, YA5550A
IMPORTANT OPERATING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
3.300.734/A
Form No.
One Lincoln Way
4/99
For Service, Call 1-866-236-0044
St. Louis, Missouri 63120-1578
430696
Customer Service (314) 679-4300
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lincoln Electric M12151
Summary of Contents for Lincoln Electric M12151

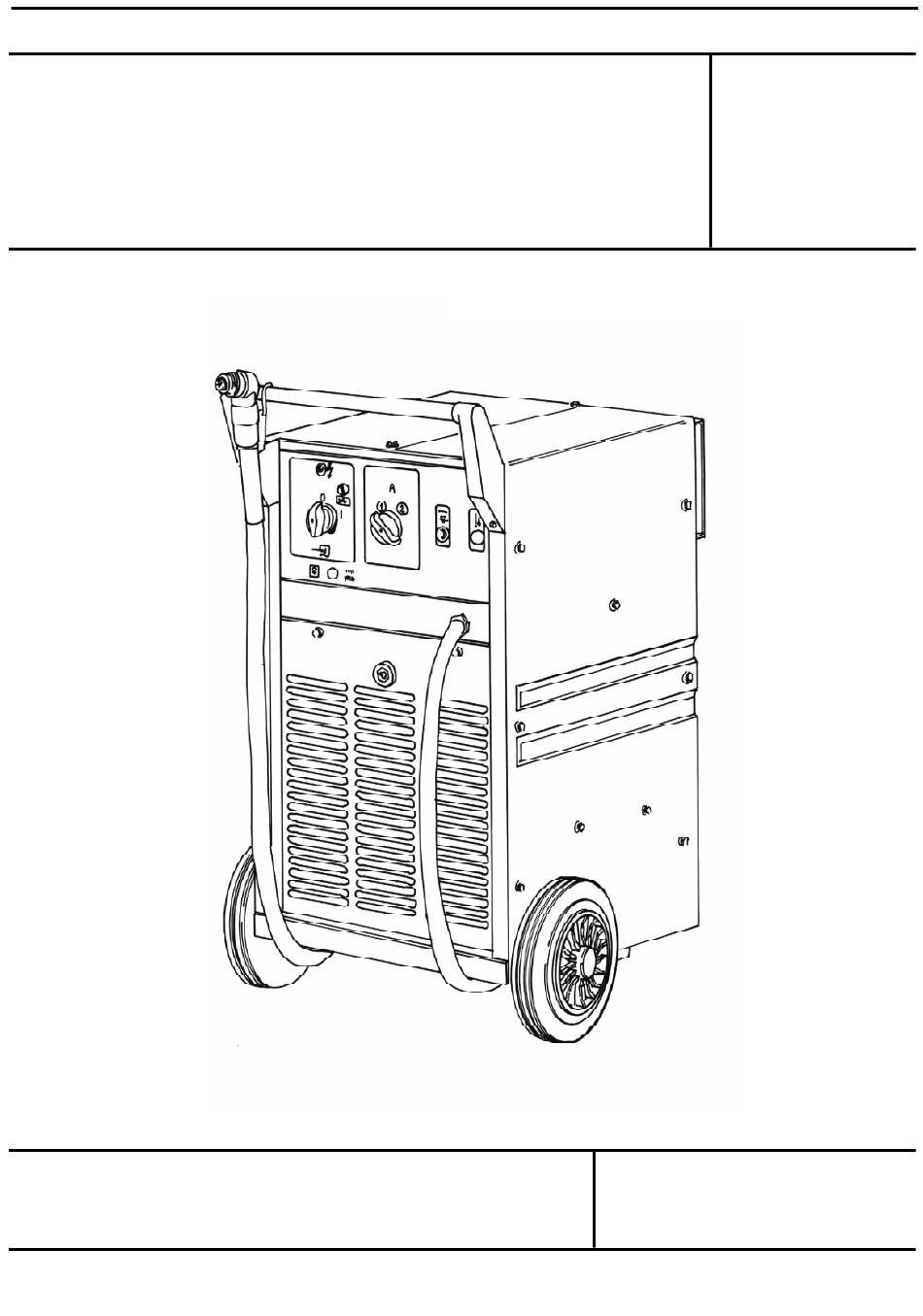

- Page 1 OPERATING INSTRUCTIONS FOR MODELS: SERIES B MANUEL D'INSTRUCTIONS M12151 MANUAL DE INSTRUCCIONES 83-383 YA5550A M12151, 83-383, YA5550A IMPORTANT OPERATING INSTRUCTIONS SAVE THESE INSTRUCTIONS 3.300.734/A Form No. One Lincoln Way 4/99 For Service, Call 1-866-236-0044 St. Louis, Missouri 63120-1578 430696 Customer Service (314) 679-4300...
- Page 2 M12151, 83-383, YA5550A...
- Page 3 Connect the air feed to fitting B making sure that pressure is overheating. The duty cycle varies according to 88PSI (6bar or 0.6 MPa ) at least with a minimal capacity of the output current. 420 CFH (200 liters/min.) M12151, 83-383, YA5550A...
- Page 4 (on supply with the unit). This new Should circular cut be done it is recommended to use caliper electrode is required to be screwed in its housing and (supplied on request). locked without tightening. M12151, 83-383, YA5550A...
- Page 5 • Keep your head out of fumes. • In closed rooms use suitable exhaust fans, placed under the cutting area, if possible. 10 11 12 • If ventilation is not enough, use breathing sets approved for this procedure. M12151, 83-383, YA5550A...
- Page 6 • Handle or use pressure cylinders in conformity with the existing rules. • Do not use leaking or damaged cylinders. • Do not use cylinders which are not properly secured. • Do not carry cylinders whose content is not clearly identified. M12151, 83-383, YA5550A...
- Page 7 WIRING DIAGRAM COLOR CODE BLACK GREY WHITE GREEN VIOLET YELLOW BLUE BROWN ORANGE PINK PINK-BLACK GREY-VIOLET WHITE-VIOLET WHITE-BLACK GREY-BLUE WHITE-RED GREY-RED WHITE-BLUE BLACK-BLUE YELLOW-GREEN M12151, 83-383, YA5550A...
- Page 8 M12151, 83-383, YA5550A...
- Page 9 M12151, 83-383, YA5550A...
- Page 10 250885 Reed 247509 Warning Label 216-108-666 246224 Fan Motor M15809, YA5550A8, 83-661 Standoff 08/17/06 Rated Voltage Model Primary Input Input Plug Duty Cycle at Rated Output Agency Listing Max Cutting Thickness Output Settings M12151 230 Vac, 50A 50 amps 1/2"...
