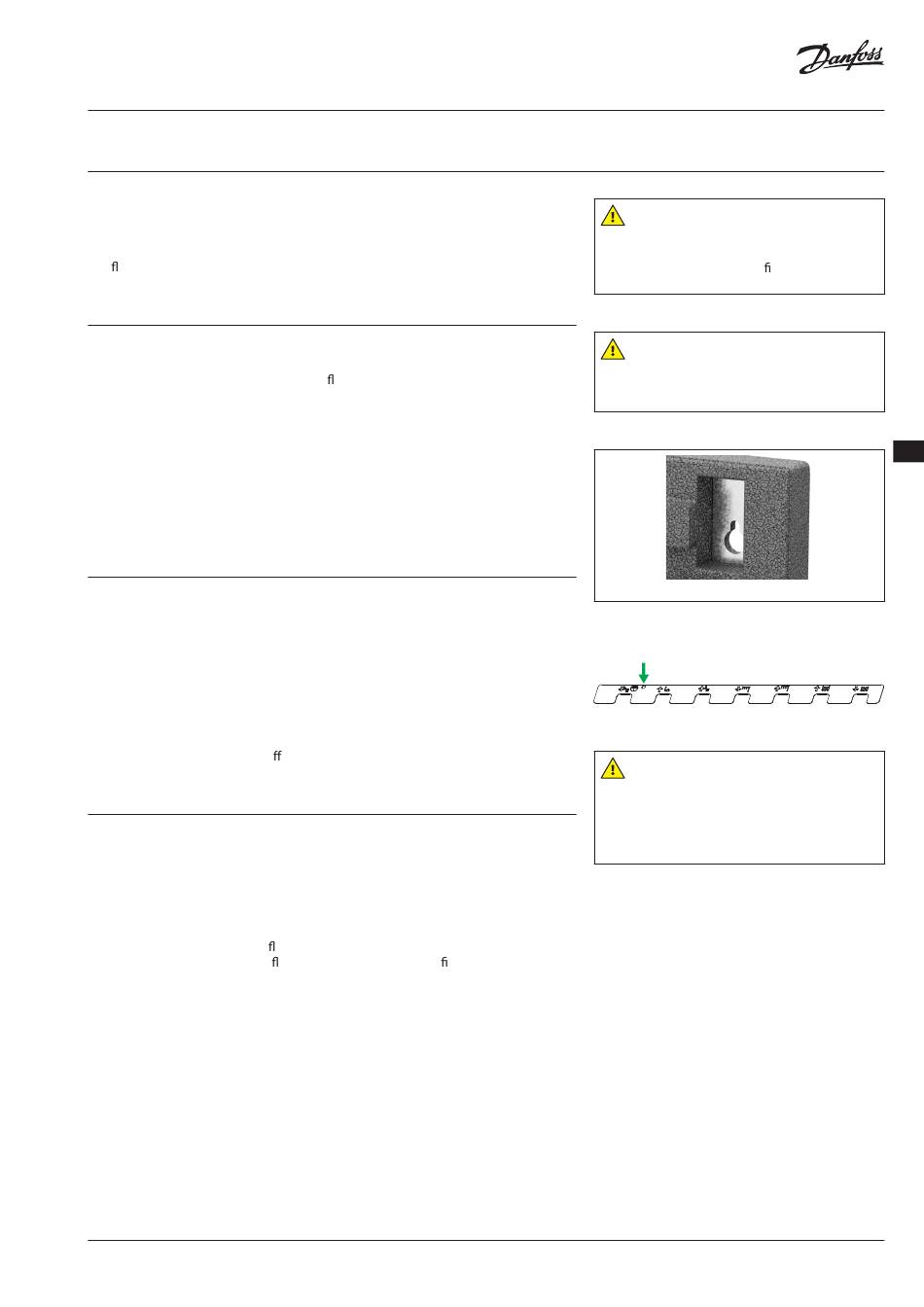

3. MOUNTING
3.1 Mounting
Installation must be in compliance with local standards and regulations.
Heat Source (HS) — In the following sections, HS refers to the heat source which supplies
the at stations. A variety of energy sources, such as district heating, heat pumps,
solar power, oil and gas could be used as the primary supply to Danfoss substations.
For the sake of simplicity, HS can be taken to mean the primary supply.
Mounting:
Adequate space
Please allow adequate space around the at station for mounting and maintenance
purposes.
Orientation
The station must be mounted so that components, keyholes, and labels are placed
correctly.
Drillings
Drillings are provided in the back mounting plate.
Labeling
Each connection on the substation is labeled.
Before installation:
Clean and rinse
Prior to installation, all substation pipes and connections should be cleaned and rinsed.
Tightening
Due to vibration during transport, all substation connections must be checked and
tightened before installation. Check that all hairpins in click connections are completely
pushed in.
Unused connections
Unused connections and shut-o valves must be sealed with a plug.
Should the plugs require removal, this must only be done by an authorized service
technician.
Installation:
Strainer
A strainer is always mounted ex works. Please note that additional strainers are
sometimes supplied loose.
Connections
Connection to the household installation and district heating pipes connections
must be made using threaded, anged, or welded connections.
The internal connections of the at station are made by click- t connections.
© Danfoss | DCS-SFDPT/PL | 2025.01
EvoFlat 4.0 Pro Flat Stations for apartments, single- and multi-family houses
Authorized personnel only
Assembly, start-up, and maintenance work
must be performed by quali ed and authorized
personnel only.
Warning
After assembly, the back side of the EvoFlat
device should not be accessible to the user.
Keyhole for mounting.
Please note
Use of packaging types other than that with
which the device is delivered will void the
warranty.
AN50714990308501-010102 | 5
EN
