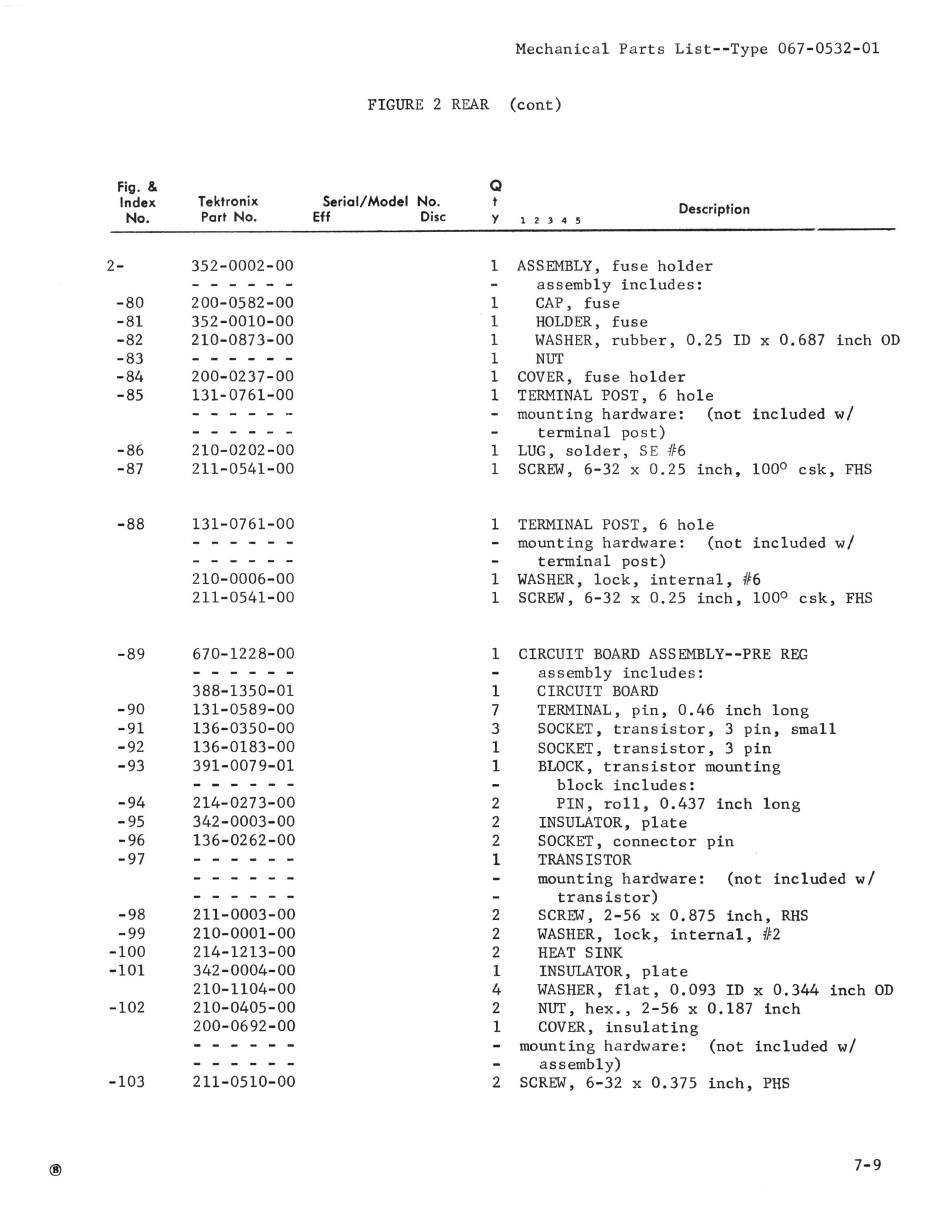

Tektronix 067-0532-10 Calibration Fixture Manual page 47

Mechanical Parts List--Type 067-0532-01
FIGURE 2 REAR (cont)
'wiee Tek Serial/Model N :
tronix erial/Model No. t sae
Ne. Part No. Eff Disc Y i235 Description
2- 352-0002-00 1 ASSEMBLY, fuse holder
-- ce ee - assembly includes:
-80 200-0582-00 1 CAP, fuse
-81 352-0010-00 1 HOLDER, fuse
-82 210-0873-00 1 WASHER, rubber, 0.25 ID x 0.687 inch OD
-83 ------ 1 NUT
-84 200-0237-00 1 COVER, fuse holder
-85 131-0761-00 1 TERMINAL POST, 6 hole
- ec eee - mounting hardware: (not included w/
--- eee - terminal post)
-86 210-0202-00 1 LUG, solder, SE #6
-87 211-0541-00 1 SCREW, 6-32 x 0.25 inch, 100° csk, FHS
-88 131-0761-00 1 TERMINAL POST, 6 hole
-- ee ee - mounting hardware: (not included w/
-- ee ee - terminal post)
210-0006-00 1 WASHER, lock, internal, #6
211-0541-00 1 SCREW, 6-32 x 0.25 inch, 100° csk, FHS
-89 670-1228-00 1 CIRCUIT BOARD ASSEMBLY--PRE REG
--- eee - assembly includes:
388-1350-01 1 CIRCUIT BOARD
-90 131-0589-00 7 TERMINAL, pin, 0.46 inch long
-91 136-0350-00 3 SOCKET, transistor, 3 pin, small
-92 136-0183-00 1 SOCKET, transistor, 3 pin
-93 391-0079-01 1 BLOCK, transistor mounting
-e cere - block includes:
-94 214-0273-00 2 PIN, roll, 0.437 inch long
-95 342-0003-00 2 INSULATOR, plate
-96 136-0262-00 2 SOCKET, connector pin
"97 ere ee ee 1 TRANSISTOR
-- freee - mounting hardware: (not included w/
- eee ee - transistor)
-98 211-0003-00 2 SCREW, 2-56 x 0.875 inch, RHS
-99 210-0001-00 2 WASHER, lock, internal, #2
-100 214-1213-00 2 HEAT SINK
-101 342-0004-00 1 INSULATOR, plate
210-1104-00 4 WASHER, flat, 0.093 ID x 0.344 inch OD
-102 210-0405-00 2 NUT, hex., 2-56 x 0.187 inch
200-0692-00 1 COVER, insulating
sre eee - mounting hardware: (not included w/
--- eee - assembly)
-103 211-0510-00 2 SCREW, 6-32 x 0.375 inch, PHS
