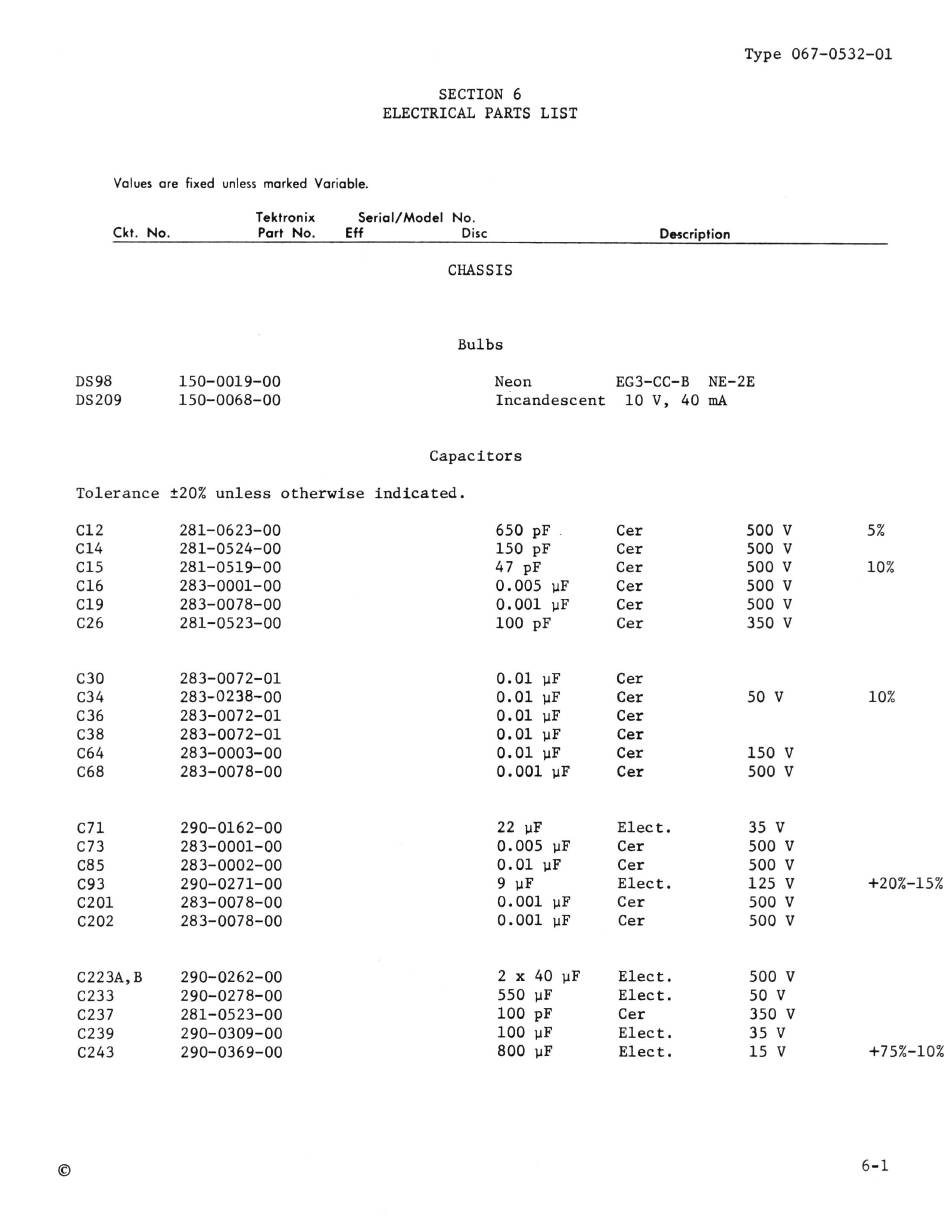

Tektronix 067-0532-10 Calibration Fixture Manual page 25

ELECTRICAL PARTS LIST
Values are fixed unless marked Variable.
Type 067-0532-01
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
CHASSIS
DS98 150-0019-00 Neon EG3-CC-B NE-2E
DS209 150-0068-00 Incandescent 10V, 40 mA
Capacitors
Tolerance +20% unless otherwise indicated.
C12 281-0623-00 650 pF . Cer 500 V 5%
C14 281-0524-00 150 pF Cer 500 V
C15 281-0519-00 47 pF Cer 500 V 10%
C16 283-0001-00 0.005 uF Cer 500 V
c19 283-0078-00 0.001 uF Cer 500 V
C26 281-0523-00 100 pF Cer 350 V
C30 283-0072-01 0.01 uF Cer
C34 283-0238-00 0.01 uF Cer 50 V 10%
C36 283-0072-01 0.01 uF Cer
C38 283-0072-01 0.01 uF Cer
C64 283-0003-00 0.01 uF Cer 150 V
C68 283-0078-00 0.001 uF Cer 500 V
C71 290-0162-00 22 uF Elect. 35 V
C73 283-0001-00 0.005 uF Cer 500 V
C85 283-0002-00 0.01 uF Cer 500 V
c93 290-0271-00 9 uF Elect. 125 V
C201 283-0078-00 0.001 uF Cer 500 V
C202 283-0078-00 0.001 uF Cer 500 V
C223A,B 290-0262-00 2 x 40 uF Elect. 500 V
C233 290-0278-00 550 uF Elect. 50 V
C237 281-0523-00 100 pF Cer 350 V
C239 290-0309-00 100 uF Elect. 35 V
C243 290-0369-00 800 uF Elect. 15 V
