TYPE
062-0532-01
MEASUREMENT

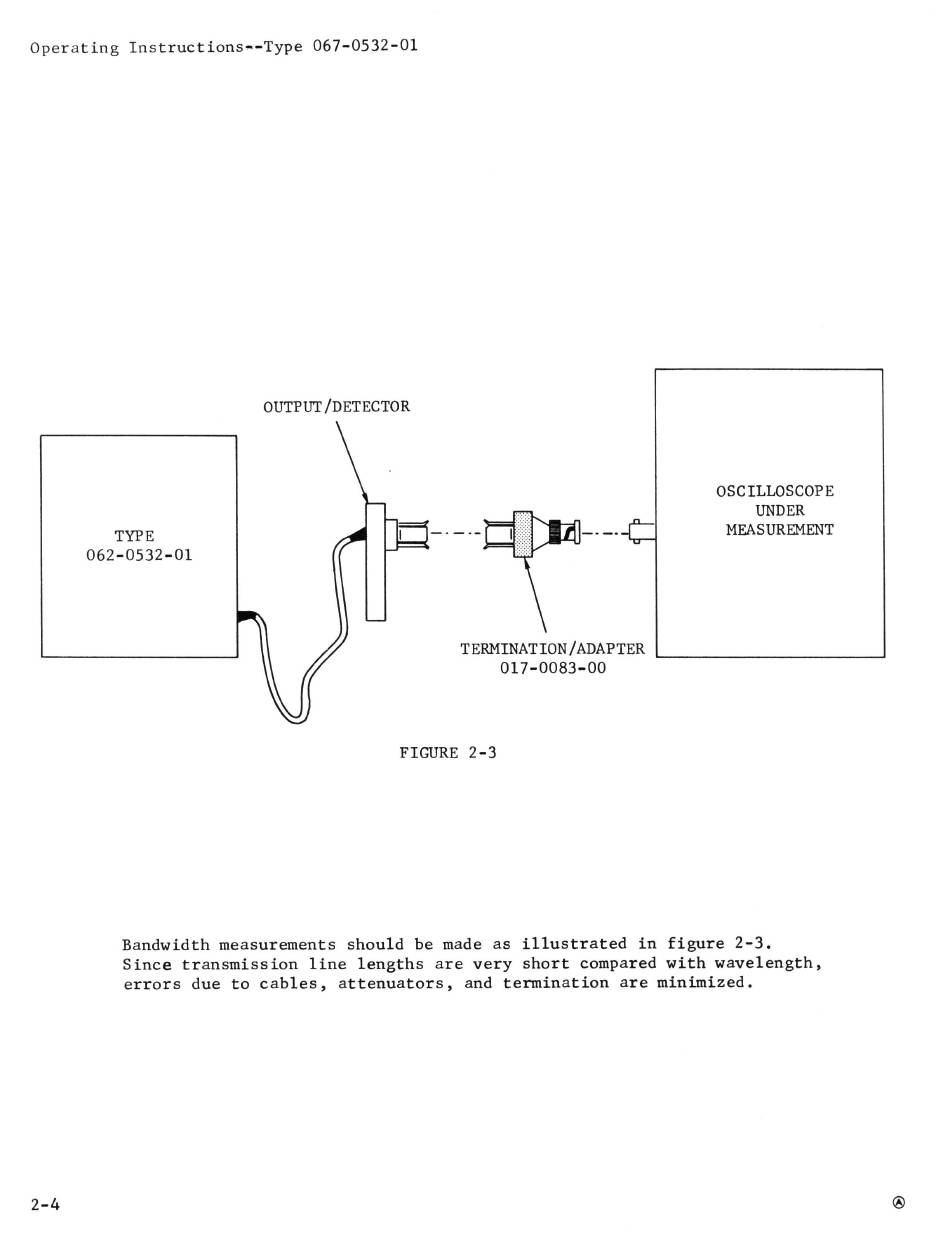

FIGURE 2-3
Bandwidth measurements should be made as illustrated in figure 2-3.
Since transmission line lengths are very short compared with wavelength,
errors due to cables, attenuators, and termination are minimized.
