Inel ST Series Instructions For Installation And Use

ST-01RN - flush-mounted controller with touch panel and radio
receiver mounted in a double-deep box for remote and local control of
roller shutters and blinds.
1. Safety instructions
1.1 Basic guidelines
The ST-01RN controller is handed over in a condition for safe
installation and use, provided that all instructions in the operating manual
and the valid valid safety and accident prevention regulations are
observed.
Only qualified and authorised persons should work on the installation
and repair of electrical equipment. Alterations or changes to the ST-
01RN controller are not permitted. Warranty repairs may only be carried
out by the manufacturer. Only original spare parts and accessories should
be used for post-warranty repairs. Safe operation of the supplied ST-
01RN controller is guaranteed only when used in accordance with the
manufacturer's specifications. The limit values specified in the technical
data must not be exceeded under any circumstances.
1.2 Supplementary safety provisions
Important safety and accident prevention regulations must be observed
when installing, commissioning, maintaining the control. The following
regulations require special attention:
1. Fire regulations
2. Accident prevention regulations
1.3 General comments on hazards and safety measures
The specified notes are general guidelines for the use of INEL controls
in combination with other devices. These instructions must be strictly
adhered to during installation and operation of the devices.
CAUTION Warning of possible damage to the control or
other fixed values if appropriate precautions are not taken.
Danger - Indicates that there is a danger to the life and
health of the user if appropriate precautions are not taken.
• Check the fixing of all screw connections before installing the control
and setting the limit switches.
• Observe applicable safety and accident prevention regulations.
• Before replacing the fuses, ensure that there is a safe voltage break in
the supply circuit, disconnect the supply wires from the controller,
remove the controller board and then replace the fuse and reconnect
the supply wires.
• For INEL equipment with a constant mains supply, a circuit breaker
providing a safe voltage break (e.g. a fuse disconnector) should be
used for the control in addition to the fuse protection, installed so that
all connections can be easily disconnected.
Instruction translated EN
Instructions for installation and use
flush-mounted controllers with radio receiver TYPE: ST
Model:
ST-01RN
• Wires and cables should be checked regularly for insulation damage
and localised breaks.
• If cables are found to be damaged, the damaged cables must be
replaced after the mains supply has been switched off immediately.
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
1.4 warning - important for the safety of persons:
• do not let children play with the controls;
• keep the remote control out of the reach of children;
• watch for moving blinds and keep people away until they are fully
open or closed;
• users of the roller shutter must be trained and instructed in how to
operate the roller shutter and in the dangers associated
People can be considered trained if the employer, administrator or
owner has allowed them to operate the roller shutter and has instructed
them on how to use it.
2. Installation instructions
The ST-01RN controller is a device intended for local or remote control
of roller blinds or shutters. The device is adapted for flush-mounting in a
double-deep box. Local control is by means of a touch panel. Remote
control is possible using remote controls:
PIL-02/04XB, PIL-01PT, PIL-01/04NS, PIL-01/05/09/19PM,
PIL-19/99PMT, PIL-01/05/09/19DL, PIL19/99DLT, PIL-19/99MMT,
PIL-99TST.
2.1 Connecting the ST-01RN controller
Motor connection:
•
Terminal ↓ - wire corresponding to the downward movement of the
motor
•
N terminal - common motor lead
•
Terminal ↑ - wire corresponding to the upward movement of the
motor
•
PE terminal - motor protective wire
Power connection:
•
Terminal L - L1 wire of the installation (phase)
•
N terminal - N wire of the installation (neutral)
•
PE terminal - PE wire of the installation (protective)
with its

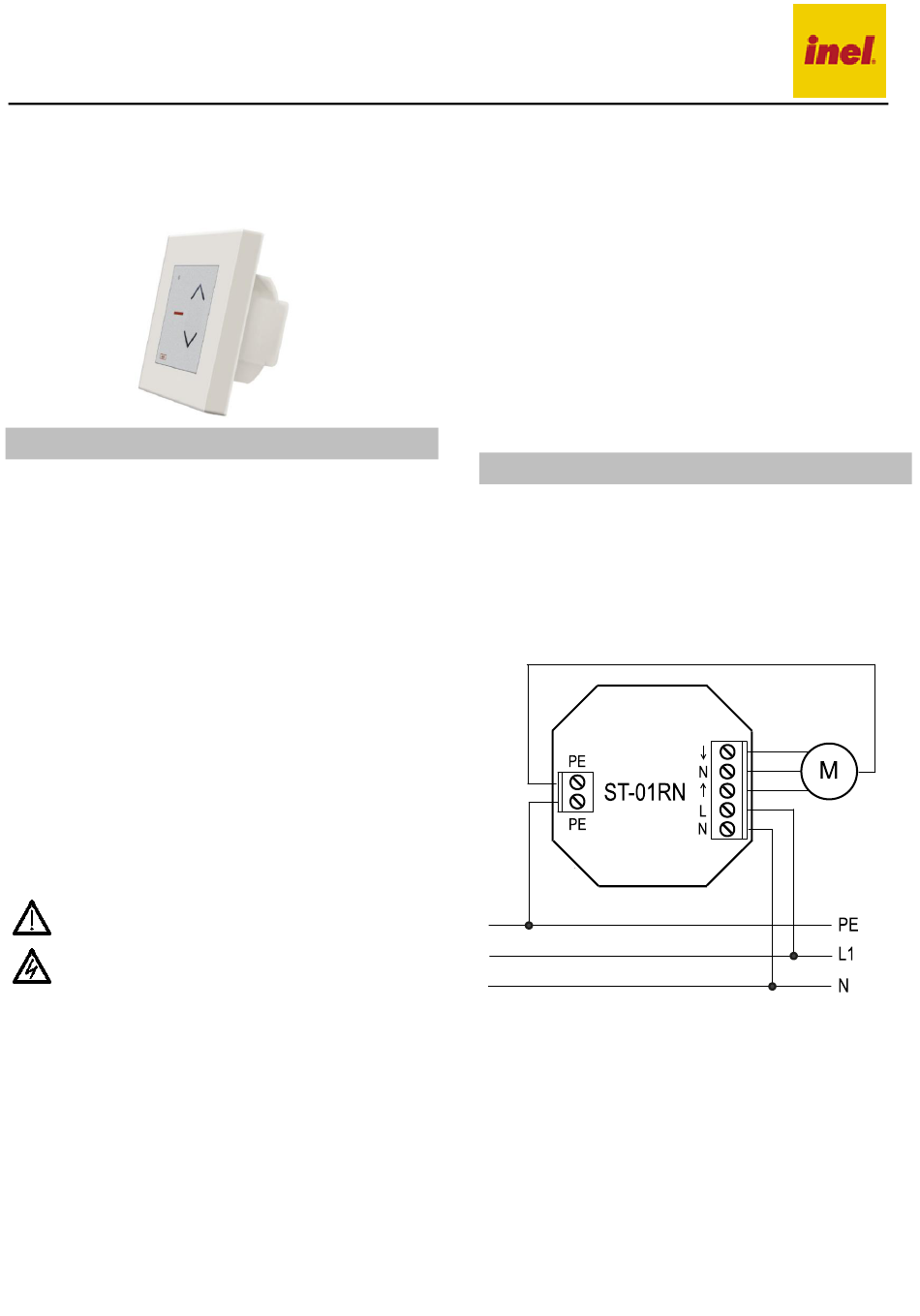

Figure 1
use.
