Inel ST-01RX Original Instructions

Instructions for the assembly and operation of a controller

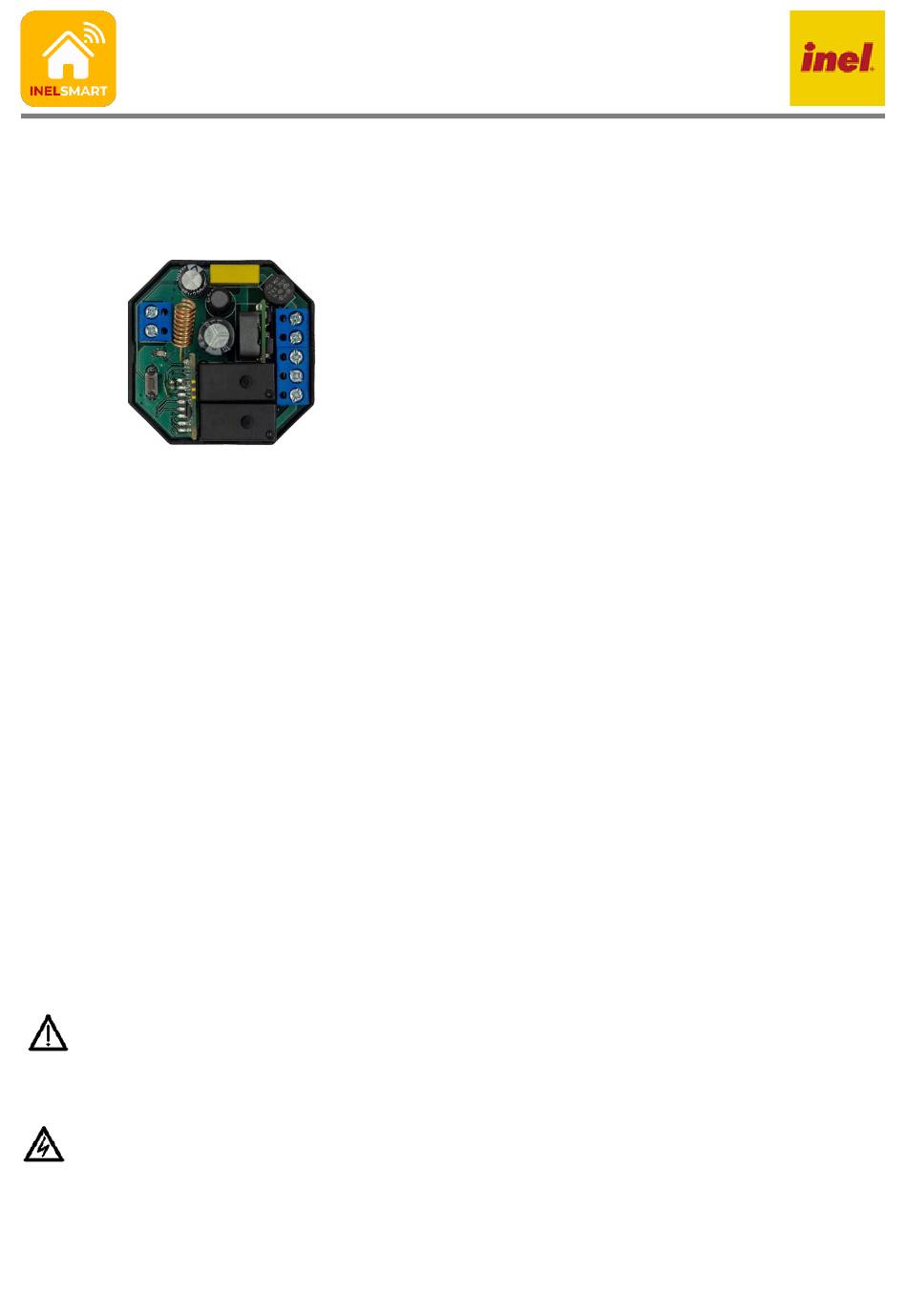

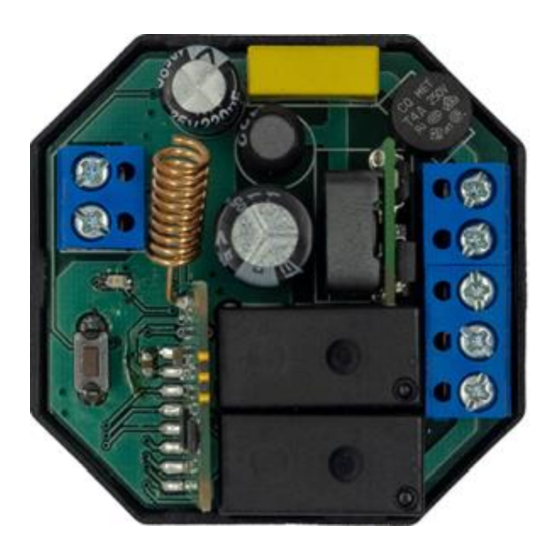

ST-01RX controller with a radio receiver and return channel is an
InelSmart system device. It permits the control of a standard motor
of any manufacturer. The information transmitted via the return
channel permits full control of the device. The radio link operates at
a frequency of 868.30 MHz.
1. Safety instructions
1.1 Basic instructions
ST-01RX controller is put into operation in a condition enabling its
safe assembly and operation, provided that all instructions contained
in the operation manual and relevant applicable safety and accident
prevention regulations are observed.
Assembly and repairs of electrical equipment should be carried out
only by qualified persons with appropriate permits. No conversions
or modifications of ST-01RX controller are permitted. Guarantee
repairs may be carried out only by the producer.
Only original spare parts and accessories should be used for post-
guarantee repairs. The operational safety of the delivered ST-01RX
controller is guaranteed only when used according to the producer's
guidelines. The threshold values given in our technical overview
must in no case be exceeded.
1.2. Supplementary safety provisions
Applicable safety and accident prevention regulations must be
observed with regard to the assembly, start-up or maintenance of
the control. Special attention should be paid to:
•
Fire safety regulations
•
Accident prevention regulations
1.3. General notes on hazards and safety measures
The notes in bold are general instructions applicable to the use of
INEL controllers in combination with other devices. These
indications must be strictly observed when assembling and
operating these devices.
NOTE – warning against possible damage to the
controller or other assets if appropriate precautions
are not taken.
Before assembling the controller and setting limit switches, check
the fixing of all screw connections.
Danger – it means that there is a danger to the user's
life and health if appropriate precautions are not
taken.
Original instructions EN
with a radio receiver, type: ST
Model:
ST-01RX
• Applicable safety and accident prevention regulations must be
• Before replacing the fuses, provide a safe voltage break in the
• In addition to a safety fuse, a switch providing safe voltage
• Conductors and conductive cables should be regularly checked
• If conductor damage is found, mains power supply must be
• Before starting the device, compatibility between its permitted
1.4 Warning - important for the safety of people:
• Don't let children play with the control devices.
• Keep the remote control devices out of the reach of children;
• Observe the moving roller shutter and keep people away from it
• Users of the roller shutter should be trained in and instructed on
ST-01RX controller is designed for the manual or remote control of
motor operation. This device is suitable for flush-mounting in a
double-deep junction box.
Manual control is executed via a shutter switch connected to the
manual input. The controller has a hold function, i.e. any short
pressing of the switch button initiates a full cycle of opening or
closing the roller shutter (the maximum time of applying voltage to
the motor is 100 seconds).
Remote control is possible using
PIL-99TSTX, PIL-01DLX and PIL-05DLX remote controls and
InelSmart control unit.
observed.
supply circuit, disconnect the power cables from the controller,
remove the controller board, and then replace the fuse and
reconnect the power cables.
interruption (e.g. a fuse disconnector) must be used for INEL
devices with a constant mains supply for control, installed so that
all connections can be easily disconnected.
for damaged insulation and local gaps.
immediately disconnected and any damaged conductors
replaced.
voltage and the local supply voltage must be checked.
until it fully opens or closes.
how to operate it and informed about hazards connected with its
use. Users can be considered trained if the employer,
administrator or owner permitted them to start the roller shutter
and instructed them on how to use it.
2. Assembly instructions
