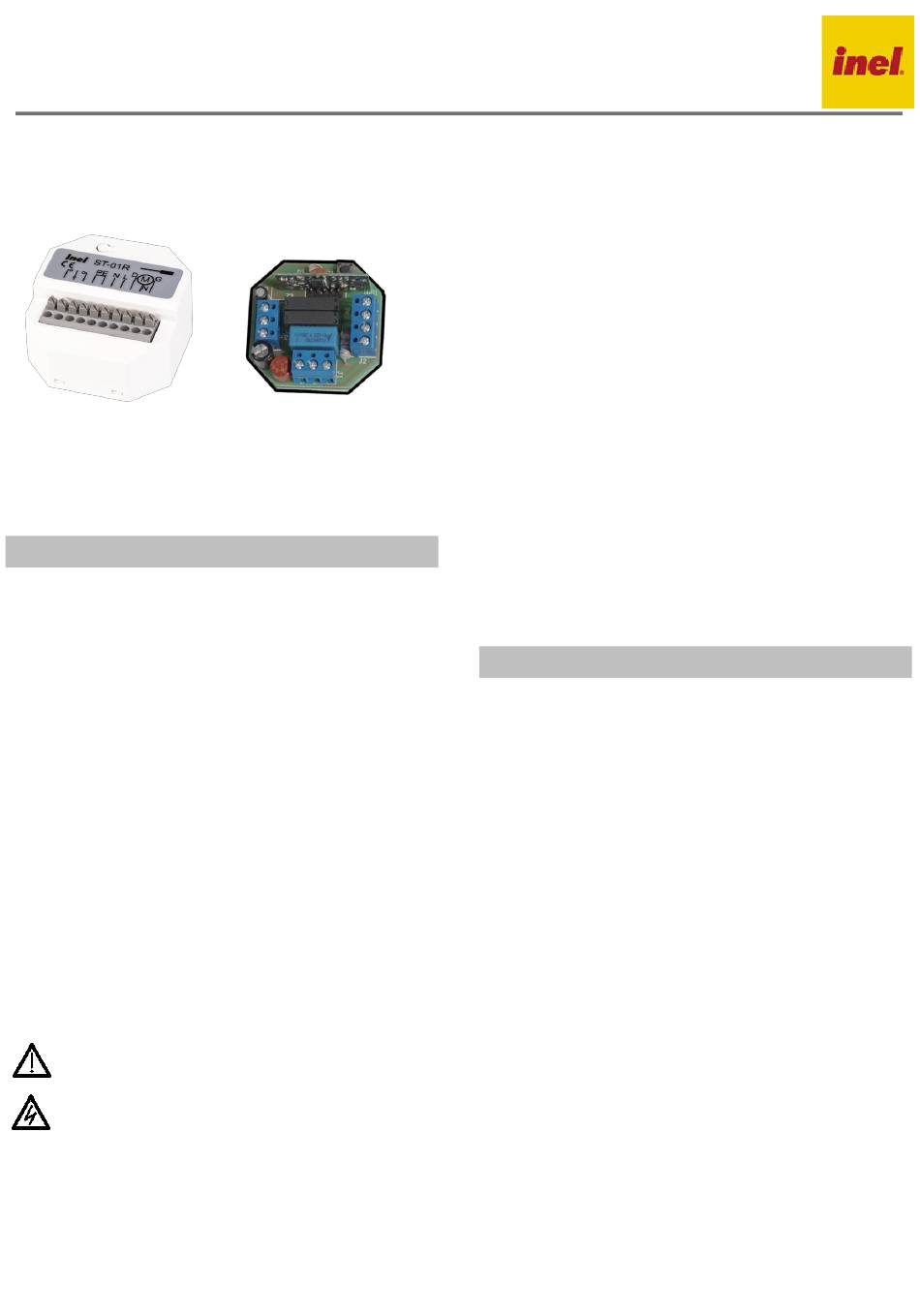

Inel ST-01R Instructions For Installation And Use

The flush-mounted controller with radio receiver mounted in a double-
deep box is manufactured in three types:
ST-01R - individual controller for roller shutters
ST-01RS - individual light controller
ST-01RZ - individual controller for blinds
The ST-01R controller (roller shutter controller) is a device intended for
local or remote control of roller shutter operation.
The ST-01RS controller (light controller) enables the switching on and
off of 230 VAC electrical appliances up to 200 W.
The ST-01RZ controller (controller for blinds) allows precise
positioning (changing the angle of the blind slats).
1. Safety instructions
1.1 Basic guidelines
The ST-01R controller shall be handed over in a condition for safe
installation and use, provided that all instructions in the operating manual
and the valid valid safety regulations have been observed
and accident prevention regulations.
Only qualified and authorised persons should work on the installation
and repair of electrical equipment. Alterations or changes to the ST-01R
controller are not permitted. Warranty repairs may only be carried out by
the
Only original spare parts and accessories should be used for post-
warranty repairs. The operational safety of the supplied ST-01R
controller is guaranteed only when used in accordance with the
manufacturer's specifications.
in the technical data must not be exceeded under any circumstances.
1.2 Supplementary safety provisions
Important safety and accident prevention regulations must be observed
when installing, commissioning, maintaining the control. The following
regulations require special attention:
1. Fire regulations
2. Accident prevention regulations
1.3 General comments on hazards and safety measures
The specified notes are general guidelines for the use of INEL controls
in combination with other devices. These instructions must be strictly
adhered to during installation and operation of the devices.
CAUTION Warning of possible damage to the control or
other fixed values if appropriate precautions are not taken.
Danger - Indicates that there is a danger to the life and
health of the user if appropriate precautions are not taken.
Instructions translated EN
Instructions for installation and use
controllers with radio receiver TYPE: ST
Models:
ST-01R, ST-01RS, ST-01RZ
manufacturer.
The limit values specified
• Check the fixing of all screw connections before installing the control
and setting the limit switches.
• Observe the applicable safety and accident prevention.
• Before replacing the fuses, ensure that there is a safe voltage break in
the supply circuit, disconnect the supply wires from the controller,
remove the controller board and then replace the fuse and reconnect
the supply wires.
• For INEL equipment with a constant mains supply, a circuit breaker
providing a safe voltage break (e.g. a fuse disconnector) should be
used for the control in addition to the fuse protection, installed so that
all connections can be easily disconnected.
• Conductors and cables should be checked regularly for insulation
damage and local breaks.
• If cables are found to be damaged, the damaged cables must be
replaced after the mains supply is immediately switched off.
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
1.4 warning - important for the safety of persons:
• do not let children play with the controls;
• keep the remote control out of the reach of children;
• keep an eye on the moving blind and keep people away until it is fully
open or closed;
• the users of the roller shutter must be trained and instructed in the
operation of the roller shutter and the risks involved in its use.
of its use. People can be considered trained if the employer,
administrator or owner has allowed them to operate the roller shutter
and has instructed them on how to use it.
2. Installation instructions
The ST-01R controller is a device intended for local or remote control of
roller shutters. The device is adapted for flush-mounting in a double-deep
box.
Local control is by means of a manual key connected to the manual input.
The controller has a hold function, i.e. any short pressing of the manual
switch key results in a full cycle of opening or closing the roller shutter
(factory time of applying voltage to the motor is 100 seconds).
Remote control is possible using the remote controls:
PIL-02/04XB, PIL-01PT, PIL-01/04NS, PIL-01/05HN,
PIL-01/05/09/19PM, PIL-19/99PMT, PIL-01/05/09/19DL,
PIL19/99DLT, PIL-99TST and PIL-19/99MMT.
ST-01RZ (controller for blinds)
The controller allows precise positioning (changing the angle of the
louvre slats). Locally by means of a hand button and remotely
using remote controls: PIL-01/04NS, PIL-01/05HN,
PIL-05/09/19PM, PIL-19/99PMT, PIL-05/09/19DL, PIL-19/99DLT,
PIL-99TST and PIL-19/99MMT.
The hand button works in a dual way, depending on the time it is pressed:
- less than 1 second - results in start-up with hold open or close (100
seconds),
- longer than 1 second - the controller performs a short motor switching
setting of the slat angle "slatting".
With remote control, the controller receives commands sent from remote
controls that are in normal and shutter mode. Commands from the remote
control in normal mode cause a full opening or closing cycle. In louvre
mode, each command causes the controller to perform a short motor
switch - "lambing".
