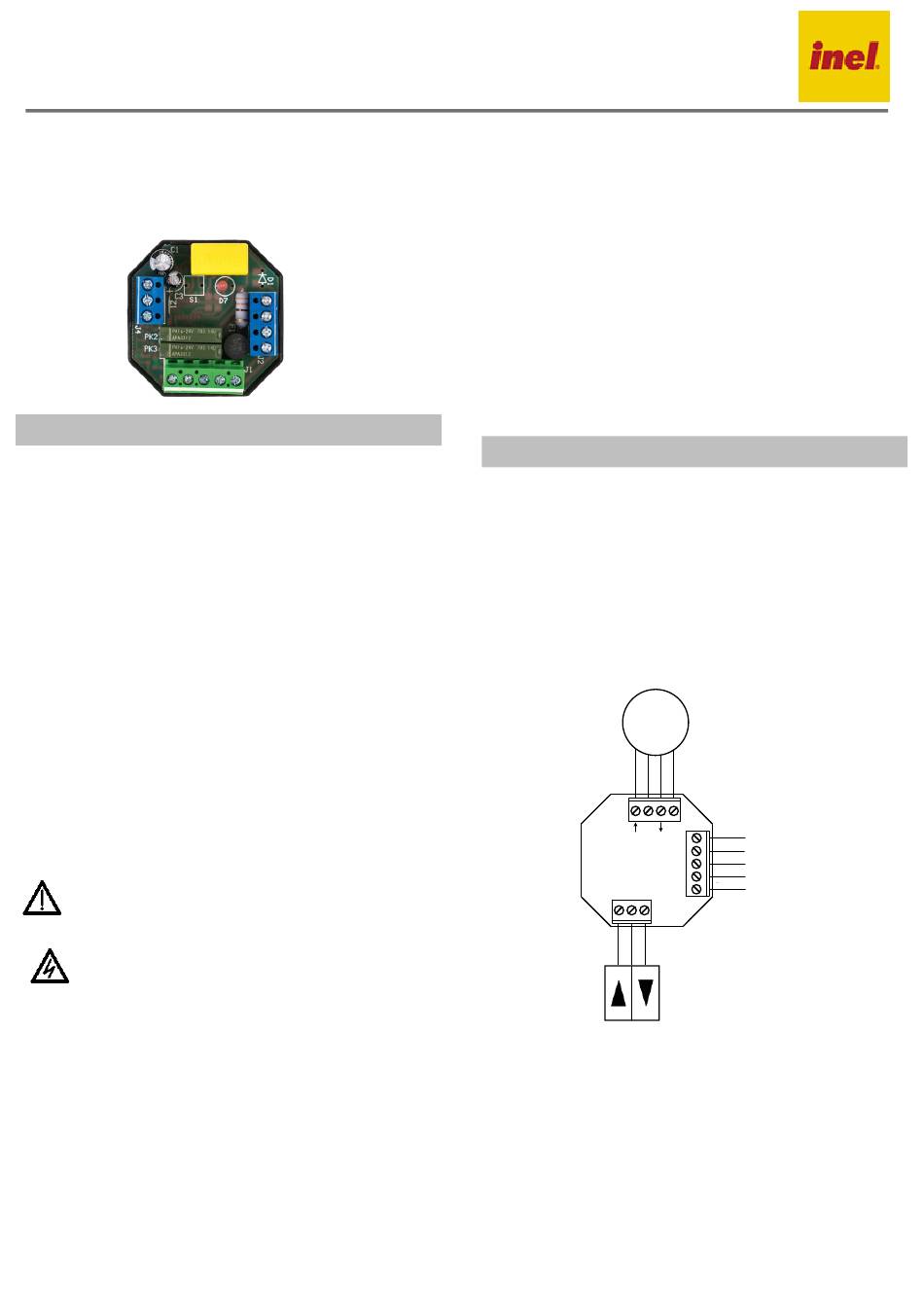

Inel ST-0P Instructions For Installation And Use

ST-0P and ST-0PZ controllers are controllers designed to control 230V
AC drives. They are manufactured in two types:
ST-0P - individual controller for roller shutters
ST-0PZ - individual controller for blinds
1. Safety instructions
1.1 Basic guidelines
The ST-0P controller shall be handed over in a condition for safe
installation and use, provided that all instructions in the operating manual
and the valid valid safety regulations have been observed
and accident prevention regulations. Only qualified and authorised
persons should work on the installation and repair of electrical equipment
and with authorisations. Alterations or modifications to the ST-0P
controller are not permitted. Warranty repairs may only be carried out by
the manufacturer. Only original spare parts and accessories should be
used for post-warranty repairs. The operational safety of the supplied ST-
0P controller is guaranteed only when used in accordance with the
manufacturer's specifications. The limit values given in the technical data
must not be exceeded under any circumstances.
1.2 Supplementary safety provisions
Important safety and accident prevention regulations must be observed
when installing, commissioning, maintaining the control. The following
regulations require special attention:
1. Fire regulations
2. Accident prevention regulations
1.3 General comments on hazards and safety measures
The specified notes are general guidelines for the use of INEL controls
in combination with other devices. These instructions must be strictly
adhered to during installation and operation of the devices.
CAUTION Warning of possible damage to the control or
other fixed values,
if appropriate precautions are not taken.
Danger - Indicates that there is a danger to the life and
health of the user
if appropriate precautions are not taken.
• Check the fixing of all screw connections before installing the control
and setting the limit switches.
• Observe the applicable safety and accident prevention.
• Before replacing the fuses, ensure that there is a safe voltage break in
the supply circuit, disconnect the supply wires from the controller,
remove the controller board and then replace the fuse and reconnect
the supply wires.
• In the case of INEL equipment with a constant mains supply, a circuit
breaker providing a safe voltage break should be used for the control
in addition to the fuse protection (e.g. a fuse disconnector), installed
so that all connections can be easily disconnected.
Instructions translated EN
Instructions for installation and use
controllers TYPE: ST
Models:
ST-0P, ST-0PZ
• Wires and cables should be checked regularly for insulation damage
and localised breaks.
• If cables are found to be damaged, the damaged cables must be
replaced after the mains supply has been switched off immediately.
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
1.4 Warning - important for the safety of persons:
• do not let children play with the controls;
• keep the remote control out of the reach of children;
• watch for moving blinds and keep people away until they are fully
open or closed;
users of the roller shutter must be trained and instructed in how to operate
the roller shutter and in the dangers associated with its use. People can
be considered trained if the employer, administrator or owner has
allowed them to operate the roller shutter and has instructed them on how
to use it.
2. Installation instructions
ST-0P and ST-0PZ controllers are intended for controlling roller shutters
and blinds. They are designed for flush-mounting in a double-deep box.
They have the so-called electronic hold function, i.e. any short pressing
of the manual switch key causes the full cycle of opening or closing the
roller shutter (factory time of applying voltage to the motor is 100 s.).
This function works only when controlling a switch connected to the
"MANUAL" socket. In the case of bus control, the time of applying
voltage to the motor is equal to the time of applying the signal to the bus.
Thus, the ST-0P group of controllers can be controlled with all
commercially available roller shutter controllers
2.1 ST-0P controller wiring diagram
•
To the strip with 3 connectors marked J4
a louvre switch must be connected:
Terminal 1 to UP key
Terminal 2 to common
Terminal 3 to the DOWN key.
.
