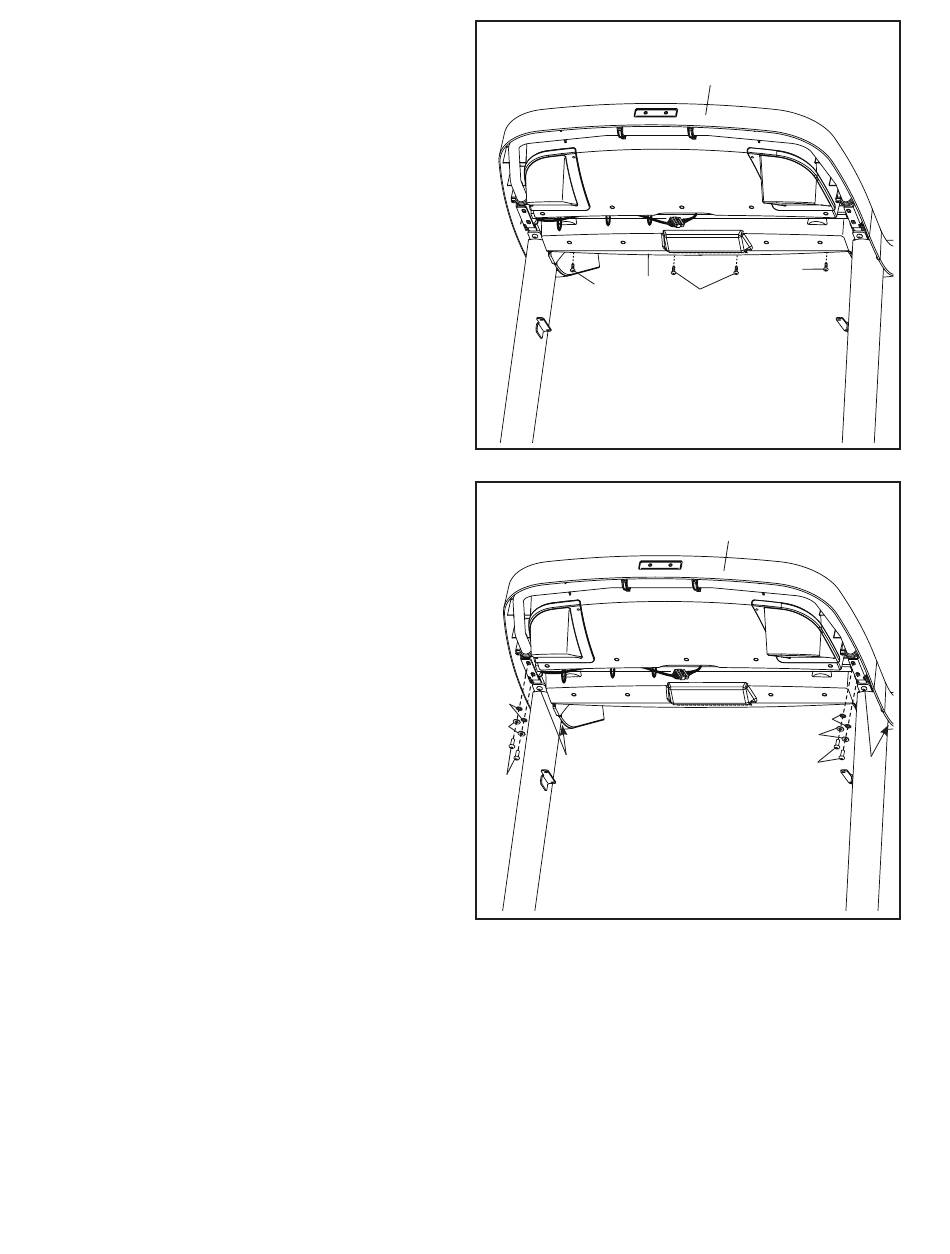

10. Tighten four #8 x 3/4" Screws (5) into the bottom
of the Pulse Bar Bottom (77).
11. Attach the console assembly with four 5/16"
x 3/4" Screws (105), four 5/16" Flat Washers
(103), and four 3/8" External Star Washers (104)
as shown. Start all four Screws, and then
tighten them.
Then, tighten the four 5/16" x 5/8" Screws (3).
10
77
5
11
104
103
3
105
14
Console
Assembly
5
5
Console
Assembly
104
103
105
3
