USER MANUAL
NI 9145
Deterministic Ethernet Expansion Chassis for C Series Modules
This document describes the features of the NI 9145 and contains information about mounting
and operating the device.
Ethernet Port
IN
NI 9145
Contents
NI 9145 Features....................................................................................................................... 2
POWER LED Indicators................................................................................................... 2
FPGA LED........................................................................................................................2
RUN LED Indicators........................................................................................................ 3
ERR LED Indicators......................................................................................................... 3
Safe-State Outputs.............................................................................................................4
Slave Timing Modes......................................................................................................... 4
Mounting the Device.................................................................................................................5
Dimensions........................................................................................................................5
Mounting Requirements....................................................................................................6
Ambient Temperature........................................................................................................7
Mounting the Device Directly on a Flat Surface.............................................................. 7
Mounting the Device on a Panel....................................................................................... 8
Mounting the Device on a DIN Rail............................................................................... 10
Mounting the Device on a Rack......................................................................................11

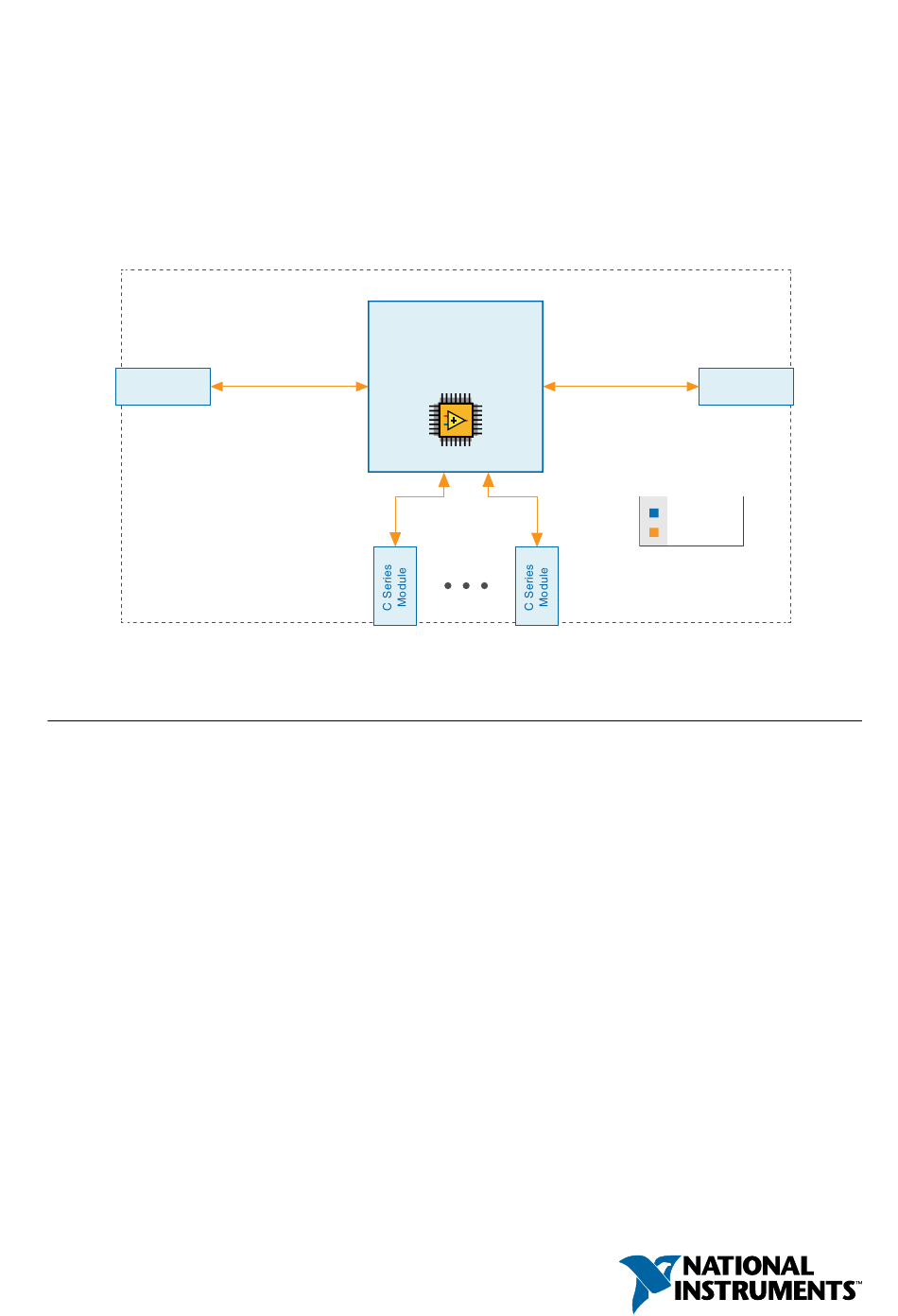

FPGA
+
Ethernet Port
OUT
Hardware
Data
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for National Instruments 9145
Summary of Contents for National Instruments 9145
-
Page 1: Table Of Contents
USER MANUAL NI 9145 Deterministic Ethernet Expansion Chassis for C Series Modules This document describes the features of the NI 9145 and contains information about mounting and operating the device. FPGA Ethernet Port Ethernet Port Hardware Data NI 9145 Contents NI 9145 Features........................ -
Page 2: Ni 9145 Features
Table 1. POWER LED Indicators LED Color LED Pattern Indication Green Solid The NI 9145 is powered on and the connected power supply is adequate. — The NI 9145 is powered off. FPGA LED You can use the FPGA LED to help debug your application or easily retrieve application status. -
Page 3: Run Led Indicators
The NI 9145 is in operational run mode. The NI 9145 inputs and outputs are functional. Flickering The NI 9145 is in bootstrap run mode. The NI 9145 is updating firmware. Run Mode Transition The following figure shows the Run Mode transition. -
Page 4: Safe-State Outputs
In synchronized mode, each conversion cycle begins with a signal from the EtherCAT master/ scan engine. The NI 9145 procedures an error if the external cycle time is too fast for a module. NI Indcom for EtherCAT only supports synchronized mode. -
Page 5: Mounting The Device
You can also mount the NI 9145 in other orientations, on a nonmetallic surface, on a 35-mm DIN rail, on a desktop, or in a rack. Mounting the NI 9145 in these or other configurations can reduce the maximum allowable ambient temperature and can affect the typical accuracy of modules in the NI 9145. -
Page 6: Mounting Requirements
Mounting Requirements Your installation must meet the following requirements for cooling and cabling clearance. Allow 25.4 mm (1.00 in.) on the top and the bottom of the NI 9145 for air circulation, as shown in the following figure. Figure 6. NI 9145 Cooling Dimensions 25.4 mm (1.00 in.) -
Page 7: Ambient Temperature
Measure the ambient temperature at each side of the NI 9145, 63.5 mm (2.50 in.) from the side and 25.4 mm (1.00 in.) forward from the rear of the NI 9145, as shown in the following figure. Figure 8. NI 9145 Ambient Temperature Location 25.4 mm... -
Page 8: Surface Mounting Dimensions
Align the NI 9145 on the surface. Fasten the NI 9145 to the surface using the M4 or number 8 screws appropriate for the surface. Tighten the screws to a maximum torque of 1.3 N · m (11.5 lb · in.). -
Page 9: Panel Mounting Dimensions
Complete the following steps to mount the NI 9145 on a panel. Align the NI 9145 and the panel mounting plate. Fasten the panel mounting plate to the NI 9145 using the screwdriver and M4 × 23 flathead screws. NI provides these screws with the panel mounting kit. Tighten the screws to a maximum torque of 1.3 N ·... -
Page 10: Mounting The Device On A Din Rail
(1.25 in.) (3.47 in.) 63.5 mm (2.5 in.) Mounting the Device on a DIN Rail You can use the NI DIN rail mounting kit to mount the NI 9145 on a standard 35-mm DIN rail. What to Use • NI 9145 •... -
Page 11: Clipping The Device On A Din Rail
Fasten the DIN rail kit to the NI 9145 using the screwdriver and M4 × 25 flathead screws. NI provides these screws with the DIN rail mounting kit. Tighten the screws to a maximum torque of 1.3 N · m (11.5 lb · in.). -
Page 12: Desktop Mounting Dimensions
Complete the following steps to mount the NI 9145 on a desktop. Use the Phillips #1 screwdriver to remove the two screws from the back of the NI 9145. Use the screwdriver and the M3 × 20 flathead screws to attach the adapter bracket to the NI 9145. -
Page 13: Mounting The Ni 9145 Using The Adapter Kit
Upgrading from the NI 9144 to the NI 9145 You can use the NI 9144 to NI 9145 adapter panel mounting kit (NI part number 785984-01) to mount the NI 9145 to an existing NI 9144 panel mounting plate. Contact NI for information about ordering a NI 9144 to NI 9145 adapter panel mounting kit. - Page 14 Fasten the adapter mounting plate to the NI 9144 panel mounting plate using the M4 or number 8 flathead screws. Figure 13. Attaching the Adapter Mounting Plate to the NI 9144 Panel Mounting Plate Align the NI 9145 chassis to the adapter mounting plate and fasten it using the M4 x 23 mm screws. Note You must use the screws included in the kit because they are the correct depth and thread for the chassis and the adapter mounting plate.
- Page 15 (3.467 in.) 272.80 mm (10.740 in.) Resetting the NI 9145 Network Configuration To reset the NI 9145 network configuration, disconnect and reconnect the network cables on the NI 9145 chassis. NI 9145 User Manual | © National Instruments | 15...
-
Page 16: Updating Your Firmware
Do not disconnect the device or interrupt firmware while it is downloading. Vendor Extensions to the Object Dictionary Most object dictionary entries are defined by the EtherCAT and CANOpen specifications for modular slave devices. The NI 9145 and the C Series modules have vendor extensions to those specifications. Note Visit ni.com/manuals... -
Page 17: Worldwide Support And Services
1 866 ASK MYNI (275 6964). For support outside the United States, visit the Worldwide Offices section of ni.com/niglobal access the branch office websites, which provide up-to-date contact information. NI 9145 User Manual | © National Instruments | 17... - Page 18 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
