cecotec MAMBO COOKING VICTORY Instruction Manual

cecotec MAMBO COOKING VICTORY Instruction Manual

Multifunctional cooking robot
Hide thumbs Also See for MAMBO COOKING VICTORY:
Table of Contents

Advertisement

Quick Links

Download this manual
M A M B O COOKING VICTORY
M A M B O COOKING UNIQUE
M A M B O COOKING TOTAL GOURMET
Robot de cocina multifunción/Multifunctional cooking robot
Manual de instrucciones
Instruction manual
Manuel d'instructions
Bedienungsanleitung
Manuale di istruzioni
Manual de instruções
Handleiding
Instrukcja obsługi
Návod k použití

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAMBO COOKING VICTORY and is the answer not in the manual?

Questions and answers

Related Manuals for cecotec MAMBO COOKING VICTORY

Summary of Contents for cecotec MAMBO COOKING VICTORY

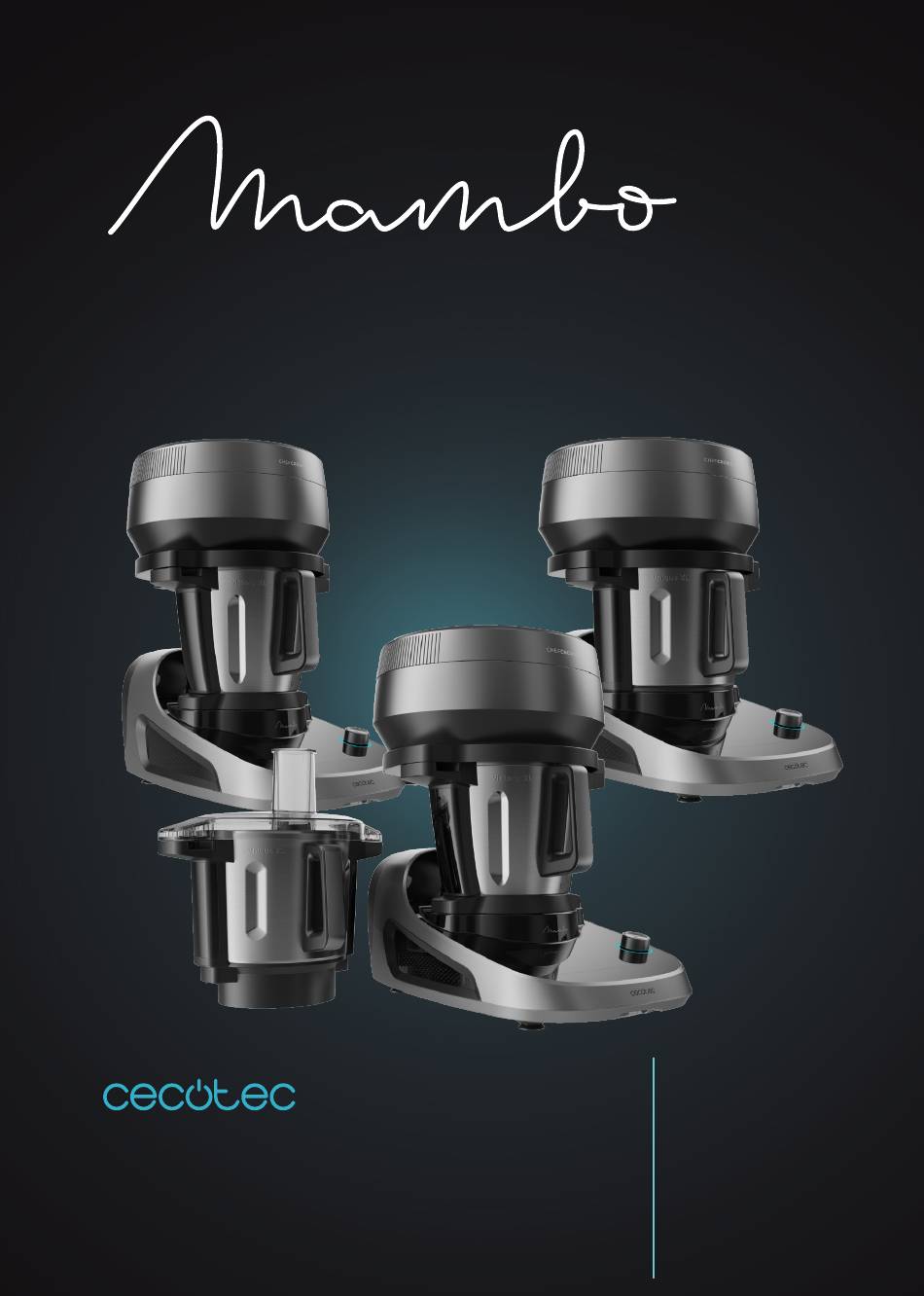

  • Page 1 M A M B O COOKING VICTORY M A M B O COOKING UNIQUE M A M B O COOKING TOTAL GOURMET Robot de cocina multifunción/Multifunctional cooking robot Manual de instrucciones Instruction manual Manuel d’instructions Bedienungsanleitung Manuale di istruzioni Manual de instruções Handleiding Instrukcja obsługi Návod k použití...

  • Page 2: Safety Instructions

    Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger. Switch off the appliance and unplug it from the mains when not in use or when cleaning, before changing accessories, disassembling, or assembling the product.
  • Page 3 If you detect any damage, refrain from using the appliance and contact Cecotec’s official Technical Support Service. Make sure the blades are properly mounted, with the sealing ring in place, before using the appliance.
  • Page 4 If the product stops working unexpectedly, switch it off, unplug it from the mains immediately, and contact Cecotec’s official Technical Support Service. To prevent steam from suddenly escaping or spillage, make sure the cover is properly placed in its position before operating the device and do not remove it until the device stops.
  • Page 5 The hole on the product’s cover can only be covered with the measuring cup. Do not use clothing or other objects. This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices. This appliance can be used by children aged 8 and above if they have been given supervision or instruction concerning the use of the appliance in a safe way and...

  • Page 6: Parts And Components

    Each accessory is marked with a “V” or a “U” depending on the jar to which it belongs. Make sure to match the letter marked on the fittings with the initial of the name on each jar. Fig. 1. 1. Mambo CooKing Victory 2. Mambo CooKing Unique 3. ChefCrown Automatic food dispenser 4. 2-level steamer 5.
  • Page 7 ENGLISH Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service. Clean the jar and other accessories thoroughly with hot water, detergent, and a non-abrasive sponge.
  • Page 8 ENGLISH MamboMix Unique blade Sauté Blade Double Whisk Food processor (cover, presser cap, double-sided blade, centre shaft) Cleaning accessory Boiling Basket 2-level steamer Spatula Measuring cup Instruction manual Mambo CooKing Total Gourmet Cooking robot Cooking robot Victory XL stainless-steel jar Unique XL stainless-steel jar ChefCrown automatic food dispenser (cover, removable cover grille, container set, sealing ring, ceramic plate, dispenser base, removable bottom cover, and removable motor)

  • Page 9: Operation And Installation

    ENGLISH 3. OPERATION AND INSTALLATION Assembly of stainless-steel Victory XL and Unique XL stainless steel jars Place one of the jars on the main body, making the handle of the jar coincide with the front of the main body, if it is not correctly positioned and you try to start cooking, the A2 warning will appear on the display.
  • Page 10 Use the spatula to mix and remove the stuck food for the cooking robot to resume the cooking process. Compatibilities Blades, MamboMix Victory Blade → 04700 - Mambo CooKing Victory cooking robot S Blades, MamboMix Unique blade, Saute Blade → 04701 - Mambo CooKing Unique cooking robot Assembling the cleaning accessory (Fig.
  • Page 11 ENGLISH Note Use the measuring cup and not any accessory or object to avoid splashing and reduce heat loss of the jar. When cooking with temperature setting, place the measuring cup in the cover’s gap without locking it in place. This way, steam will be safely released. Spatula The spatula is the only component to be used to stir the food in the jar.
  • Page 12 ENGLISH 5. Ceramic plate 6. Dispenser base 7. Detachable motor 8. Removable bottom cover The dispenser is placed on top of either of the two jars. To do this, all the parts that make up the dispenser must be assembled. Fig. 13 1.
  • Page 13 ENGLISH inside of the dispenser base. The dispenser should always have the same placement for the order of the containers. Container 0 should be aligned with the inlet hole of the jar and, clockwise, followed by containers 6 (liquids), 5, 4, 3, 2 and 1. Fig. 18 Warning If the container set does not fit properly, move slightly to both sides until it fits properly.
  • Page 14 Do not pour food into the jar while it is operating with this accessory to avoid damage or blockage. Compatibility Mambo CooKing Victory Cooking robot Assembling the Double Whisk accessory The Double Whisk whipping accessory should be placed on top of the accessory bracket. The two tabs protruding from the bracket should fit into the slots of the whisk whipper.
  • Page 15 ENGLISH Emulsifies evenly for you to finish off your dishes as desired. 10. Mix: performs homogeneous mixtures with its 10 Mambo speeds. Perfect doughs obtained in the simplest way. 11. Cook: cooks all types of dishes, such as stews, chicken with almonds or ratatouille, all of them perfectly textured.
  • Page 16 ENGLISH final results. Stir-fry from garlics to meats. Brown food to taste, adjusting power and time. 26. Browning: browning some ingredients, such as garlic and meat before cooking, enriches dishes and enhances their end flavour. Brown food to taste, adjusting power and time. 27.

  • Page 17: Operation

    ENGLISH 43. Timer function: cook your recipes whenever you want, indicating at what time you want the automatic cooking to start. 44. Share recipes: share your favourite recipes with your friends, family or other people in the Mambo community. 45. Create recipes: create your own recipes and use them whenever you want. 5.
  • Page 18 ENGLISH Settings This menu contains the Wi-Fi settings to make the connection to Wi-Fi or mobile app, to download and link to the application, for pending updates, to select a language, show the number of recipes downloaded, get help, and adjust the screen brightness. Manual control This menu will prompt you to place a jar first, so that the cooking robot will detect which jar it is, and show you which accessories you want to put in.
  • Page 19 ENGLISH Please note Container 0 is the initial container, and no ingredients are placed in it as it has direct communication with the inside of the jar. Containers 1, 2, 3, 4 and 5 are the ones in which solid and liquid foods can be placed. Remember to drop the food and not to press them.
  • Page 20 ENGLISH Start/Pause/Select knob Once connected and after entering the settings for time, speed, temperature, and heating power, press this knob to start your Mambo cooking robot. By pressing the knob to the right of the display during the cooking process, the cooking robot pauses and goes into standby (you can open the cover, remove the jar, etc., but you must place it properly before restarting cooking).
  • Page 21 ENGLISH Speed Press this icon in standby mode or during the cooking process. The appliance will enter speed-setting mode. The signal on the display will flash. It will then be possible to adjust the speed. Turn the knob clockwise to choose the desired speed. The speed range is from level 0 to 10 for Unique XL jar and 0 to 15 for Victory XL jar.
  • Page 22 ENGLISH Timer To start this mode, enter the timer function on the main panel, then press the time icon to add the desired time. Pressing start will start the countdown. At the end of the time, the device will emit an acoustic signal. If you press the start knob without indicating any time, the robot will display a prompt telling you whether you want to start a progressive count or add values to the time.
  • Page 23 ENGLISH Max. Mac. ROBOT ACCESSORY IMAGE FUNCTION speed capacity Cutting, Blade 3.2 l grinding, etc. Kneading 2000 g Mambo MamboMix dough for dough CooKing bread, pizza, maximum Victory etc. Cooking robot Mixing, beating Butterfly 12 egg the egg whites whisk whites or the cream...
  • Page 24 ENGLISH Cutting, S blades 3.2 l grinding, etc. Kneading 2500-g MamboMix dough for dough bread, pizza, maximum etc. Mambo CooKing Sauté Blade Mixing, stirring 3.2 l Unique Cooking robot Whisking egg Double 20 egg whites or Whisk whites cream Laminating, Food Inlet cutting,...
  • Page 25 ENGLISH Cleaning Cleaning 200-500 mL accessory Steam Steam cooking cooker Steaming Steam cooking Mambo basket CooK- ing Total Gourmet Cooking robot (Victo- ry+Unique) 1 Liquid container ChefCrown 1.2 L Dispensing (Victo- automatic ingredients food 5 Solid/ automatically dispenser Liquid (Unique) containers 0.4 L Warning...

  • Page 26: Cleaning And Maintenance

    ENGLISH 6. CLEANING AND MAINTENANCE Cleaning the robot The stainless-steel jars are dishwasher safe. To be able to wash it in the dishwasher, remove the accessory you have used, as well as the accessory bracket. Turn off and unplug the cooking robot from the power supply and allow it to cool down before cleaning it.

  • Page 27: Troubleshooting

    ENGLISH 7. TROUBLESHOOTING Warning code Description Possible cause Possible solution Re-assemble the jar and jar cover, make sure all A01 warning The jar or the jar’s cover are Locking system. the parts are assembled not fixed properly. properly and tightly and try operating it again.
  • Page 28 The motor for locking the jar closed and then try A09 warning jar lock. has not been activated. again. Please contact the official Cecotec Technical Support Service. High speeds For safety reasons, high cannot be speeds must not be used...

  • Page 29: Technical Specifications

    Model: Mambo CooKing Victory / Mambo CooKing Unique / Mambo CooKing Total Gourmet Power: Mambo CooKing Victory Cooking robot → 1700 W (Motor 700 W; Heating power 1000 W) Mambo CooKing Unique Cooking robot → 2200 W (Motor 700 W; Heating power 1500 W) Mambo CooKing Total Gourmet Cooking robot →...

  • Page 30: Technical Support And Warranty

    Compliance with the above guidelines will help protecting the environment. 10. TECHNICAL SUPPORT AND WARRANTY Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

  • Page 31: Declaration Of Conformity

    ENGLISH 12. DECLARATION OF CONFORMITY Cecotec Innovaciones hereby declares that these three cooking robots, model 04700_Mambo CooKing Victory, 04701_Mambo CooKing Unique and 04702_Mambo CooKing Total Gourmet are in conformity with the Radio Equipment Directive 2014/53/EU. The full text of the EU Declaration of Conformity can be found on the following website: www.cecotec.es...
  • Page 32 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 34 Fig. / Img. / Rys. / Obr. 1 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 35 Fig. / Img. / Rys. / Obr. 2 Fig. / Img. / Rys. / Obr. 3...
  • Page 36 Fig. / Img. / Rys. / Obr. 4 Fig. / Img. / Rys. / Obr. 5 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 37 Fig. / Img. / Rys. / Obr. 6 Fig. / Img. / Rys. / Obr. 7...
  • Page 38 Fig. / Img. / Rys. / Obr. 8 Fig. / Img. / Rys. / Obr. 9 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 39 Fig. / Img. / Rys. / Obr. 10 Fig. / Img. / Rys. / Obr. 11...
  • Page 40 Fig. / Img. / Rys. / Obr. 12 Fig. / Img. / Rys. / Obr. 13 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 41 Fig. / Img. / Rys. / Obr. 14 Fig. / Img. / Rys. / Obr. 15...
  • Page 42 Fig. / Img. / Rys. / Obr. 16 Fig. / Img. / Rys. / Obr. 17 Fig. / Img. / Rys. / Obr. 18 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 43 Fig. / Img. / Rys. / Obr. 19 Fig. / Img. / Rys. / Obr. 20...
  • Page 44 Fig. / Img. / Rys. / Obr. 21 Fig. / Img. / Rys. / Obr. 22 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 45 Fig. / Img. / Rys. / Obr. 23...
  • Page 46 Fig. / Img. / Rys. / Obr. 24 Fig. / Img. / Rys. / Obr. 25 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 47 Fig. / Img. / Rys. / Obr. 26...
  • Page 48 Fig. / Img. / Rys. / Obr. 27 Fig. / Img. / Rys. / Obr. 28 MAMBO COOKING VICTORY_UNIQUE_TOTAL GOURMET...
  • Page 49 Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar (Valencia), Spain RP01230802...

This manual is also suitable for:

Mambo cooking uniqueMambo cooking total gourmet047000470104702
