Camera user interface

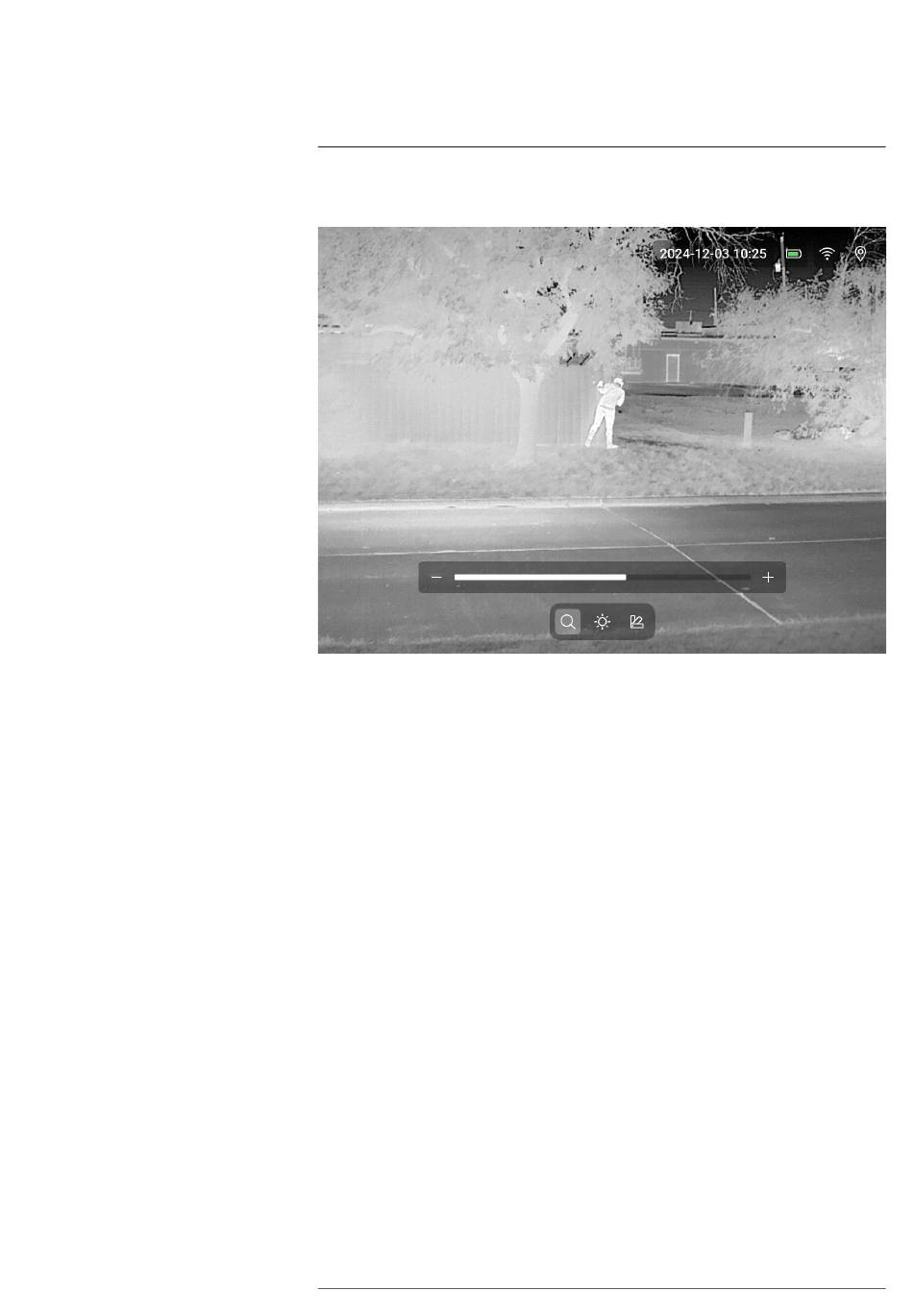

5.1 Main toolbar
1. Zoom
2. Brightness
3. Palettes
5.1.1 Menu system
• Zoom:
◦ Press the Option button to display the menu. Zoom is selected by default as the
first option.
◦ Adjust the zoom level with the Left/Right button.
• Brightness:
◦ Press the Option button to get to the second option, Brightness.
◦ Adjust the brightness level with the Left/Right button.
• Palettes:
◦ Press the Option button to get to the third option, Palettes.
◦ Adjust palettes with the Left/Right button.
5.2 Diopter adjustment
The diopter adjustment allows the user to change the viewfinder to suit their vision for im-
age sharpness. Look through the camera and turn the diopter adjustment ring until text
and graphics are sharp.
