ISS Technology Update
Manually adjusting the .5m 10GbE CX4 cable
To manually adjust the .5m 10GbE CX4 cable to meet the bend radius requirements, complete the following steps:
1. Plug the .5m 10GbE CX4 cable ends into the ports on the adjacent 1/10G Virtual Connect Ethernet modules as shown in
Figure 5-1.

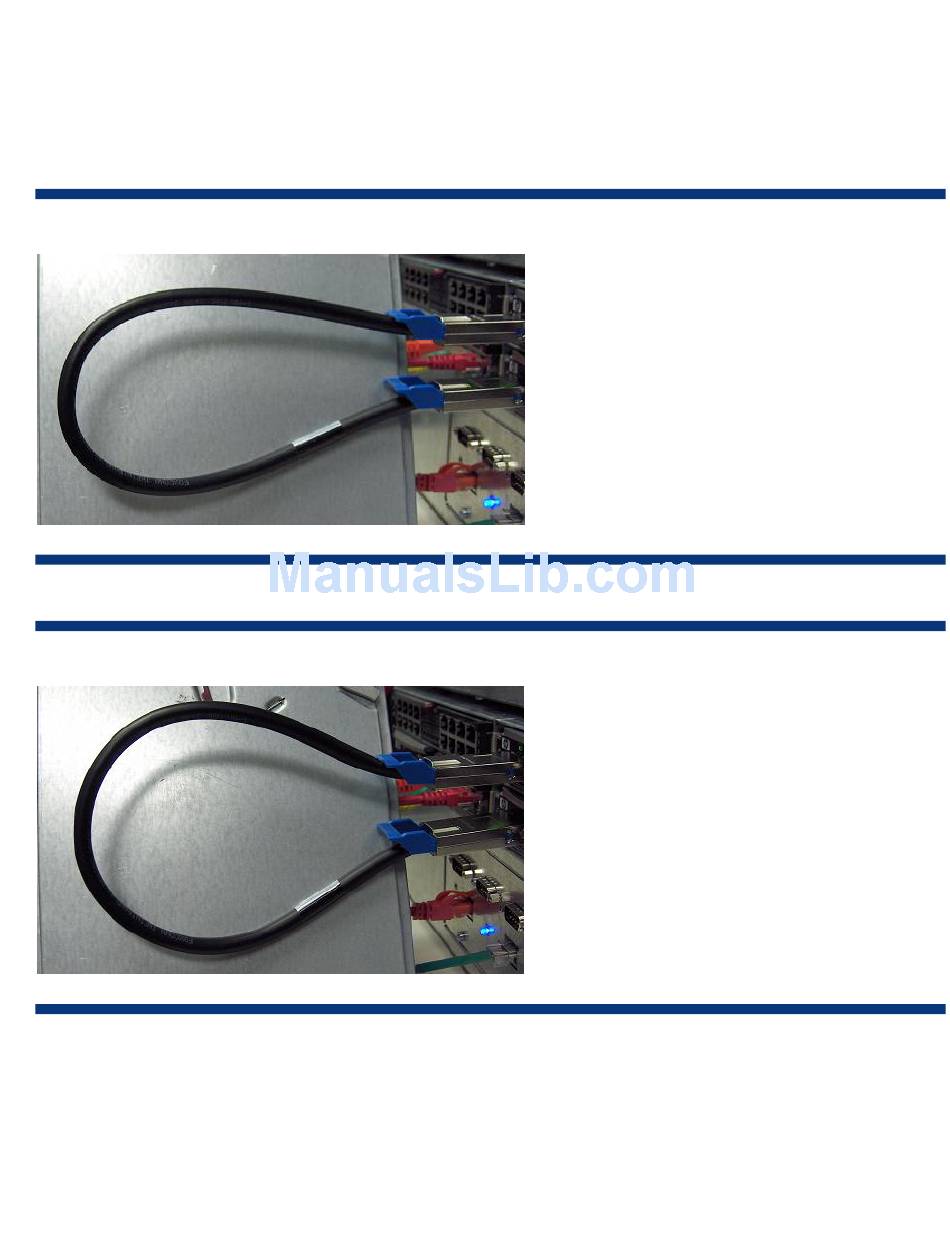

Figure 5-1. Initial bend radius
2. Manually form the cable to have a larger, more rounded configuration as shown in Figure 5-2.
Figure 5-2. Adjusted bend radius
Volume 6, Number 7
14
