BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without
notice.
Please leave these instructions for the consumer.They contain important information.
NOTES:
1.
Flush the water supply pipes thoroughly to remove debris.
2.
The highest working pressure for handspary is 0.5Mpa(5 bars). If exceeds 0.5Mpa(5 bars), a pressure
reducer is needed. The highest water and environment temperature is 80° C. Please keep handspray away
from heater, or maybe damage it and hurt user.
* Finish/color code to be specified while ordering.

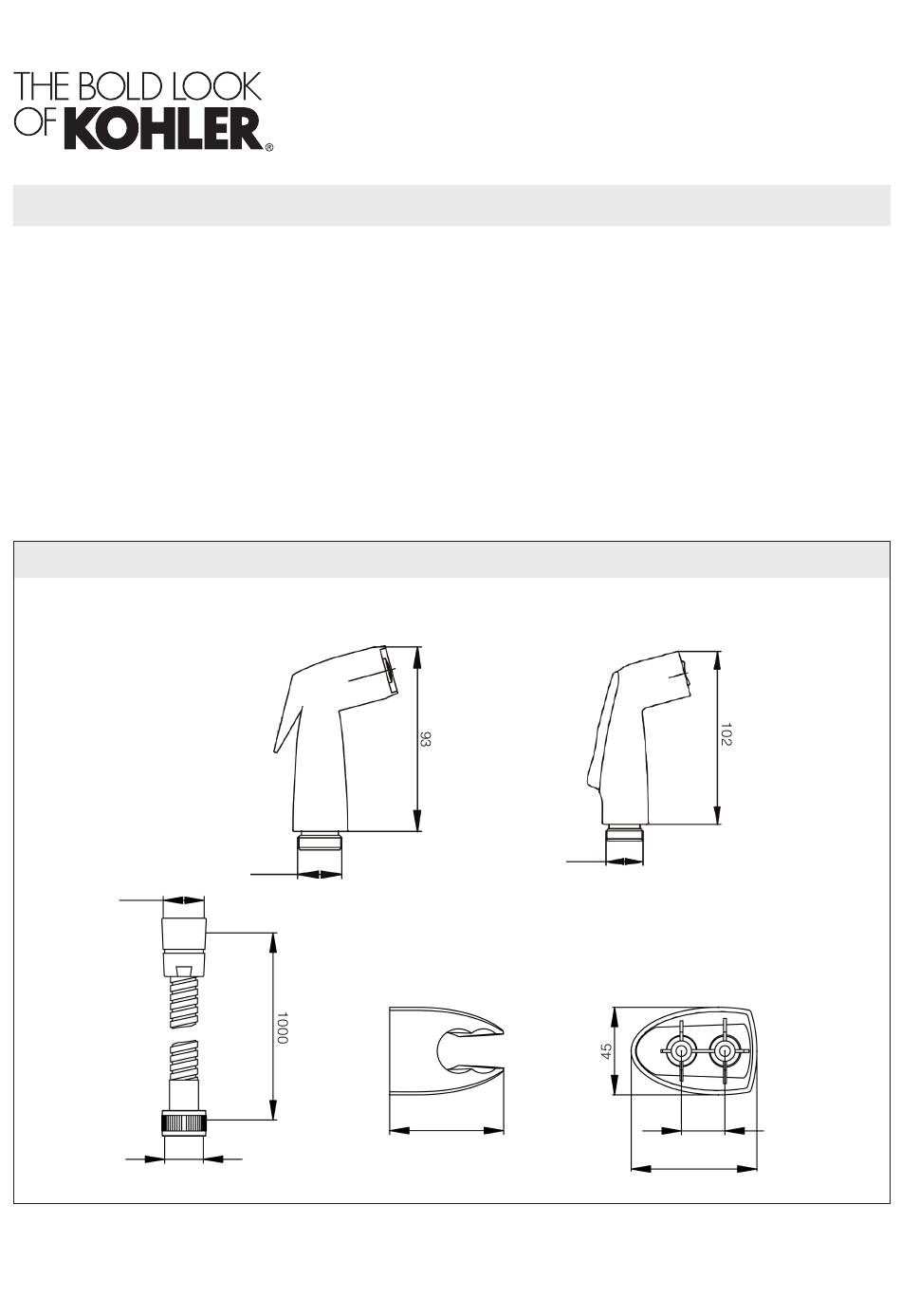

ROUGH-IN DIMENSIONS (in mm)
G1/2"
G1/2"
1361660-ME2-A
12925ME-**
G1/2"
INSTALLATION INSTRUCTIONS
G1/2"
59
-1-
HEALTH FAUCET
12925ME-**/ 12927ME-**
12927ME-**
22.5
65
CUFF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler CUFF 12925ME Series
Summary of Contents for Kohler CUFF 12925ME Series
- Page 1 HEALTH FAUCET 12925ME-**/ 12927ME-** BEFORE YOU BEGIN All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
- Page 2 Tighten screws(3) to secure bracket. Put the flow regulator(5) and washer(6) into the end of hose(7) and connect to the water supply. Hang the handspray on the bracket. CLEANING INSTRUCTIONS Cleaning Solution KOHLER CLEANING SOLUTION SERVICE PARTS 1073948 1073949 (Handspray) (Handspray)
