Kohler 12969T-C Installation Instructions

Installation INSTRUCTIONS
12966T-C 12969T-C Straight Shower Column With Showerhead
12967T-C Curved Shower Column With Showerhead

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Shut off the water supplies to the fitting.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. Recommended minimum working pressures is 0.2MPa(2bar).
5. The highest working pressure for showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer
is needed. The highest water and environment temperature is 60°C. Please keep handspray, showerhead and the
shower arm away from heater, or it may become damaged and cause injury to the user.

HANDLE OPERATION

Turn the diverter handle counter-clockwise, the back connector of the diverter works; turn it clockwise, showerhead
works.

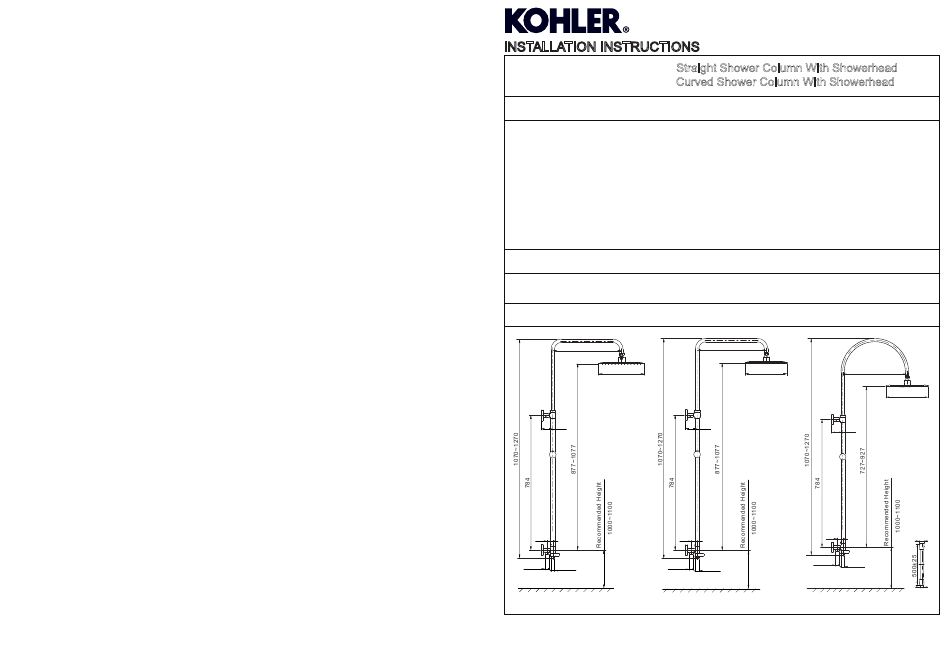

ROUGH-IN DIMENSIONS

400
254×254
68
34 34
G1/2˝
G1/2˝
G1/2˝
Finished Floor
12966T-C 12969T-C
1265604-2A-A
400
Ø254 400
68
68
34
G1/2˝
G1/2˝
G1/2˝
Finished Floor
12967T-C
Ø254
G1/2˝
G1/2˝
1
