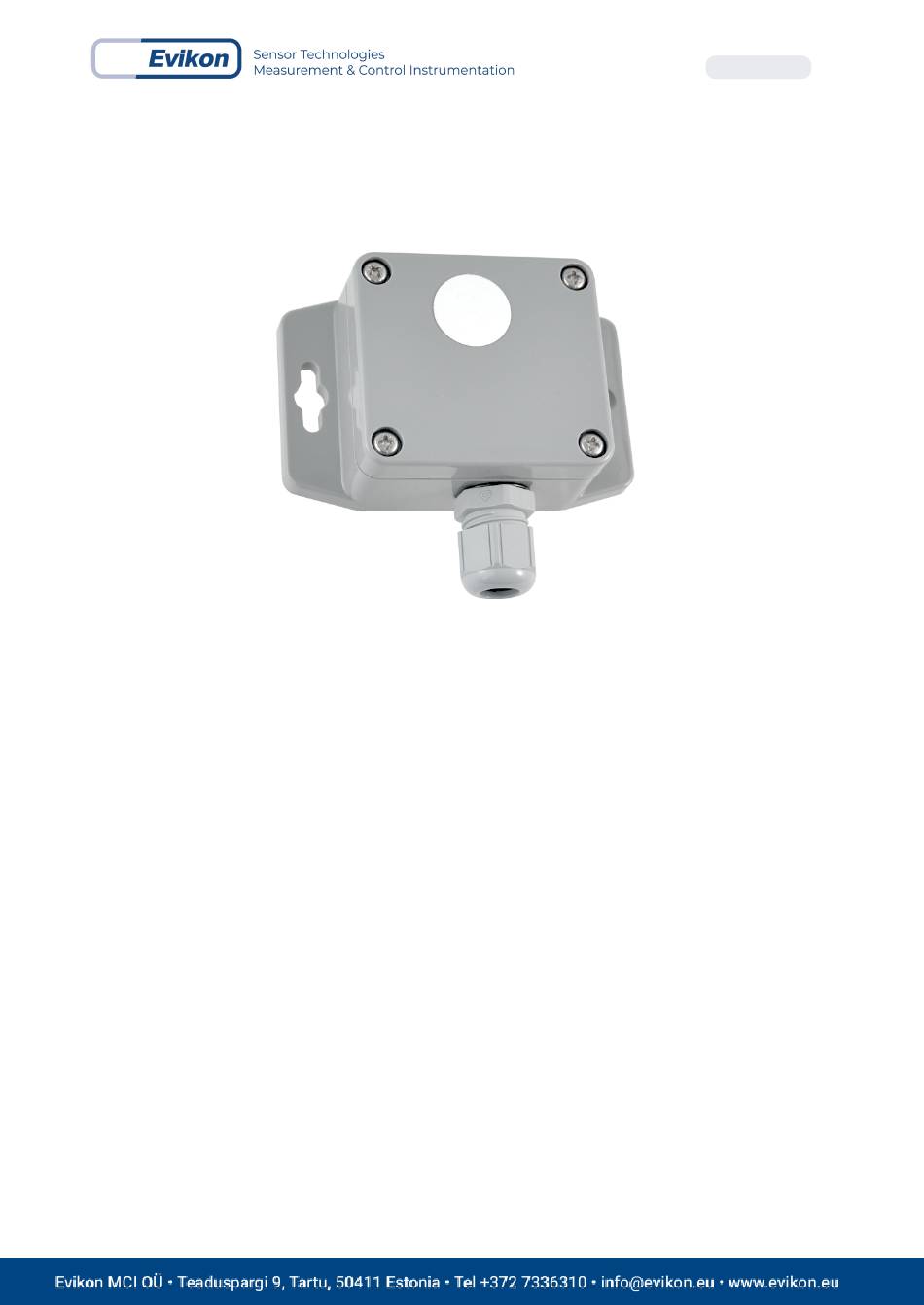

- Page 1 Updated 16 Dec 2024 Carbon Monoxide Transmitter E2617-CO USER MANUAL...
-
Page 2: Table Of Contents
Updated 16 Dec 2024 Table of Contents Carbon Monoxide Specifications Product Description Safety requirements Operating conditions Installation guidelines Mounting dimensions Electrical connections Delivery set Warranty Manufacturer contacts... -
Page 3: Carbon Monoxide
Updated 16 Dec 2024 Carbon Monoxide Carbon Monoxide is a colorless, odorless and tasteless gas that is highly toxic. Synonyms: Carbonous oxide, Carbon (II) oxide, Flue gas, Monoxide Chemical formula Molar weight Relative gas density (to air) 0.97 Conversion 1 ppm = 1.15 mg/m Boiling point -191.5°C Low explosive limit (LEL), %vol. -
Page 4: Specifications
Updated 16 Dec 2024 Specifications Sensor type Electrochemical cell Sampling method Diffusion Detection range 0-100 ppm, 0-200 ppm, 0-300 ppm Maximum overload 2000 ppm Response time T90 < 30 s Sensor protection Microporous PTFE dust filter Sensor lifetime > 10 years in fresh air Sensitivity drift <... -
Page 5: Product Description
Updated 16 Dec 2024 Product Description E2617 series gas transmitters are easy-to-install and easy-to-use instruments. The devices utilize fully novel fully calibrated gas sensors with excellent repeatability, stability, and long lifetime. E2617 series provide an analog output with user-selectable signal type, 4-20 mA or 0-10V. Safety requirements Misuse will impair the protection of the product. -
Page 6: Installation Guidelines
Updated 16 Dec 2024 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN 60079-29-2 and EN 45544-4 are also recommended for further instructions and related information about the installation. -
Page 7: Mounting Dimensions
Updated 16 Dec 2024 Mounting dimensions The IP65 instrument sensor is equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. NOTE! Never stab or press the filter near its center where the sensor is located since this may damage the sensor. -
Page 8: Electrical Connections
To connect the wire, loosen the screw, insert the wire end into the terminal hole and tighten the screw. The analog output can be changed between 4-20 mA and 0-10 V type using jumper on the transmitter’s PCB. Delivery set ● Transmitter E2617-CO ● Mounting accessories: ○ 2 screws with plastic dowels... -
Page 9: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorised modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 9, Tartu 50411 Estonia info@evikon.eu...
