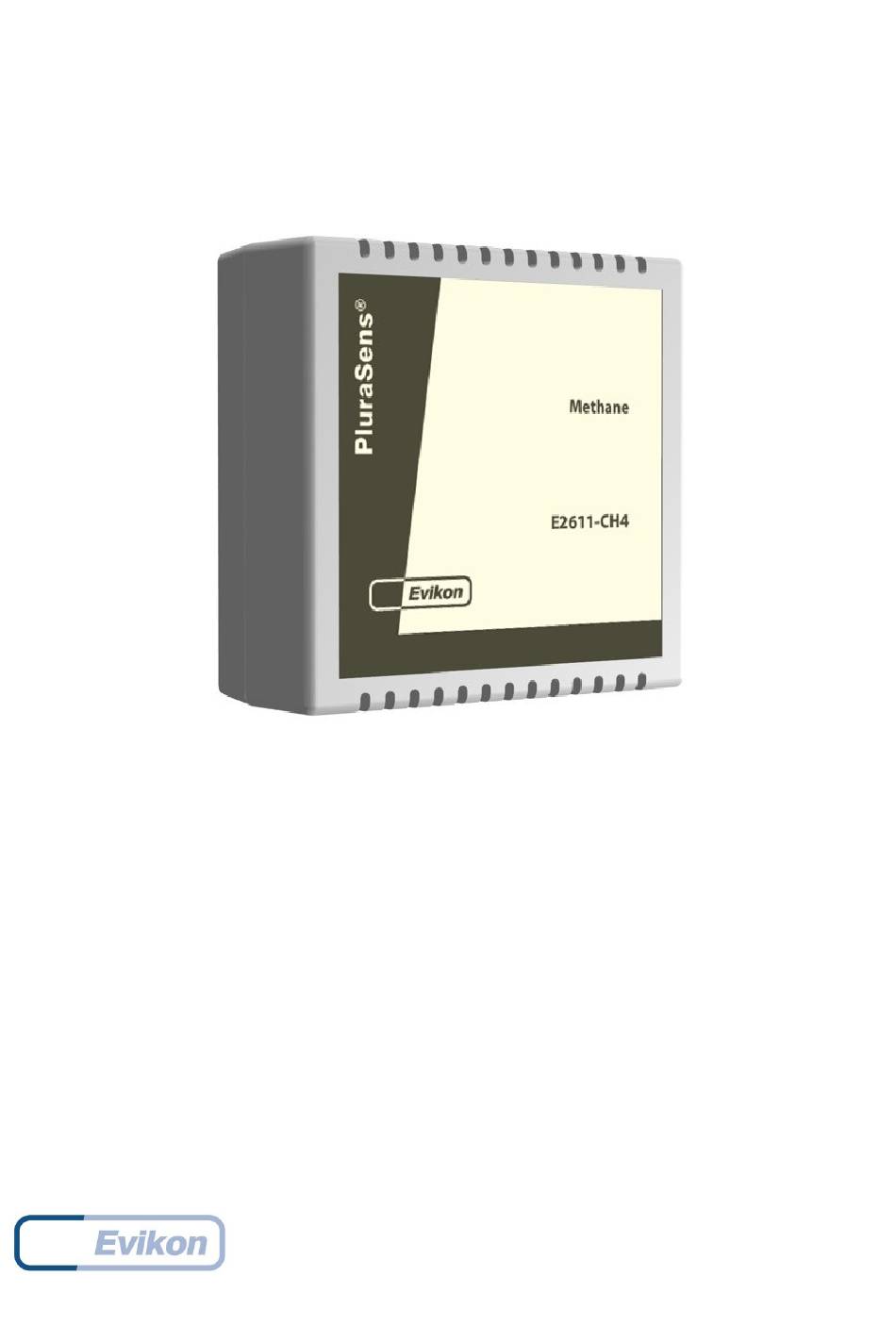

- Page 1 ® PluraSens Methane Detector-Transmitter E2611-CH4 User Manual...
-
Page 2: Table Of Contents
E2611-CH4 Rev 21.06.2021 Table of contents Methane Specifications Product description Safety requirements Operating conditions Installation guidelines Installation and connections Correct and incorrect cabling for 24 VAC Operation Maintenance Calibration Delivery set Order code for E2611-CH4 options Configuring Return to default settings RS485 communication interface Modbus registers (0-based, decimal format) Factory settings... -
Page 3: Methane
E2611-CH4 Rev 21.06.2021 Methane Colorless flammable gas, widely used as a fuel. Synonyms: Marsh Gas, Natural Gas, Carbon tetrahydride, Hydrogen carbide Chemical formula Molar weight Relative gas density (to air) 0.55 Conversion 1 ppm = 0.65 mg/m Boiling point −161.49 °C Low explosive limit (LEL), % vol. -
Page 4: Specifications
E2611-CH4 Rev 21.06.2021 Specifications Sampling method Diffusion Sensor type Metal Oxide Semiconductor Detection range Up to 100% LEL Resolution 0,1% LEL Response time ~ 60 seconds Sensor lifetime >5 years Calibration interval 12 months Operating temperature -40...+70 °C 11...30 VDC (default), Power supply 24 VAC or 90...265 VAC as options Power consumption... -
Page 5: Product Description

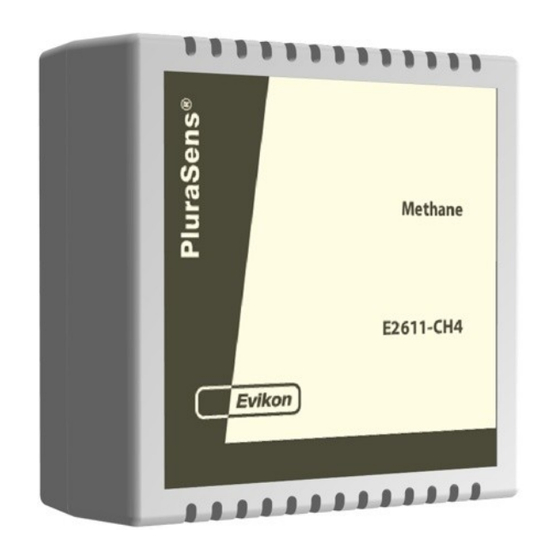

E2611-CH4 Rev 21.06.2021 Product description Methane detector-transmitter E2611-CH4 is intended for early detection of leakages or accumulation of methane in indoor spaces. The instrument is based on a fully calibrated and temperature compensated semiconductor metal-oxide (MOS) gas sensor with high repeatability, stability and long lifetime. -
Page 6: Operating Conditions
E2611-CH4 Rev 21.06.2021 Operating conditions The device should be used in a non-hazardous (non-ATEX -rated) indoor area at the atmospheric pressure ±10%, <95 %RH, without condensation, and in a basic electromagnetic environment, where the latter is defined in EN 61326-1. Metal-oxide sensors cannot properly operate in a zero or low oxygen content atmosphere. -
Page 7: Installation And Connections
E2611-CH4 Rev 21.06.2021 Installation and connections 1. Detach the base of the enclosure by gently pulling along four guiding pins. 2. Attach the base to the wall with two screws (see drawings below). 3. Connect the power supply and external devices to the terminal blocks on the PCB according to the connection diagram below. - Page 8 E2611-CH4 Rev 21.06.2021 Jumpers OUT1 type (open: 4-20 mA; closed 0-10 V) OUT2 type (open: 4-20 mA; closed 0-10 V) Reset Modbus network parameters to default X4 terminals OUT1 4-20 mA / 0-10 V output OUT2 4-20 mA / 0-10 V output 0 V / 24 VAC Neutral (optional) RS485 A / Data + RS485 B / Data -...
- Page 9 E2611-CH4 Rev 21.06.2021 To power the instrument from an external 24 V power source, connect terminals 0 V and +U to the source. If an integrated mains power supply module is used, connect terminals L and N to the mains. NOTE! If the instrument is powered from mains, connect to 0 V and +U terminals only light external loads, which consume less than 30 mA in total, as the integrated mains supply module capacity is limited.
-
Page 10: Correct And Incorrect Cabling For 24 Vac
E2611-CH4 Rev 21.06.2021 Correct and incorrect cabling for 24 VAC... -
Page 11: Operation
E2611-CH4 Rev 21.06.2021 Operation For best stability, the gas detector should be powered permanently. If the instrument is left for a long time in an unpowered state, then after initial power-on the metal-oxide gas sensor needs some time to heat up and burn adsorbed contaminants. So for the first tens of seconds of a few minutes, an alarm activation may be possible. -
Page 12: Order Code For E2611-Ch4 Options
E2611-CH4 Rev 21.06.2021 Order code for E2611-CH4 options E2611 options Order code Integrated 90...265 V mains power supply module E2611-CH4-230 Integrated 24 VAC power supply module E2611-CH4-24VAC Configuring Gas detector E2611 shares all functionalities of the PluraSens® multifunctional transmitter platform. The features and options include: Digital output change rate limiting filter ●... -
Page 13: Rs485 Communication Interface
E2611-CH4 Rev 21.06.2021 RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU Modbus registers (0-based, decimal format) Reg Description Supported values 1 Hardware version Read-only 2 Software version... -
Page 14: Factory Settings
E2611-CH4 Rev 21.06.2021 215 Switch delay for RE1 0...1000 s, default 0 216 Switch delay for RE2 0...1000 s, default 0 217 Min on/off time for RE1 0...1000 s, default 0 218 Min on/off time for RE2 0...1000 s, default 0 219 Control logic for relay RE1 0:_, 1:_↓↑・P, 2:・P↑↓_, 3:_↑・P↓_, 4:・P↓_↑・P 220 Control logic for relay RE2... -
Page 15: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
