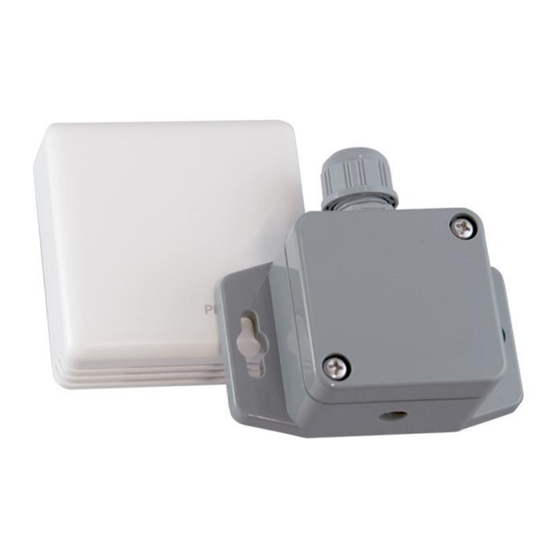

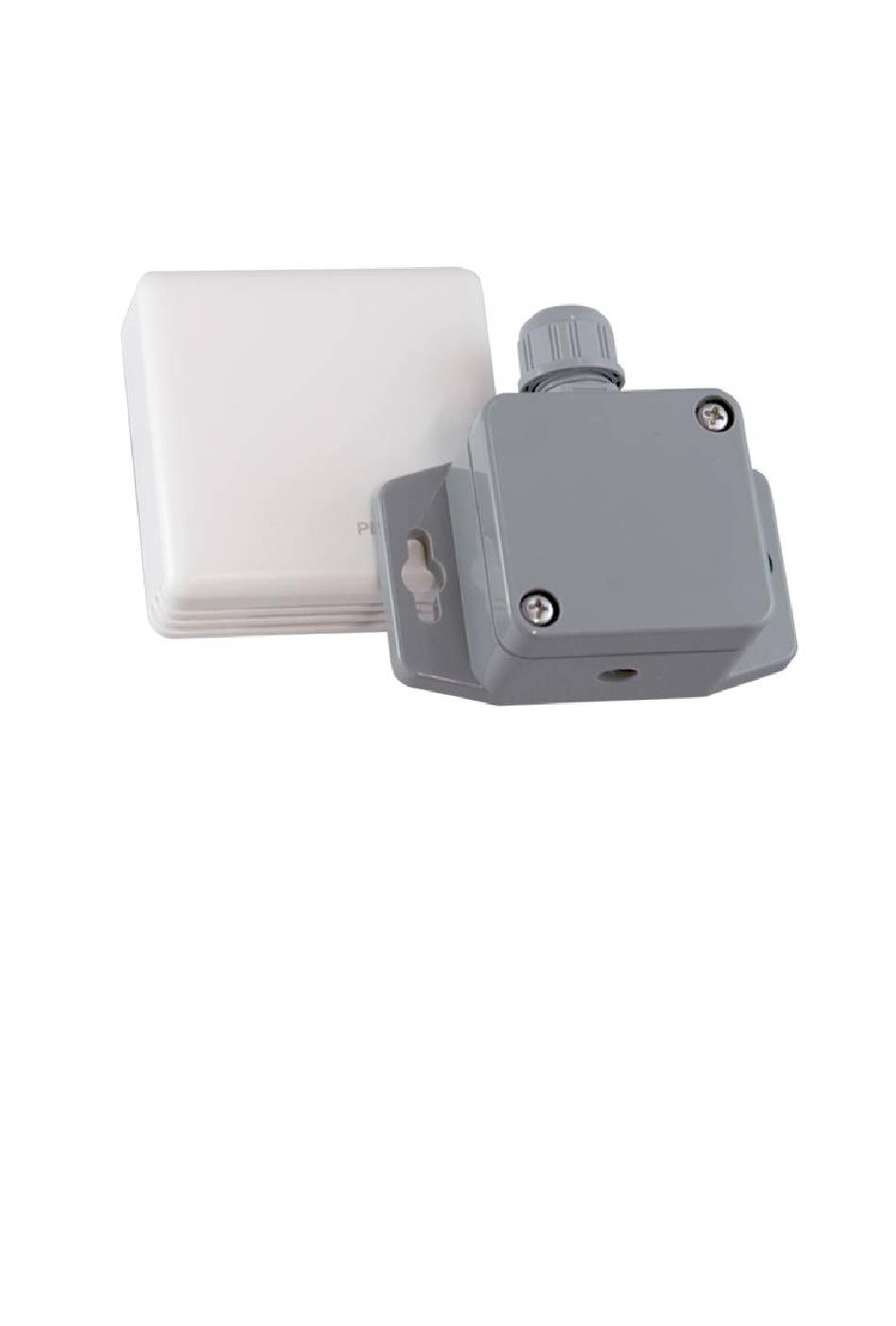

- Page 1 Nitrogen Dioxide Transmitter E2615-NO User Manual...
-
Page 2: Table Of Contents
E2615-NO Rev 24.08.2022 Table of contents Nitrogen Dioxide Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Electrical connections Operation Maintenance Calibration Delivery set Order code for E2615-NO2 options Warranty Manufacturer contacts... -
Page 3: Nitrogen Dioxide
E2615-NO Rev 24.08.2022 Nitrogen Dioxide A Colorless toxic gas, relatively insoluble in water. When exposed to oxygen (including air), nitric oxide is converted into nitrogen dioxide. Chemical formula Molar weight Relative gas density (to air) 1.59 Conversion 1 ppm = 1.88 mg/m Boiling point 21.2 °C Flammability... -
Page 4: Specifications
E2615-NO Rev 24.08.2022 Specifications Sensor type Electrochemical cell Sampling method Diffusion Detection range 0-30 ppm Max. overload 150 ppm Response time T90 ≤ 25 s Sensor lifetime ≥ 2 years Calibration interval 6 months Sensitivity drift < ± 20% in 5 years Power supply 24 VDC ±... -
Page 5: Product Description
E2615-NO Rev 24.08.2022 Product description E2615 series gas transmitters are easy-to-install and easy-to-use instruments. The devices utilize novel fully calibrated gas sensors with excellent repeatability, stability, and long lifetime. E2615 series provides analog output with user-selectable signal type, 4-20 mA or 0-10 V. The version of your transmitter is marked on the package. -
Page 6: Installation Guidelines
E2615-NO Rev 24.08.2022 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN 60079-29-2 and EN 45544-4 are also recommended for further instructions and related information about the installation. -
Page 7: Mounting Dimensions
E2615-NO Rev 24.08.2022 Mounting dimensions The IP65 instrument sensor is equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. NOTE! Never stab or press the filter near its center where the sensor is located since this may damage the sensor. -
Page 8: Electrical Connections
E2615-NO Rev 24.08.2022 Electrical connections The terminals on the E2615 series devices are suitable for a wide range of wires with a cross-section of 0.2...1.5 mm . We recommend to strip the wire end by 8...9 mm and use wire end sleeves. To connect the wire, loosen the screw, insert the wire end into the terminal hole and tighten the screw. -
Page 9: Operation
E2615-NO Rev 24.08.2022 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 30 minutes. Make sure that the transmitter is properly mounted and the external devices connected. Place the lid back and fix it with the screws. -
Page 10: Delivery Set
E2615-NO Rev 24.08.2022 Delivery set ● Transmitter E2615 Mounting accessories: ● 2 screws with plastic dowels ○ Order code for E2615-NO options E2615 options Order code IP20 enclosure E2615-NO -IP20 IP65 enclosure E2615-NO -IP65... -
Page 11: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 9, Tartu 50411 Estonia info@evikon.eu...
