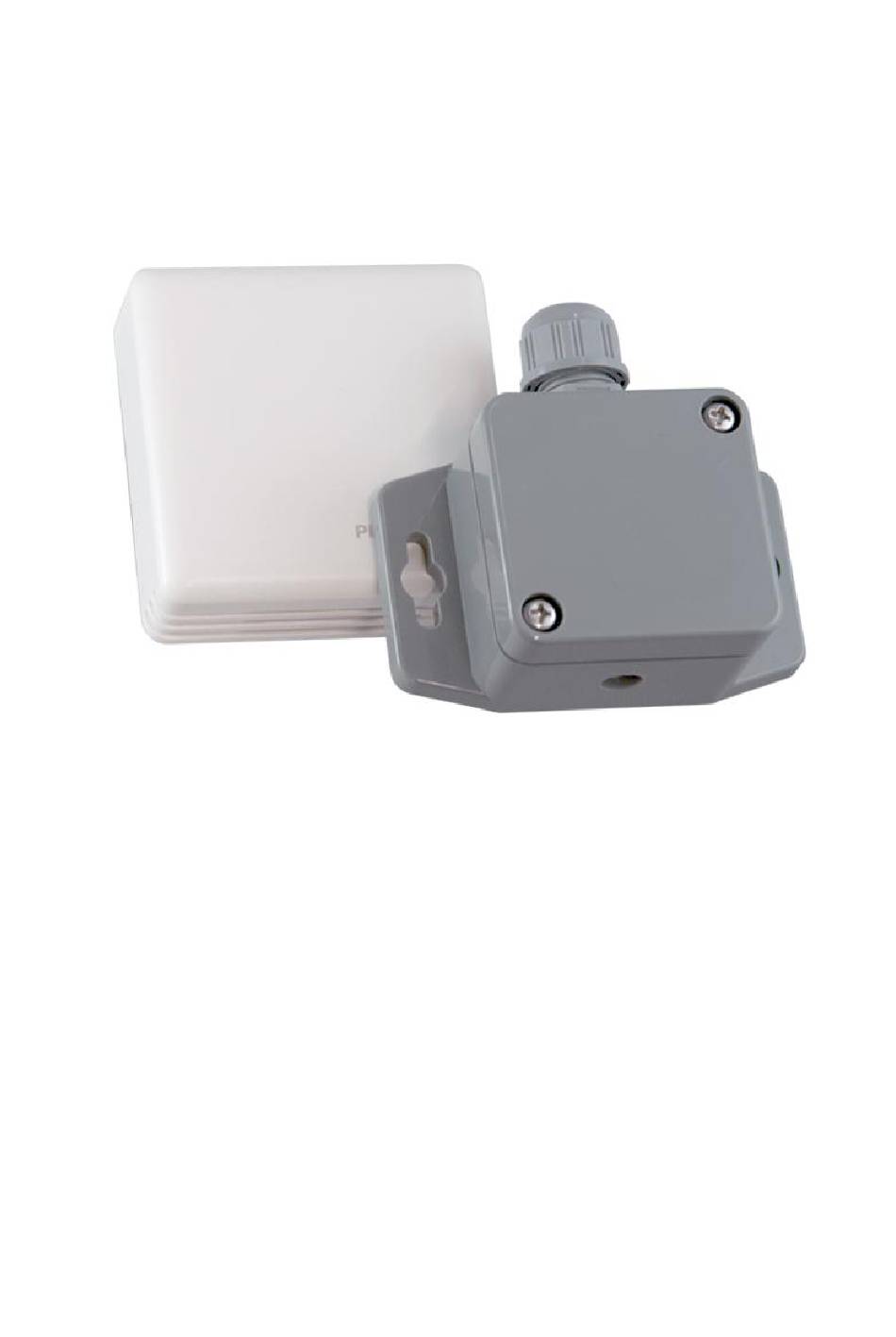

- Page 1 Carbon Monoxide Transmitter E2615-CO User Manual...
-
Page 2: Table Of Contents
E2615-CO Rev 24.08.2022 Table of contents Carbon Monoxide Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Electrical connections Operation Maintenance Calibration Delivery set Order code for E2615-CO options Warranty Manufacturer contacts... -
Page 3: Carbon Monoxide
E2615-CO Rev 24.08.2022 Carbon Monoxide Carbon Monoxide is a colorless, odorless, and tasteless gas that is highly toxic. Synonyms: Carbonous oxide, Carbon (II) oxide, Flue gas, Monoxide. Chemical formula Molar weight Relative gas density (to air) 0.97 Conversion 1 ppm = 1.15 mg/m Boiling point −191.5 °C... -
Page 4: Specifications
E2615-CO Rev 24.08.2022 Specifications Sensor type Electrochemical cell Sampling method Diffusion Detection range 0-300 ppm Maximum overload 2000 ppm Response time T90 < 30 s Sensor lifetime ≥ 7 years Sensitivity drift < ± 20% in 5 years Power supply 24 VDC ±... -
Page 5: Product Description
E2615-CO Rev 24.08.2022 Product description E2615 series gas transmitters are easy-to-install and easy-to-use instruments. The devices utilize novel fully calibrated gas sensors with excellent repeatability, stability, and long lifetime. E2615 series provide analog output with user-selectable signal type, 4-20 mA or 0-10 V. -
Page 6: Installation Guidelines
E2615-CO Rev 24.08.2022 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN 60079-29-2 and EN 45544-4 are also recommended for further instructions and related information about the installation. -
Page 7: Mounting Dimensions
E2615-CO Rev 24.08.2022 Mounting dimensions The IP65 instrument sensor is equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. NOTE! Never stab or press the filter near its center where the sensor is located since this may damage the sensor. -
Page 8: Electrical Connections
E2615-CO Rev 24.08.2022 Electrical connections The terminals on the E2615 series devices are suitable for a wide range of wires with a cross-section of 0.2...1.5 mm . We recommend to strip the wire end by 8...9 mm and use wire end sleeves. -
Page 9: Operation
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not immerse the device in water or any cleaning media. Calibration E2615-CO transmitters have been calibrated by the Manufacturer with standard gas mixtures before delivery. Please contact your dealer for more information. -
Page 10: Delivery Set
E2615-CO Rev 24.08.2022 Delivery set ● Transmitter E2615 Mounting accessories: ● 2 screws with plastic dowels ○ Order code for E2615-CO options E2615 options Order code IP20 enclosure E2615-CO-IP20 IP65 enclosure E2615-CO-IP65... -
Page 11: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 9, Tartu 50411 Estonia info@evikon.eu...
